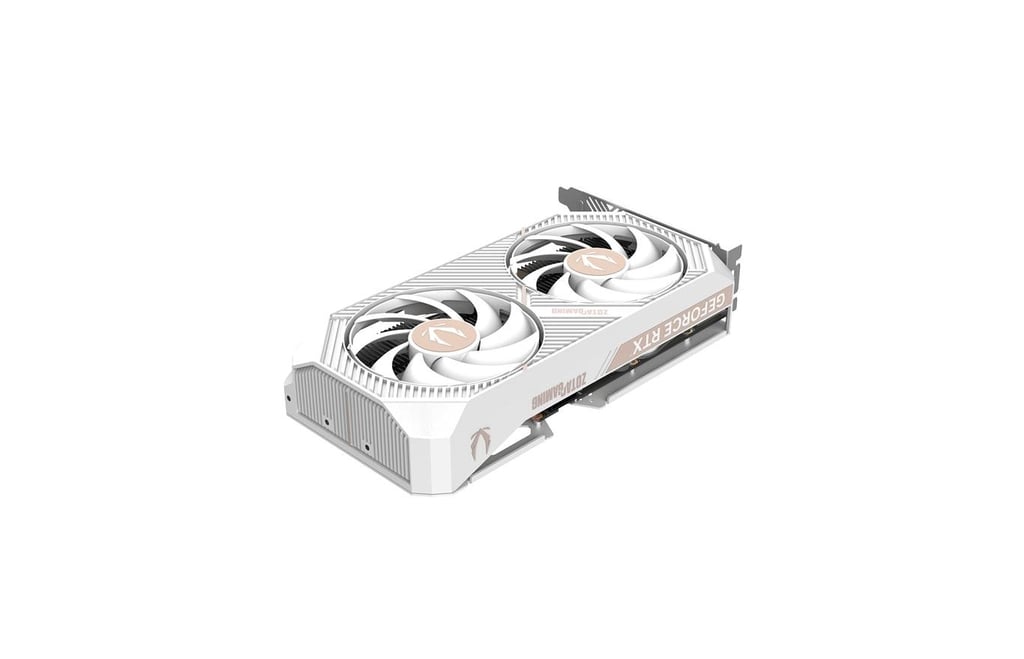

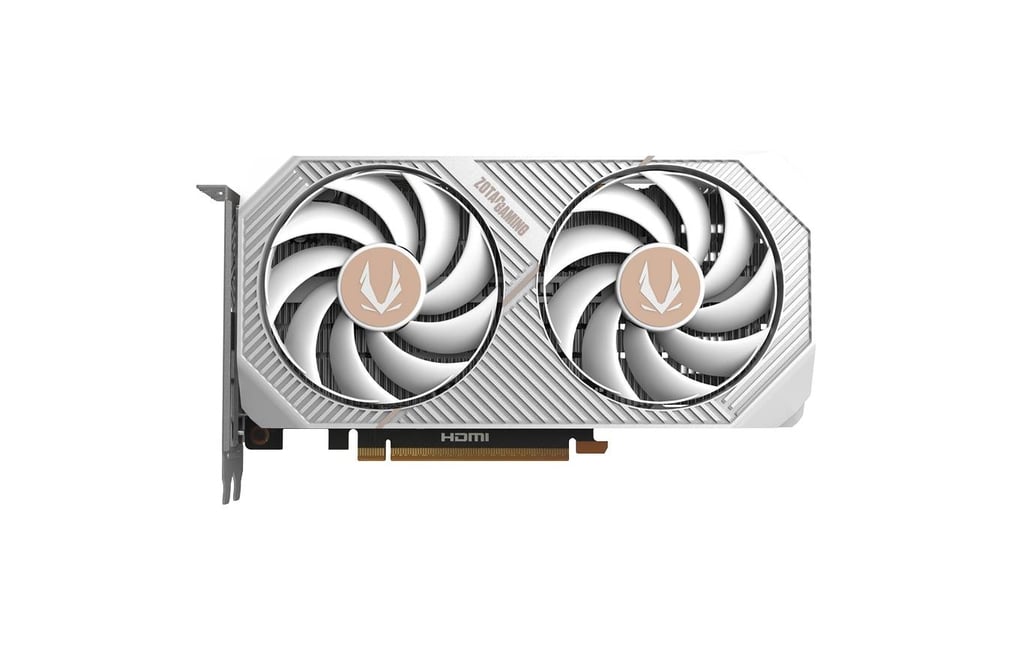

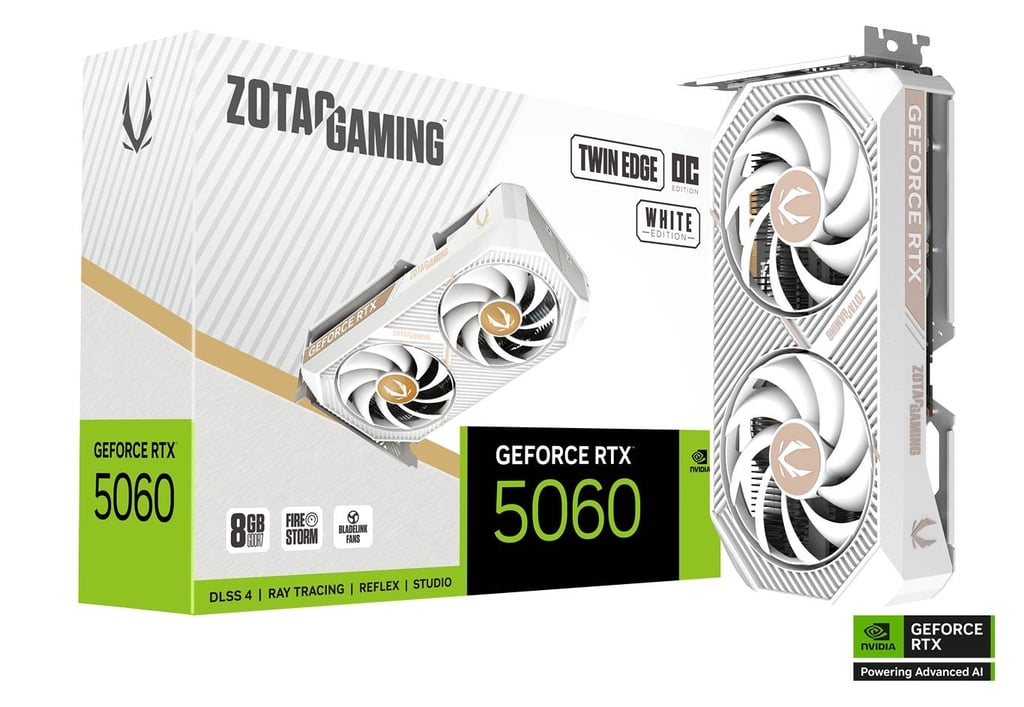

ZOTAC GAMING GeForce RTX 5060 Twin Edge OC White Edition 8GB GDDR7 Graphics Card

The ZOTAC GAMING GeForce RTX 5060 Twin Edge OC White Edition is a compact factory-overclocked graphics card powered by the latest NVIDIA Blackwell architecture and featuring DLSS 4 AI technology. Designed for smooth gaming, streaming, AI applications, and creative workloads, it delivers excellent performance with 8GB of high-speed GDDR7 memory.

Featuring 3840 CUDA cores, dual BladeLink fans, IceStorm cooling technology, metal backplate, and an SFF-ready compact design, the RTX 5060 Twin Edge OC White Edition provides powerful performance with efficient cooling and a premium white aesthetic for modern gaming builds.

Key Features

• NVIDIA GeForce RTX 5060 GPU
• NVIDIA Blackwell Architecture
• DLSS 4 AI Rendering Technology
• 8GB GDDR7 High-Speed Memory
• 3840 CUDA Cores
• Factory Overclocked Edition
• 5th Generation Tensor Cores
• 4th Generation Ray Tracing Cores
• Dual 90mm BladeLink Fans
• IceStorm Cooling System
• FREEZE Fan Stop Technology
• Metal Backplate
• SFF-Ready Compact Design
• PCI Express 5.0 Interface
• NVIDIA Game Ready Drivers
• NVIDIA Studio Drivers
• ZOTAC FireStorm Utility Support

Complete Technical Specifications

• Brand: ZOTAC GAMING
• Model: GeForce RTX 5060 Twin Edge OC White Edition
• SKU: ZT-B50600Q-10A
• GPU: NVIDIA GeForce RTX 5060
• Architecture: NVIDIA Blackwell
• CUDA Cores: 3840
• Engine Boost Clock: 2527 MHz
• Video Memory: 8GB GDDR7
• Memory Bus: 128-bit
• Memory Speed: 28 Gbps
• Interface: PCI Express 5.0 x8
• Cooling: Dual Fan IceStorm Cooling
• Fan Type: Dual 90mm BladeLink Fans
• Fan Technology: FREEZE Fan Stop
• Backplate: Metal Backplate
• Ray Tracing: 4th Generation RT Cores
• Tensor Cores: 5th Generation Tensor Cores
• Maximum Displays: 4
• HDCP Support: 2.3
• DirectX: DirectX 12 Ultimate
• OpenGL: 4.6
• Vulkan: Vulkan 1.4
• Power Consumption: 145W
• Recommended PSU: 550W
• Power Connector: 1 × 8-Pin PCIe
• Slot Size: 2 Slot
• Card Dimensions: 220.5 × 120.25 × 41.6 mm
• Color: White
• Operating System: Windows 10 64-bit / Windows 11 64-bit

GPU

NVIDIA GeForce RTX 5060

Video Memory

8GB GDDR7

CUDA Cores

3840 CUDA Cores

Boost Clock

2527 MHz

Memory Speed

28 Gbps

Interface

PCI Express 5.0 x8

Display Outputs

• 3 × DisplayPort 2.1b with UHBR20
• 1 × HDMI 2.1b

Supports:

• Up to 4K 480Hz
• Up to 8K 165Hz with DSC

Compatibility

Compatible with:

• Desktop PCs with PCI Express slot
• Windows 10 64-bit
• Windows 11 64-bit
• Gaming PCs
• Content Creation Systems
• Small Form Factor (SFF) Builds

Recommended:

• 550W Power Supply

Package Includes

• ZOTAC GAMING GeForce RTX 5060 Twin Edge OC White Edition Graphics Card
• User Manual

Warranty

3 Years Limited Warranty
