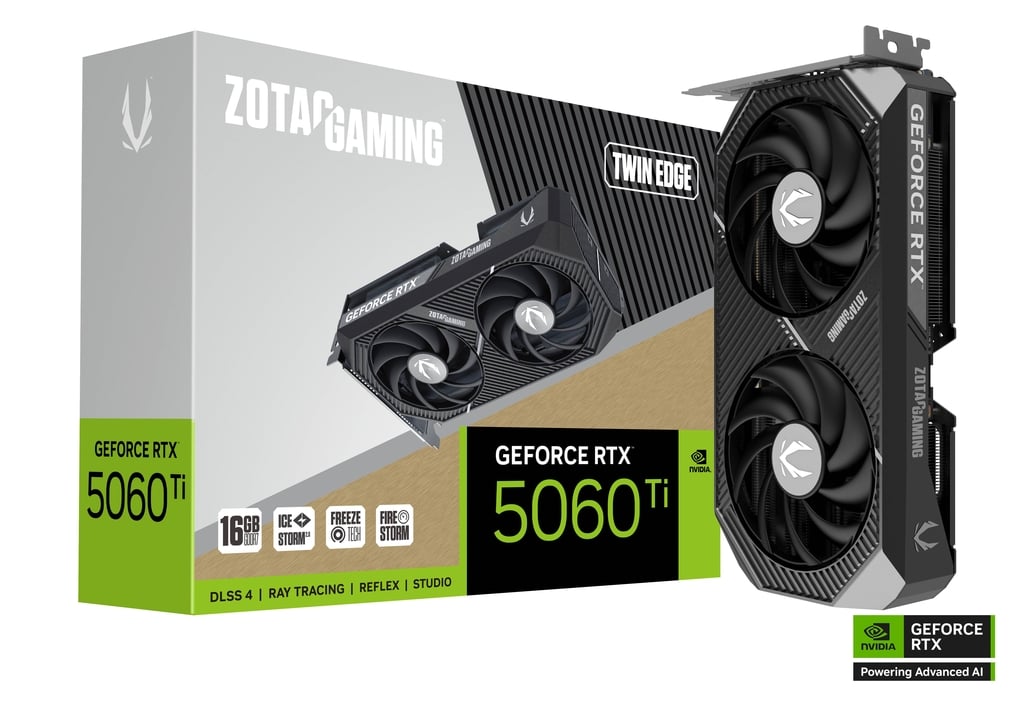

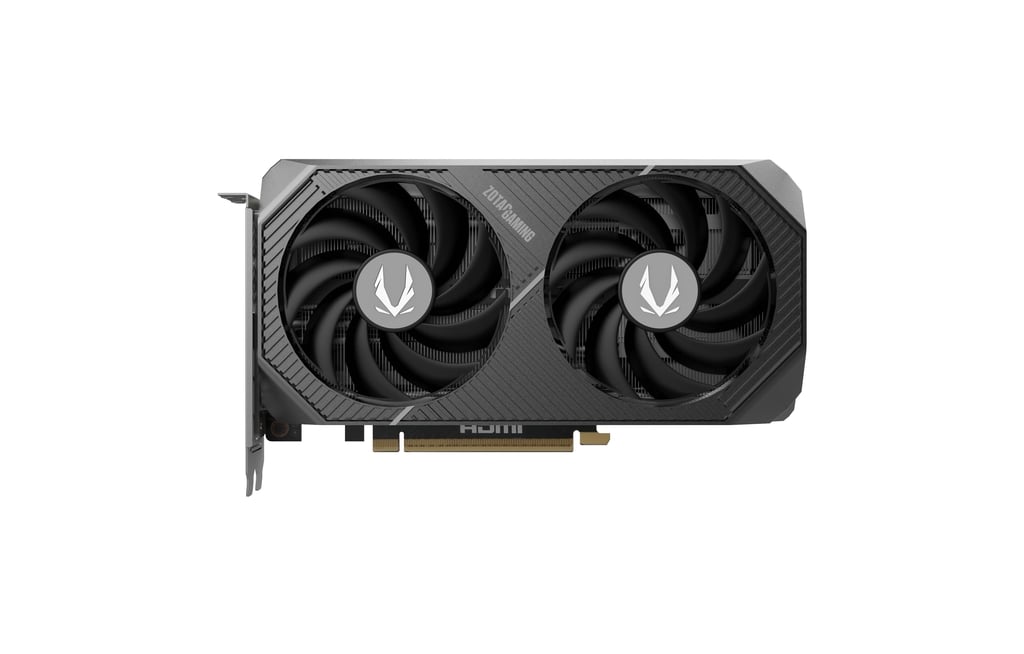

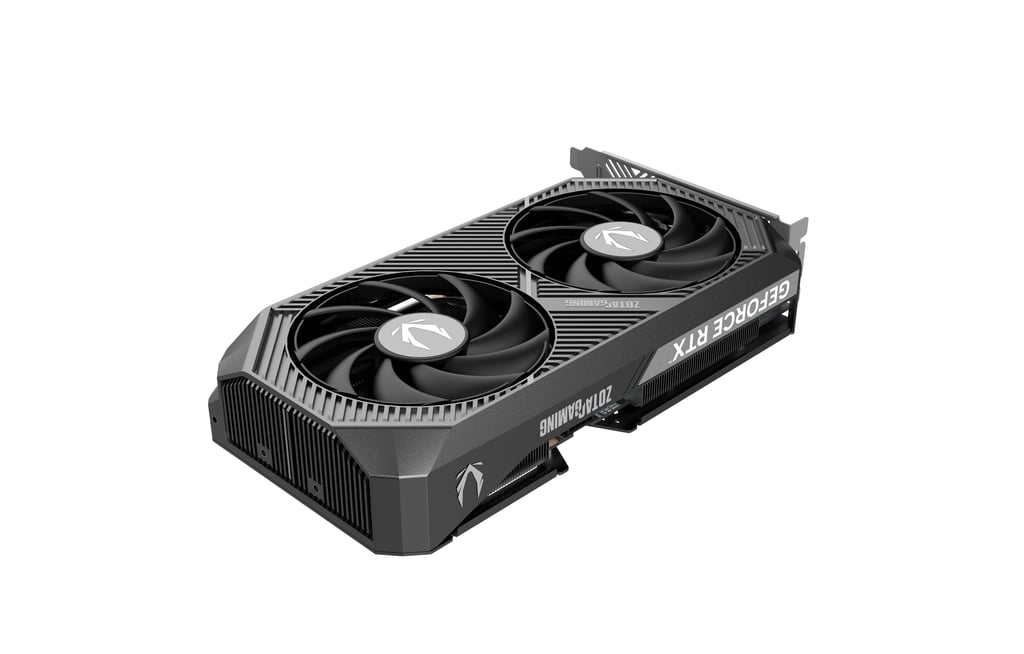

ZOTAC GAMING GeForce RTX 5060 Ti 16GB Twin Edge OC GDDR7 Graphics Card

The ZOTAC GAMING GeForce RTX 5060 Ti 16GB Twin Edge OC is a compact, factory-overclocked graphics card powered by the latest NVIDIA Blackwell architecture with DLSS 4 AI technology. Designed for gamers, creators, and AI applications, it delivers excellent performance with 16GB of next-generation GDDR7 memory and advanced ray tracing capabilities.

Featuring IceStorm 2.0 cooling, dual BladeLink fans, FREEZE Fan Stop technology, metal backplate, and an SFF-ready compact footprint, this graphics card provides high-end performance while maintaining efficient cooling and compatibility with modern gaming systems.

Key Features

• NVIDIA GeForce RTX 5060 Ti GPU
• NVIDIA Blackwell Architecture
• DLSS 4 AI Upscaling & Frame Generation
• 16GB GDDR7 High-Speed Memory
• 4608 CUDA Cores
• Factory Overclocked Performance
• 5th Generation Tensor Cores
• 4th Generation Ray Tracing Cores
• IceStorm 2.0 Advanced Cooling
• Dual 90mm BladeLink Fans
• FREEZE Fan Stop Technology
• Metal Backplate
• Compact Twin Edge Design
• SFF-Ready Graphics Card
• PCI Express 5.0 Interface
• NVIDIA Game Ready & Studio Drivers
• ZOTAC FireStorm Utility Support

Complete Technical Specifications

• Brand: ZOTAC GAMING
• Model: GeForce RTX 5060 Ti 16GB Twin Edge OC
• SKU: ZT-B50620H-10A
• GPU: NVIDIA GeForce RTX 5060 Ti
• Architecture: NVIDIA Blackwell
• CUDA Cores: 4608
• AI Performance: 759 AI TOPS
• Engine Boost Clock: 2602 MHz
• Video Memory: 16GB GDDR7
• Memory Bus: 128-bit
• Memory Speed: 28 Gbps
• Interface: PCI Express 5.0 x8
• Cooling System: IceStorm 2.0
• Fan Design: Dual 90mm BladeLink Fans
• Fan Technology: FREEZE Fan Stop
• Backplate: Metal Backplate
• Ray Tracing: 4th Generation RT Cores
• Tensor Cores: 5th Generation Tensor Cores
• Maximum Displays: 4 Displays
• HDCP Support: 2.3
• DirectX: DirectX 12 Ultimate
• OpenGL: 4.6
• Power Consumption: 180W
• Recommended PSU: 600W
• Power Connector: 1 × 8-Pin PCIe
• Slot Size: 2 Slot
• Card Dimensions: 220.5 × 120.25 × 41.6 mm
• Operating System: Windows 10 64-bit / Windows 11 64-bit

GPU

NVIDIA GeForce RTX 5060 Ti

Video Memory

16GB GDDR7

CUDA Cores

4608 CUDA Cores

Boost Clock

2602 MHz

Memory Speed

28 Gbps

Interface

PCI Express 5.0 x8

Display Outputs

• 3 × DisplayPort 2.1b with UHBR20
• 1 × HDMI 2.1b

Supports:

• Up to 4K 480Hz
• Up to 8K 165Hz with DSC

Compatibility

Compatible with:

• Desktop PCs with PCI Express slot
• Windows 10 64-bit
• Windows 11 64-bit
• Gaming PCs
• Content Creation Systems
• Small Form Factor (SFF) Builds

Recommended:

• 600W Power Supply

Package Includes

• ZOTAC GAMING GeForce RTX 5060 Ti 16GB Twin Edge OC Graphics Card
• User Manual

Warranty

3 Years Limited Warranty
