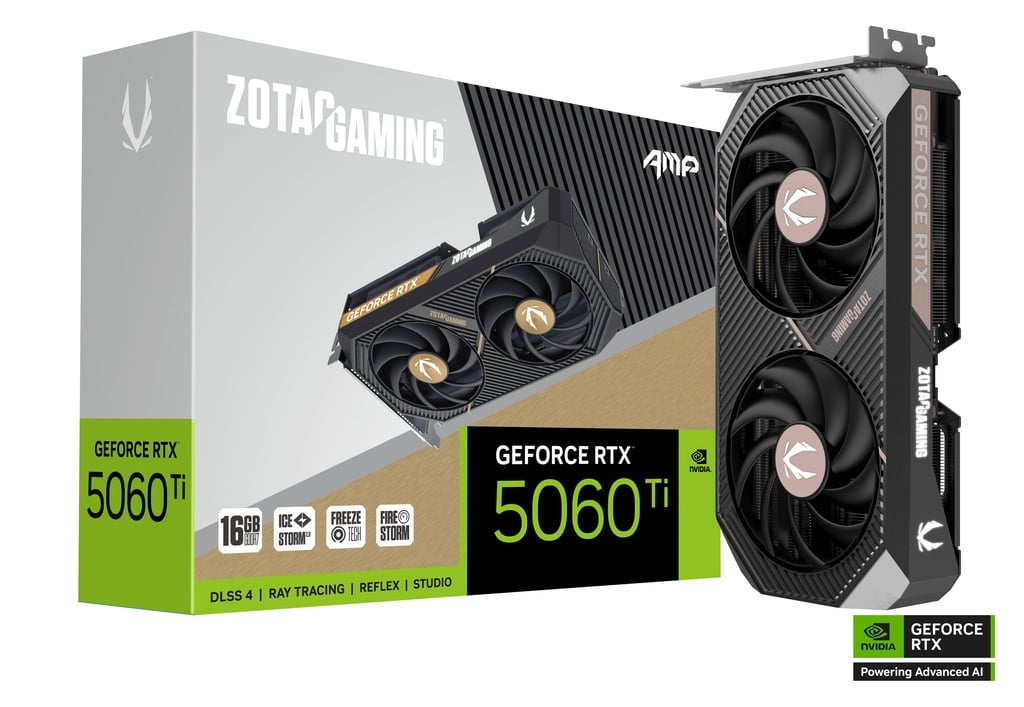

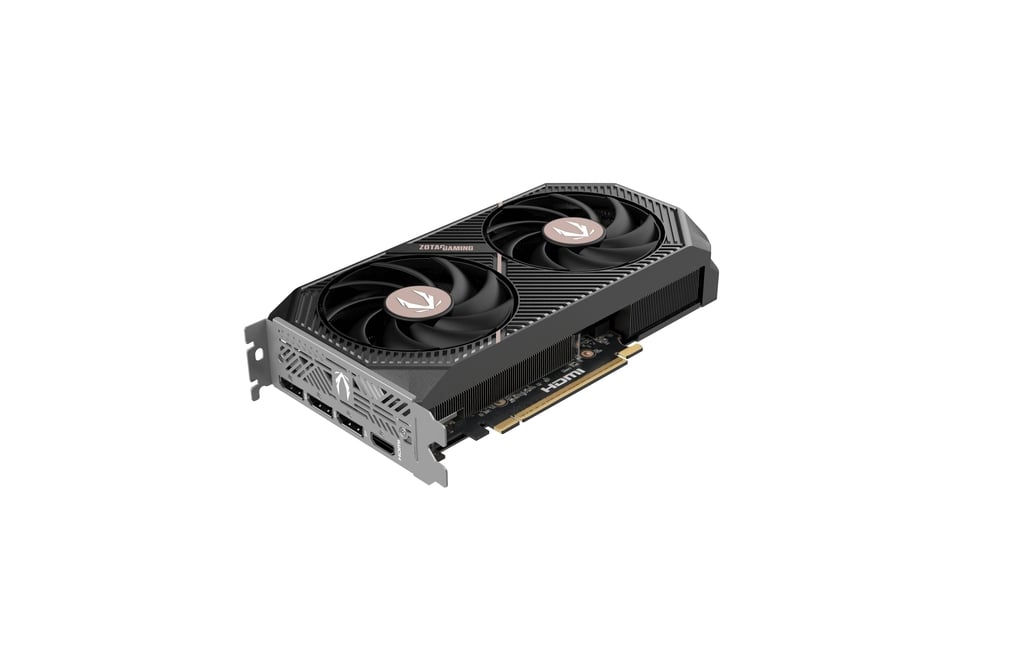

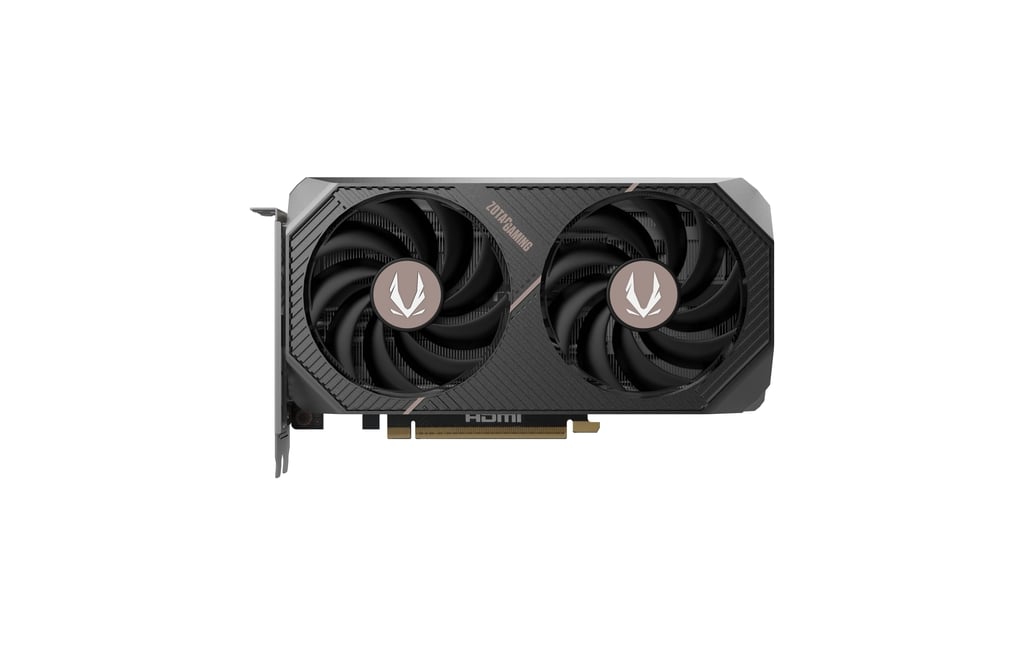

ZOTAC GAMING GeForce RTX 5060 Ti 16GB AMP GDDR7 Graphics Card

The ZOTAC GAMING GeForce RTX 5060 Ti 16GB AMP is a high-performance graphics card powered by the latest NVIDIA Blackwell architecture and enhanced with DLSS 4 AI technology. Designed for advanced gaming, content creation, AI workloads, and high-resolution applications, it delivers exceptional performance with 16GB of next-generation GDDR7 memory.

Featuring a factory-overclocked boost clock, IceStorm 2.0 cooling, dual BladeLink fans, FREEZE Fan Stop technology, metal backplate, and compact SFF-ready design, the RTX 5060 Ti AMP provides powerful performance in a space-efficient form factor.

Key Features

• NVIDIA GeForce RTX 5060 Ti GPU
• NVIDIA Blackwell Architecture
• DLSS 4 AI Rendering Technology
• 16GB GDDR7 High-Speed Memory
• 4608 CUDA Cores
• Factory Overclocked Edition
• 5th Generation Tensor Cores
• 4th Generation Ray Tracing Cores
• IceStorm 2.0 Advanced Cooling
• Dual 90mm BladeLink Fans
• FREEZE Fan Stop Technology
• Metal Backplate
• White LED Lighting
• Compact SFF-Ready Design
• PCI Express 5.0 Interface
• NVIDIA Game Ready & Studio Drivers
• ZOTAC FireStorm Utility Support

Complete Technical Specifications

• Brand: ZOTAC GAMING
• Model: GeForce RTX 5060 Ti 16GB AMP
• SKU: ZT-B50620F-10M
• GPU: NVIDIA GeForce RTX 5060 Ti
• Architecture: NVIDIA Blackwell
• CUDA Cores: 4608
• AI Performance: 759 AI TOPS
• Engine Boost Clock: 2632 MHz
• Video Memory: 16GB GDDR7
• Memory Bus: 128-bit
• Memory Clock: 28 Gbps
• Interface: PCI Express 5.0 x8
• Cooling System: IceStorm 2.0
• Fan Design: Dual 90mm BladeLink Fans
• Fan Technology: FREEZE Fan Stop
• Backplate: Metal Backplate
• Ray Tracing: 4th Generation RT Cores
• Tensor Cores: 5th Generation Tensor Cores
• Maximum Displays: 4 Displays
• HDCP Support: 2.3
• DirectX: DirectX 12 Ultimate
• OpenGL: 4.6
• Power Consumption: 180W
• Recommended PSU: 650W
• Power Connector: 1 × 8-Pin PCIe
• Slot Size: 2 Slot
• Card Dimensions: 220.5 × 120.25 × 41.6 mm
• Operating System: Windows 10 64-bit / Windows 11 64-bit

GPU

NVIDIA GeForce RTX 5060 Ti

Video Memory

16GB GDDR7

CUDA Cores

4608 CUDA Cores

Boost Clock

2632 MHz

Memory Speed

28 Gbps

Interface

PCI Express 5.0 x8

Display Outputs

• 3 × DisplayPort 2.1b with UHBR20
• 1 × HDMI 2.1b

Supports:

• Up to 4K 480Hz
• Up to 8K 165Hz with DSC

Compatibility

Compatible with:

• Desktop PCs with PCI Express slot
• Windows 10 64-bit
• Windows 11 64-bit
• Gaming PCs
• Creator Workstations
• AI Applications

Recommended:

• 650W Power Supply

Package Includes

• ZOTAC GAMING GeForce RTX 5060 Ti 16GB AMP Graphics Card
• User Manual

Warranty

3 Years Limited Warranty
(Region dependent)
