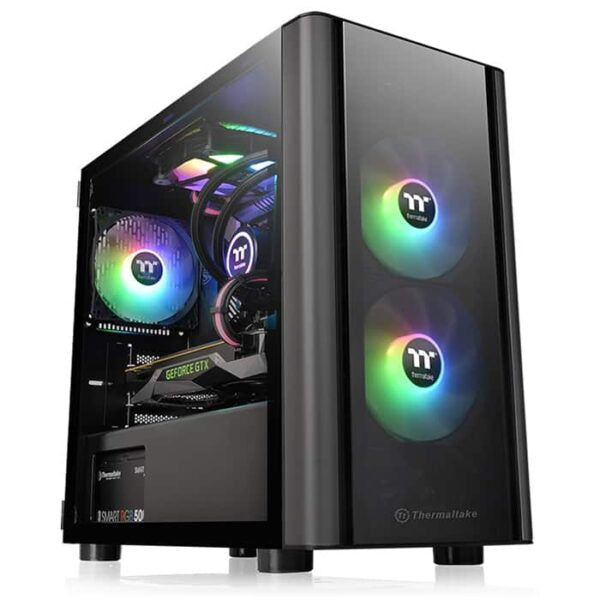

Thermaltake V150 Tempered Glass Micro Case , Black
Thermaltake V150 Tempered Glass Micro Case , Black
Couldn't load pickup availability
Introducing the Thermaltake V150 Tempered Glass Micro Chassis, the latest addition to the renowned V Series lineup. Crafted to be compact in size, this case accommodates a standard Micro ATX motherboard. The V150 TG sets a new precedent by offering an affordable entry point into the V Series and is tailored for those who are just beginning their PC-building journey.
This micro case holds strong appeal for users eager to showcase their interior components in stunning full RGB splendor. Meticulous consideration has been given to hardware expansion and ventilation during the design process. Equipped with two 4mm tempered glass windows and a preinstalled 120mm standard rear fan, the V150 TG goes further by accommodating two 140mm fans at the front, one 140mm fan on the top, and includes a full-length PSU cover, ensuring exceptional overall performance. This makes it an ideal choice for gamers and enthusiasts alike.
Built-in PSU Cover Featuring a full-length power supply cover, the V150 TG offers ample space for cable management. This not only conceals cables but also maintains clear airflow for both hard drives and the PSU.
Tempered Glass Window The V150 TG boasts dual 4mm tempered glass panels at the front and left sides, offering increased durability and scratch resistance when compared to standard acrylic. Furthermore, the larger window design allows you to proudly showcase your components in all their full RGB glory.
Superior Dust Filtration An easily attachable magnetic fan filter on the top panel ensures straightforward dust filtration and particulate protection. Additional fan filters located at the chassis base deliver excellent defense against dirt and dust.
Expandability and Ventilation The V150 offers impressive expandability. It supports a CPU cooler with a maximum height of 155mm, horizontal VGA placement of up to 350mm in length (without a front fan), and a power supply with a length of up to 220mm. The chassis is optimized for excellent cooling capabilities and includes a preinstalled 120mm standard rear fan. Users have the option to install two 140mm fans at the front and one 140mm fan on the top. The V150 TG also provides support for various All-in-One CPU cooling configurations, including 120mm, 240mm, and 280mm radiators at the front, and a 120mm radiator at the rear.
Specifications,
| P/N | CA-1R1-00S1WN-00 |
| SERIES | V Series |
| MODEL | V150 TG |
| CASE TYPE | Micro Case |
| DIMENSION (H X W X D) | 398 x 208 x 440 mm (15.67 x 8.19 x 17.32 inch) |
| NET WEIGHT | 5.45 kg / 12 lbs |
| SIDE PANEL | 4mm Tempered Glass x 2 (Left & Front) |
| COLOR | Exterior & Interior: Black |
| MATERIAL | SPCC |
| COOLING SYSTEM | Rear (exhaust) : 1 x 120 x 120 x 25 mm fan (1000rpm, 16dBA) |
|
DRIVE BAYS -ACCESSIBLE -HIDDEN |
2 x 2.5" ; 2 x 3.5” |
| EXPANSION SLOTS | 4 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX) |
| I/O PORT | 1 x USB 3.0, 2 x USB 2.0, 1 x HD Audio, |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Front: 2 x 120mm or 1 x 120mm 2 x 140mm or 1 x 140mm Top: 1 x 120mm, 1 x 140mm, Rear: 1 x 120mm |
| RADIATOR SUPPORT | Front: 1 x 240mm or 1 x 120mm 1 x 280mm or 1 x 140mm Rear: 1 x 120mm |
| CLEARANCE | CPU cooler height limitation: 155mm VGA length limitation: 350mm(Without Front Fan) PSU length limitation: 220mm |
