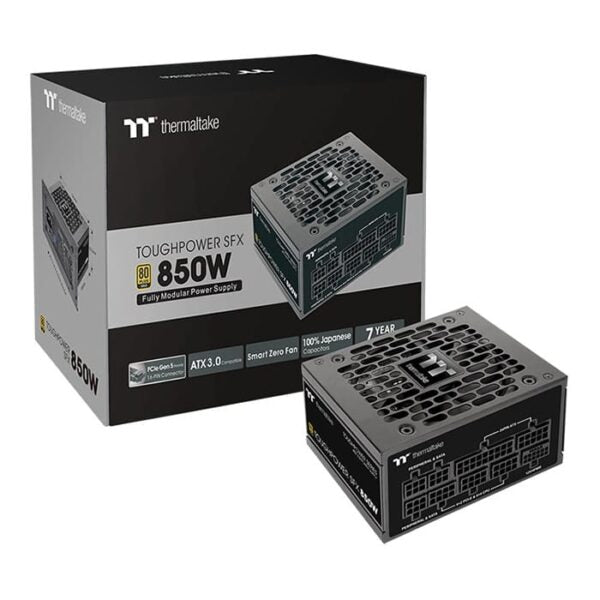

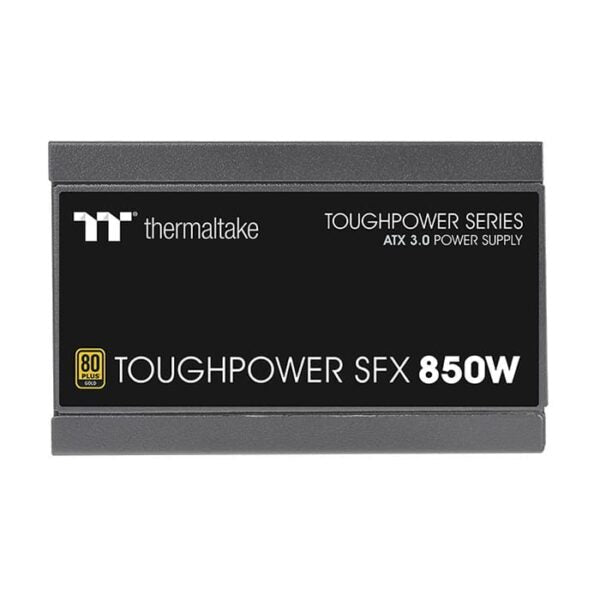

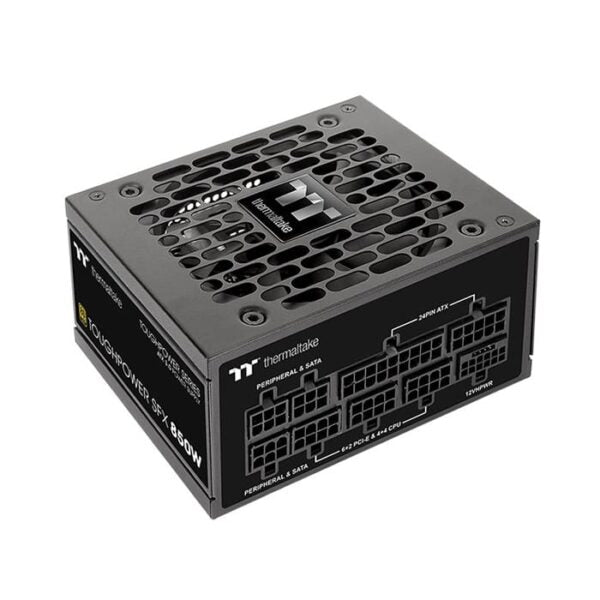

Thermaltake Toughpower SFX 850W Gold – TT Premium Edition power supply

Be Ready for Next Generation GPUs

Designed with a native PCIe 12+4pin modular connector, the Toughpower SFX series is built for next-gen PCIe Gen 5.0 graphic cards, and is fully compatible with Intel ATX 3.0 specifications. The fully modular Toughpower SFX series comes in 1000W, 850W, and 750W, and is built to deliver 80 PLUS Gold efficiency. The compact size of Toughpower SFX Gold series perfectly fits in any ATX or ITX case.

No Matter the Case Size, We’ve Got You Covered

The Toughpower SFX 850W Gold comes with an SFX to ATX adapter bracket as an accessory which gives users more options when choosing the ideal case for the build.

Fully Compatible with Intel ATX 3.0 Specifications

Toughpower SFX series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.

PCIe Gen 5.0 Ready

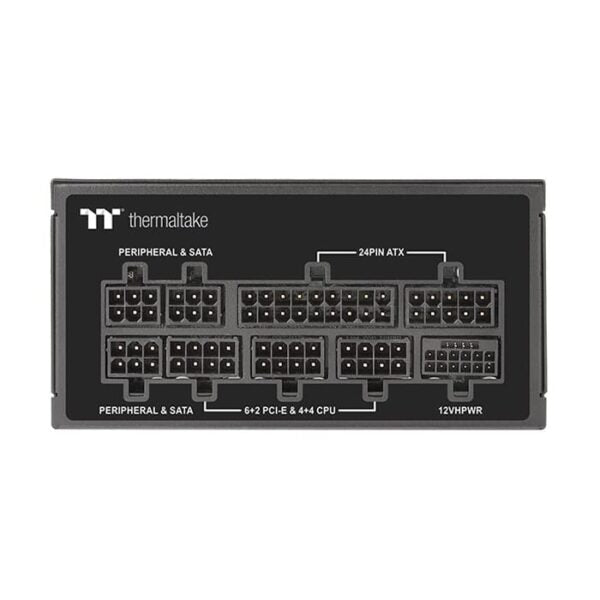

Toughpower SFX series comes with a 16pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.
The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of the SFX 850W can deliver up to 450W for PCIe 5.0 graphics cards.

Made to Comply with the Latest Graphics Cards

As the power consumption of graphics cards has increased, so has their demand for power. The SFX series is designed to support NVIDIA and AMD graphics cards, ready to supply the graphics card according to their different ways of connections.

Be Smart, Stay Quiet

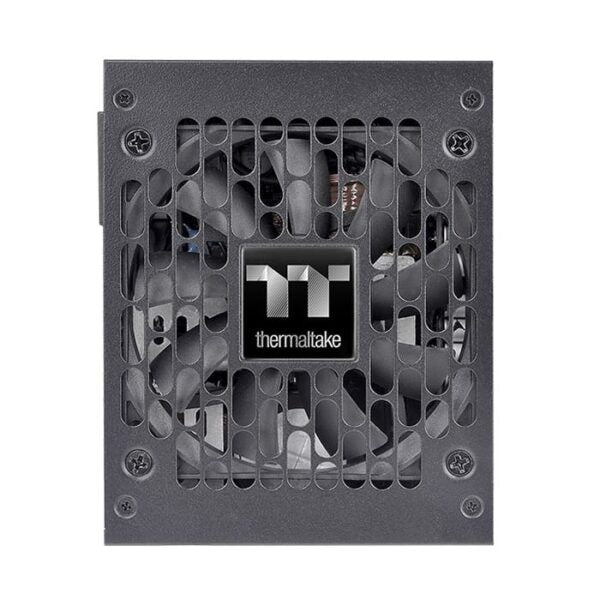

The fans audible noise is under 29.8 dB at 100% operation, this creates the perfect balance between silence and superior cooling. Furthermore, with the Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise.

＜30mV Low Ripple Noise Design

Top-end build quality with low ripple noise. All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.

Extremely Strict Voltage Regulation ＜±2%

The voltage regulation, more strict than Intel’s standard +5%,-7% for major rails and ±10% for -12V, is set to no more than ±2% for major rails, providing steady clean power through exceptional voltage stability.

17ms and up Hold Up Time

During a power interruption, your computer might shut down or reboot. We make sure the SFX series will deliver at least 17ms at 100% workload, without system reboot or resetting.

More Stable than Ever

100% high quality Japanese 105°C/221°F electrolytic capacitors provides great durability as well as offering the highest stability, while remaining reliable.

Specification,

P/N                                                   PS-STP-0850FNFAGx-1
WATTS                                             850W
MODEL                                           SFX-850AH8FKG
MAX. OUTPUT CAPACITY               850W
COLOR                                             Black
DIMENSION                                    ( W / H / D ) 125mm(W)x63.5mm(H)x100mm(D)
WEIGHT                                                     1 KG
PFC (POWER FACTOR CORRECTION)         Active PFC
POWER GOOD SIGNAL                              100-500 msec
HOLD UP TIME                                           > 17msec at 100% of full load
INPUT CURRENT                                         10A Max.
INPUT FREQUENCY                                     RANGE 50 - 60Hz
INPUT VOLTAGE                                           100V – 240V~
OPERATING TEMPERATURE                          0°C to + 45°C
OPERATING HUMIDITY                                 5% to 85%,non-condensing
STORAGE TEMPERATURE                             -40°C to + 70°C
STORAGE HUMIDITY                                    5% to 95%, non-condensing
COOLING SYSTEM                                        92mm FDB Fan
EFFICIENCY Meet 80 PLUS®Gold at 115Vac input.
MTBF 100,000 hrs minimum
SAFETY APPROVAL CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI
PCI-E 6+2PIN 2
PCIE 12+4PIN 1
