Thermaltake Toughpower GF3 1200W Gold FM – TT Premium Edition Non light PSU
Thermaltake Toughpower GF3 1200W Gold FM – TT Premium Edition Non light PSU
Couldn't load pickup availability
Toughpower GF3 1200W Gold – TT Premium Edition Enhanced
Crafted for PCIe Gen 5.0 Readiness! Boasting a native PCIe 12+4pin modular connector, the Toughpower GF3 series stands as the pinnacle of design tailored for forthcoming PCIe 5.0 graphics cards while seamlessly adhering to Intel ATX 3.0 specifications. Embracing complete modularity, the Toughpower GF3 series spans power levels from 1650W down to 750W, consistently delivering 80 PLUS Gold efficiency. With an unwavering commitment to optimal performance, the Toughpower GF3 1200W encompasses all vital attributes, including a <30mV low ripple noise design, uncompromising voltage regulation of < ±2%, a hold-up time surpassing 17 milliseconds, all powered by the inclusion of 100% high-quality Japanese capacitors and premium components to ensure an uninterrupted and steadfast power supply.
Precise Adherence to Intel PSDG ATX 3.0 Specifications
The Toughpower GF3 series flawlessly aligns with Intel ATX 3.0 Specifications, accommodating up to 200% power excursion, achieving 70% efficiency at low loads, and adhering to required power supply timing standards. Within the GF3 series, support for up to 3x GPU power excursion and 2x total power excursion is seamlessly integrated.
Tailored for the Latest Graphics Cards
In tandem with the increased power consumption of modern graphics cards, the GF3 series is meticulously designed to bolster NVIDIA and AMD graphics cards. It stands ready to supply the graphics cards according to their diverse connection requirements.

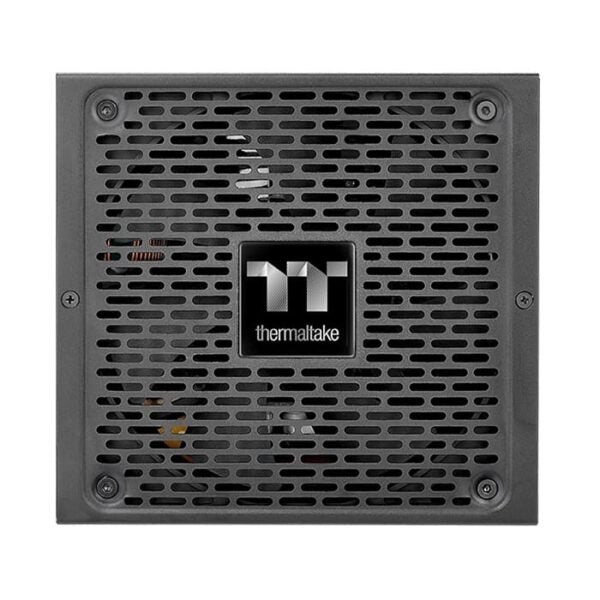

Silent Operation with Ultra Quiet Smart Zero Fan
Featuring the ingenious Smart Zero Fan technology, the fan remains dormant until the load surpasses 30% of the power supply, effectively curtailing fan noise and optimizing cooling.

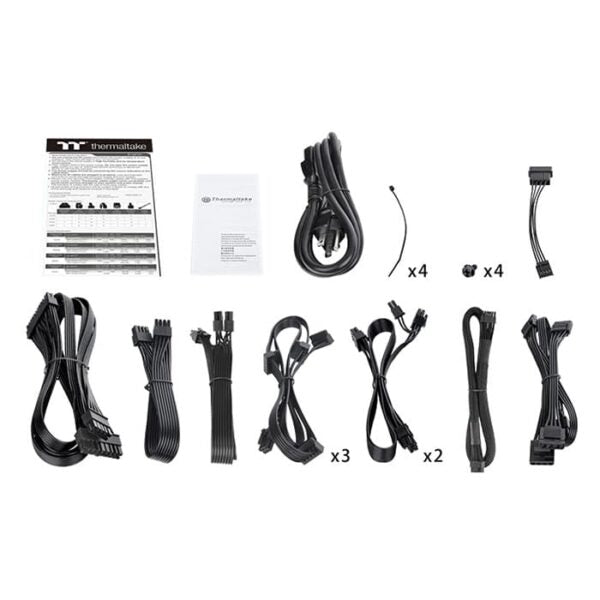

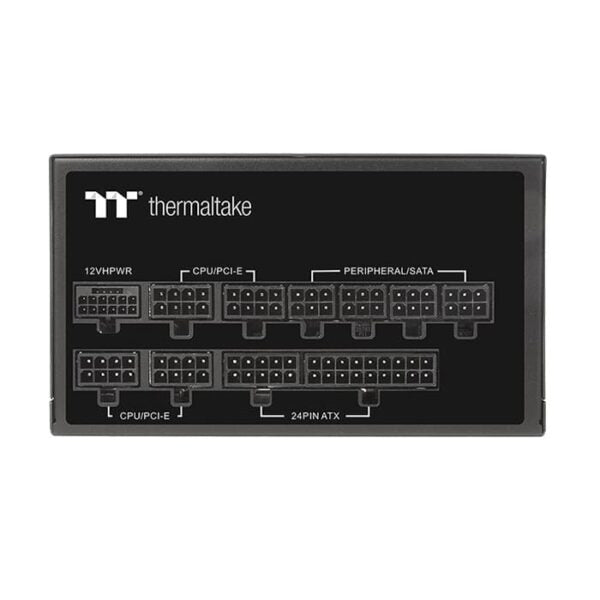

Modular Advantage with Low-Profile Flat Cabling
Presenting a selection of fully modular low-profile flat black cables, the Toughpower GF3 series streamlines cable management, diminishes clutter, and augments airflow within the chassis, all while providing advantageous voltage to the system.
Specification,
| P/N | PS-TPD-1200FNFAGK-4 |
| WATTS | 1200W |
| MODEL | TPD-1200AH3FCG |
| MAX. OUTPUT CAPACITY | 1200W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 150mm(W) x 86mm(H) x 160mm(D) |
| WEIGHT | 1.88 KG |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-150 msec |
| HOLD UP TIME | > 17msec at 100% of full load |
| INPUT CURRENT | 15.0A / 7.0A |
| INPUT FREQUENCY RANGE | 50/60Hz |
| INPUT VOLTAGE | 100V – 240V~ |
| OPERATING TEMPERATURE | 0°C to + 40°C |
| OPERATING HUMIDITY | 20% to 90%,non-condensing |
| STORAGE TEMPERATURE | -20°C to + 70°C |
| STORAGE HUMIDITY | 5% to 95%, non-condensing |
| COOLING SYSTEM | 13.5cm fluid-bearing fan |
| EFFICIENCY | Meet 80 PLUS®Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/CCC |
| PCI-E 6+2PIN | PCIe 6+2pin X 4 PCIe 12+4pin X 1 |
| PROTECTION | OCP, OVP, UVP, OPP, SCP, OTP |
