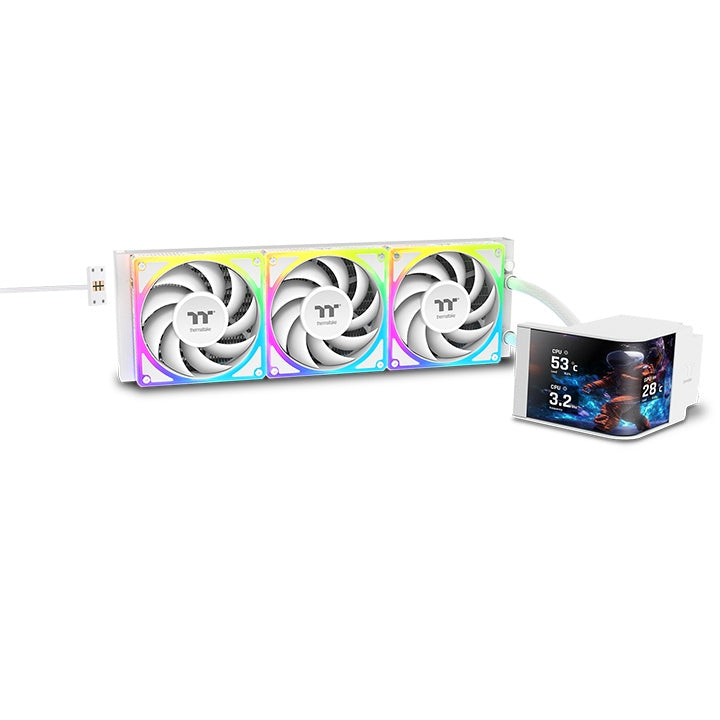

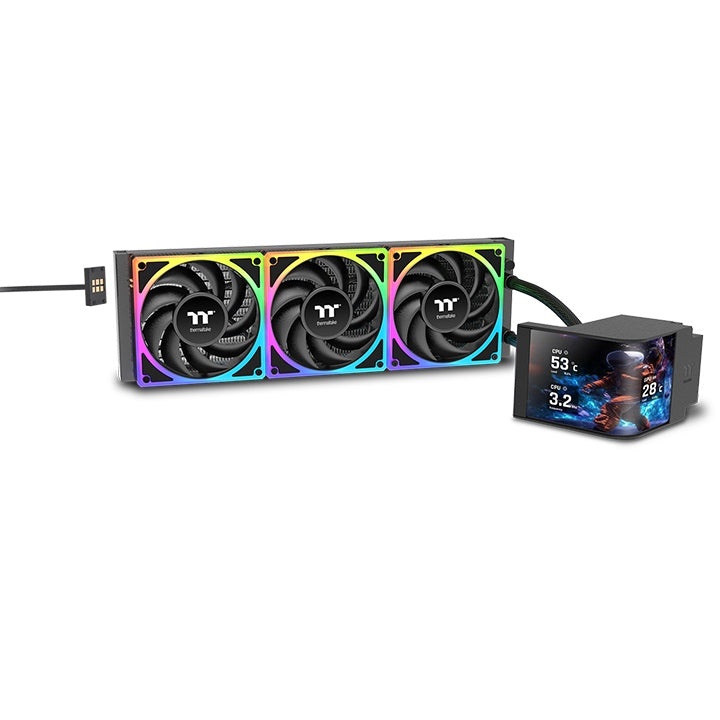

Thermaltake MAGCurve 360 Ultra ARGB Sync AIO Liquid Cooler

The Thermaltake MAGCurve 360 Ultra ARGB Sync AIO Liquid Cooler combines high-performance 360mm liquid cooling with a 6.67-inch curved AMOLED display. The display supports a 2240 × 1080 resolution, real-time system monitoring, weather and time information, images, videos, and customizable visuals through Thermaltake software.

It features three TOUGHFAN EX 120 ARGB Sync fans with a swappable fan blade design and MagForce 2.0 magnetic connections, providing flexible airflow direction and simplified cable management. The 27mm slim aluminum radiator and 20mm thickened copper chamber are designed to provide efficient heat transfer while maintaining a compact radiator profile.

Key Features

• 6.67-inch Curved AMOLED Display
• 2240 × 1080 Display Resolution
• AI Forge Custom Background Creation
• TT RGB PLUS 3.0 Software Support
• TT PlayLink Mobile App Support
• Real-Time System Monitoring
• Local Weather & Time Display
• Image & Video Display Support
• Three TOUGHFAN EX 120 ARGB Sync Fans
• Swappable Fan Blade Design
• MagForce 2.0 Quick Magnetic Connections
• Up to 2500 RPM Fan Speed
• 360mm Radiator
• 27mm Slim Radiator Design
• 20mm Thickened Copper Chamber
• 460mm Rubber Tubing
• 5V Addressable RGB Sync
• ASUS Aura Sync Support
• GIGABYTE RGB Fusion Support
• MSI Mystic Light Sync Support
• ASRock Polychrome Support

Complete Technical Specifications

• Brand: Thermaltake
• Model: MAGCurve 360 Ultra ARGB Sync
• Product Type: AIO Liquid CPU Cooler
• P/N: CL-W453-PL12SW-A
• CPU Display: 6.67-inch AMOLED
• Display Resolution: 2240 × 1080 (SPR)
• Display Interface: Micro USB to USB (9-Pin)
• System Compatibility: Windows 10 / Windows 11
• Water Block Material: Copper
• Radiator Size: 396 × 120 × 27 mm
• Radiator Material: Aluminum
• Tube Length: 460 mm
• Tube Material: Rubber
• Fan Size: 120 × 120 × 25 mm
• Fan Speed: PWM 500–2500 RPM
• Fan Rated Voltage: 12V / 5V
• Fan Current: 0.27A & 0.72A per fan
• Fan Power Input: 3.24W & 3.6W per fan
• Standard Fan Airflow: 77.60 CFM
• Reverse Fan Airflow: 75.80 CFM
• Standard Fan Static Pressure: 3.95 mm-H₂O
• Reverse Fan Static Pressure: 3.64 mm-H₂O
• Standard Fan Noise: 32.80 dB-A
• Reverse Fan Noise: 35.10 dB-A
• RGB: ARGB
• Fan Connection: MagForce 2.0
• Radiator Size Class: 360mm
• CPU Socket Support: Intel LGA 2066 / 2011-3 / 2011 / 1851 / 1700 / 1200 / 1156 / 1155 / 1151 / 1150
• AMD Socket Support: AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2 / FM1

CPU Compatibility

Intel:

• LGA 2066
• LGA 2011-3
• LGA 2011
• LGA 1851
• LGA 1700
• LGA 1200
• LGA 1156
• LGA 1155
• LGA 1151
• LGA 1150

AMD:

• AM5
• AM4
• AM3+
• AM3
• AM2+
• AM2
• FM2
• FM1

Display

6.67-inch Curved AMOLED

• Resolution: 2240 × 1080
• Real-time system information
• Weather and time
• Images
• Videos
• Custom backgrounds
• AI Forge support
• TT PlayLink support

Fans

3 × TOUGHFAN EX 120 ARGB Sync

• Size: 120 × 120 × 25 mm
• Speed: 500–2500 RPM
• Standard airflow: 77.60 CFM
• Reverse airflow: 75.80 CFM
• Standard static pressure: 3.95 mm-H₂O
• Reverse static pressure: 3.64 mm-H₂O
• Swappable fan blades
• MagForce 2.0 magnetic connection

Radiator

360mm Aluminum Radiator

• Dimensions: 396 × 120 × 27 mm
• Material: Aluminum
• Slim 27mm radiator
• Thickened 20mm copper chamber

Software Support

• Thermaltake TT RGB PLUS 3.0
• TT PlayLink Mobile App
• ASUS Aura Sync
• GIGABYTE RGB Fusion
• MSI Mystic Light Sync
• ASRock Polychrome
