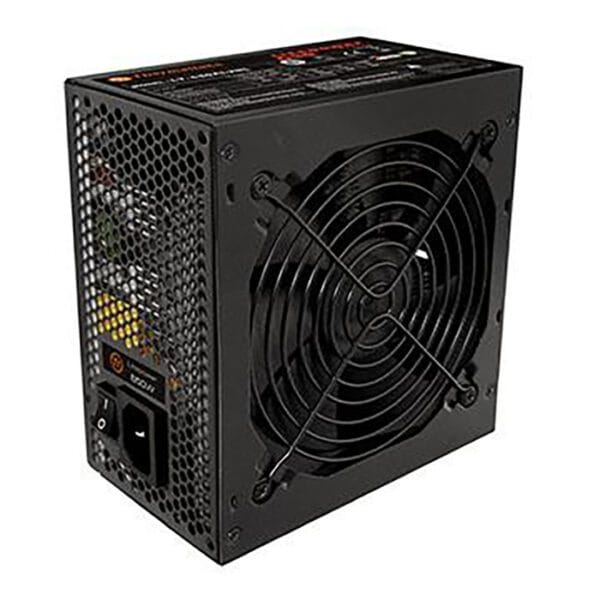

Thermaltake Litepower 650W Power Supply, Non Modular, ATX 2.3 &EPS 80PLUS, Black
Thermaltake Litepower 650W Power Supply, Non Modular, ATX 2.3 &EPS 80PLUS, Black
Couldn't load pickup availability

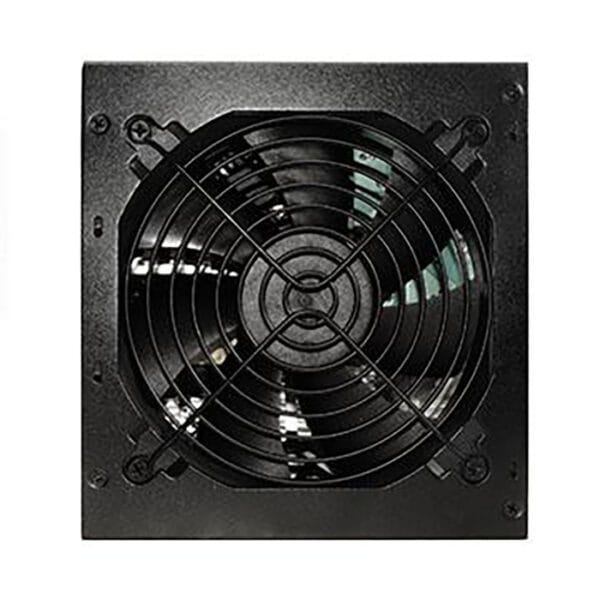

Whisper-Quiet Cooling Fan
Experience efficient cooling performance and noiseless operation with the inclusion of a large 120mm cooling fan.

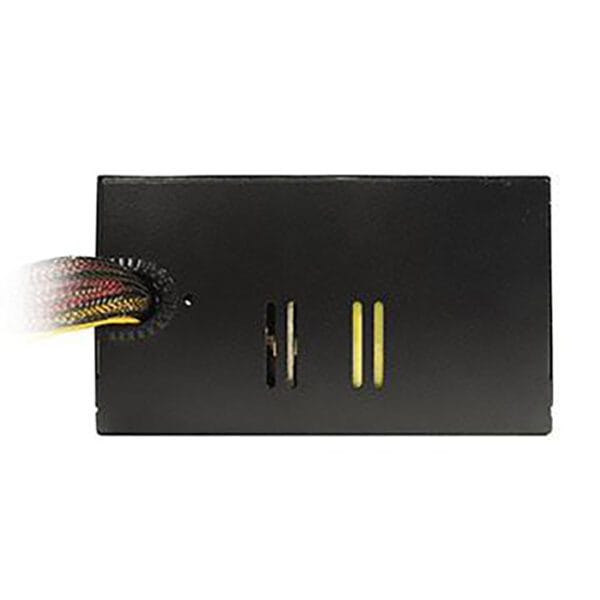

Extended Cable Length
The elongated cables cater to enthusiasts and power users, allowing for meticulous cable routing in optimal positions that eliminate airflow obstructions. This not only enhances the computer system's thermal efficiency but also elevates its visual appeal.
Enhanced Cable Length
The extended cables provide enthusiasts and power users the freedom to route cables in the most suitable locations, preventing airflow hindrance. This substantial improvement contributes to the overall thermal efficiency and aesthetics of the computer system.
Ample and Dedicated +12V Power Output
Litepower 650W features a robust +12V rail, as specified on the left-hand side:
Specification,
| P/N | LT-650P |
| WATTS | 650W |
| RGB FAN | No |
| MODEL | LT-650AL2NL |
| TYPE | ATX 12V 2.3 |
| MAX. OUTPUT CAPACITY | 650W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 150mm x 85.1mm x 141mm |
| PFC (POWER FACTOR CORRECTION) | W/Active PFC |
| POWER GOOD SIGNAL | “Power Good” signal rise time is within 1ms. |
| HOLD UP TIME | The power supply with 80% of Max. load at 230 Vac, 50 Hz should supply regulated DC outputs for at least 16 ms after the loss of the AC input voltage at zero cross. |
| INPUT CURRENT | 6A |
| INPUT FREQUENCY RANGE | 50Hz |
| INPUT VOLTAGE | 230Vac |
| OPERATING TEMPERATURE | 10℃~+40℃ |
| OPERATING HUMIDITY | To 85% relative humidity |
| STORAGE TEMPERATURE | -20℃~+70℃ |
| STORAGE HUMIDITY | To 95% relative humidity |
| COOLING SYSTEM | 120mm Fan: 1600-1900 RPM |
| EFFICIENCY | 70% typical at nominal line, maximum load. |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | TUV, CE, Gost |
| PCI-E 6+2PIN | 6+2pin PCI-E Connector x 2 |
