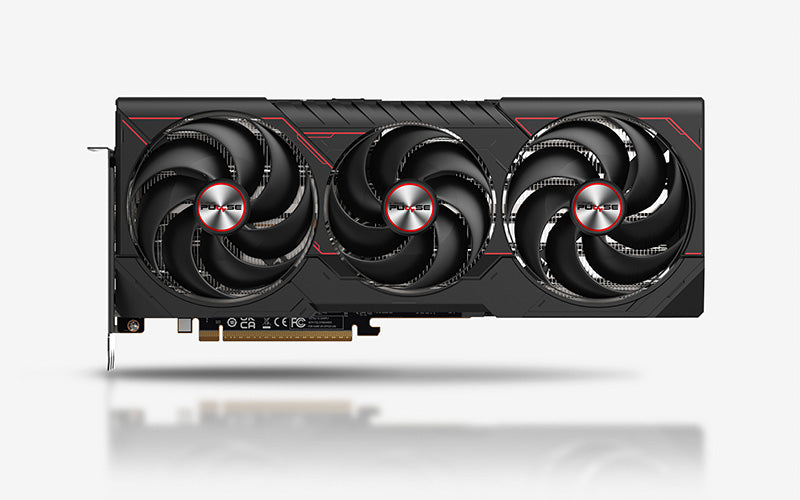

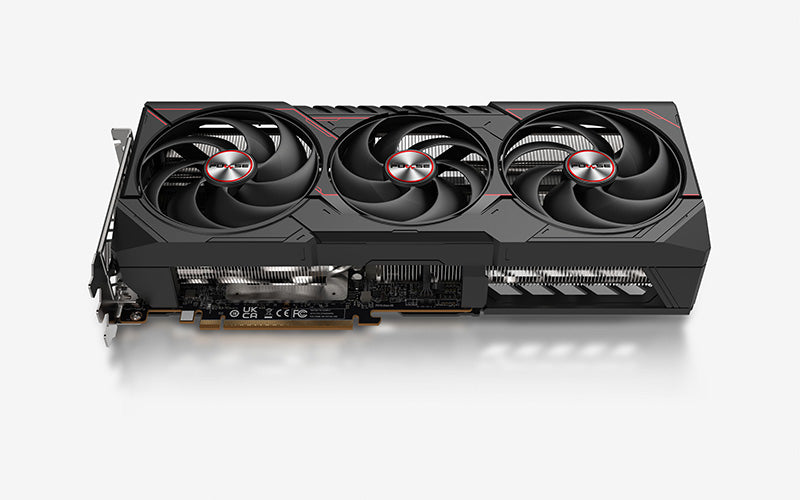

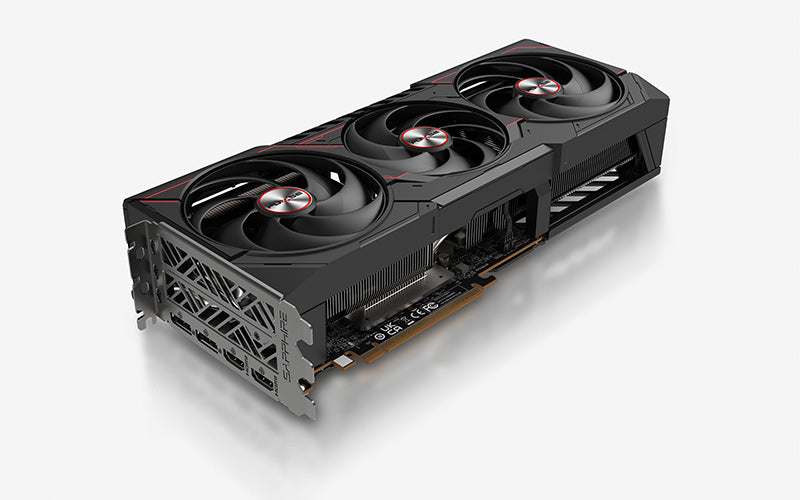

SAPPHIRE PURE AMD Radeon™ RX 9060 XT OC GPU 16GB GDDR6

The SAPPHIRE PURE AMD Radeon™ RX 9060 XT OC GPU delivers high-performance 1440p gaming with AMD RDNA™ 4 architecture and 16GB of GDDR6 memory. It features a 128-bit memory interface, boost clock of up to 3290 MHz, and game clock of up to 2700 MHz.

The card uses SAPPHIRE Dual-X cooling technology with AeroCurve fan blades, Free Flow cooling, optimized composite heatpipes, an integrated cooling module, metal backplate, and dual-ball-bearing fans. It also features ARGB SAPPHIRE logo lighting and external motherboard RGB synchronization.

Key Features

• AMD Radeon™ RX 9060 XT GPU
• AMD RDNA™ 4 Architecture
• 16GB GDDR6 Memory
• 128-bit Memory Interface
• 2048 Stream Processors
• 32 Compute Units
• 32 Ray Accelerators
• 64 AI Accelerators
• 32MB Infinity Cache
• Boost Clock up to 3290 MHz
• Game Clock up to 2700 MHz
• AMD HYPR-RX with AFMF 2
• AMD FidelityFX™ Super Resolution 4
• AMD Radiance Display™ Engine
• AMD Fluid Motion Frames 2
• DisplayPort™ 2.1a
• Dual-X Cooling Technology
• AeroCurve Fan Blade
• Free Flow Cooling
• Honeywell PTM7950 TIM
• Metal Backplate
• ARGB SAPPHIRE Logo
• Two-Ball-Bearing Fans
• 9-Phase Digital Power Design
• Fuse Protection
• External RGB LED Motherboard Synchronization
• TriXX Supported

Complete Technical Specifications

• Brand: SAPPHIRE
• Series: PURE
• Model: PURE AMD Radeon™ RX 9060 XT OC GPU
• SKU: 11350-02-20G
• GPU: AMD Radeon™ RX 9060 XT
• Architecture: AMD RDNA™ 4
• Stream Processors: 2048
• Compute Units: 32 CUs
• Ray Accelerators: 32
• AI Accelerators: 64
• Infinity Cache: 32MB
• Boost Clock: Up to 3290 MHz
• Game Clock: Up to 2700 MHz
• Memory Size: 16GB
• Memory Type: GDDR6
• Memory Bus: 128-bit
• Memory Speed: 20 Gbps Effective
• Interface: PCI Express 5.0 x16
• BIOS Support: UEFI
• Game Index: 1440P
• Maximum Displays: 3
• HDMI Resolution: Up to 7680 × 4320
• DisplayPort Resolution: Up to 7680 × 4320
• HDMI Outputs: 2
• DisplayPort Outputs: 1 × DisplayPort 2.1a
• Cooling: Dual-X
• Form Factor: 2.3 Slot, ATX
• Dimensions: 240 × 124 × 46.1 mm
• Typical Board Power: 170W
• Power Connector: 1 × 8-pin
• Recommended PSU: Minimum 450W
• Operating System: Linux, Windows 10, Windows 11 64-bit

GPU

AMD Radeon™ RX 9060 XT

Video Memory

16GB GDDR6

Memory Interface

128-bit

Memory Speed

20 Gbps Effective

Boost Clock

Up to 3290 MHz

Game Clock

Up to 2700 MHz

Stream Processors

2048

Compute Units

32 CUs

Ray Accelerators

32

AI Accelerators

64

Infinity Cache

32MB

Interface

PCI Express 5.0 x16

Display Outputs

• 2 × HDMI
• 1 × DisplayPort 2.1a
• Maximum 3 displays
• Maximum resolution: 7680 × 4320

Cooling

SAPPHIRE Dual-X Cooling Technology

• AeroCurve Fan Blade
• Free Flow
• Integrated Cooling Module
• High TG Copper PCB
• Optimized Composite Heatpipes
• Honeywell PTM7950 TIM
• Metal Backplate
• Two-Ball-Bearing Fans
• Intelligent Fan Control
• Precision Fan Control
• FrameDefense

Power Requirements

• Typical Board Power: 170W
• Recommended PSU: Minimum 450W
• Power Connector: 1 × 8-pin
• Interface: PCI Express 5.0 x16

Dimensions

240 × 124 × 46.1 mm

Compatibility

• PCI Express-based desktop PC
• One available PCI Express x16 graphics slot
• Minimum 8GB system memory
• 16GB system memory recommended
• Minimum 450W power supply
• Windows 10 64-bit
• Windows 11 64-bit
• Linux 64-bit

Package Includes

• 3-pin 5V ARGB Cable

Warranty

Not Available

Weight

Not Available

Product Type

Graphics Card
