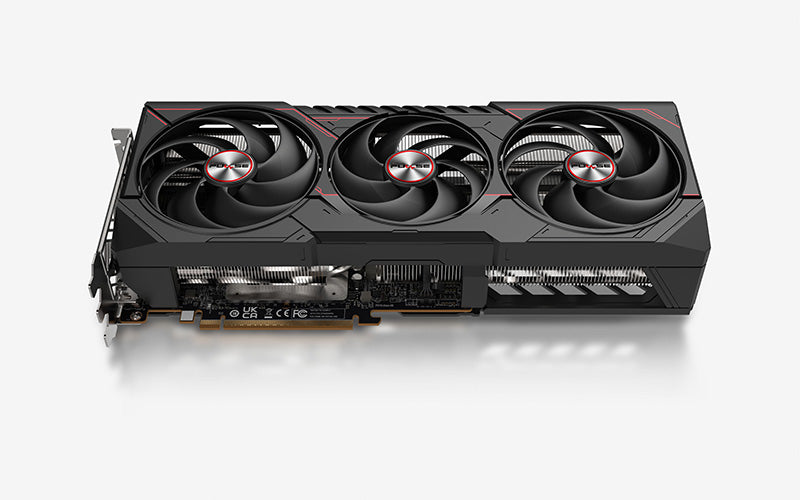

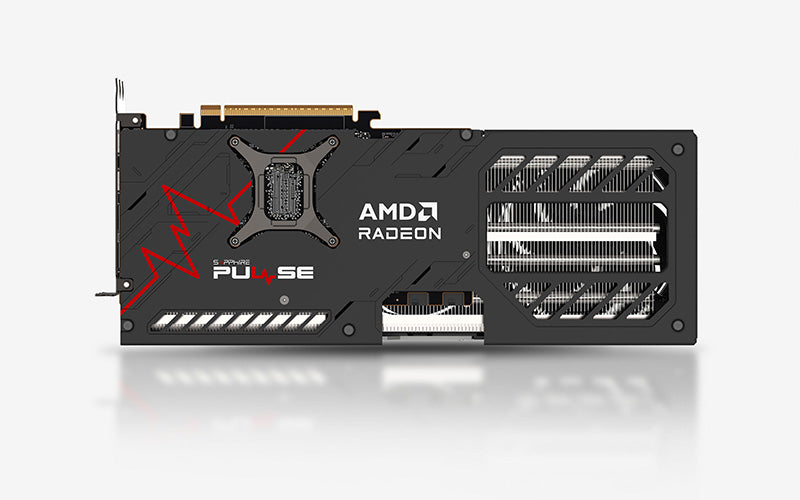

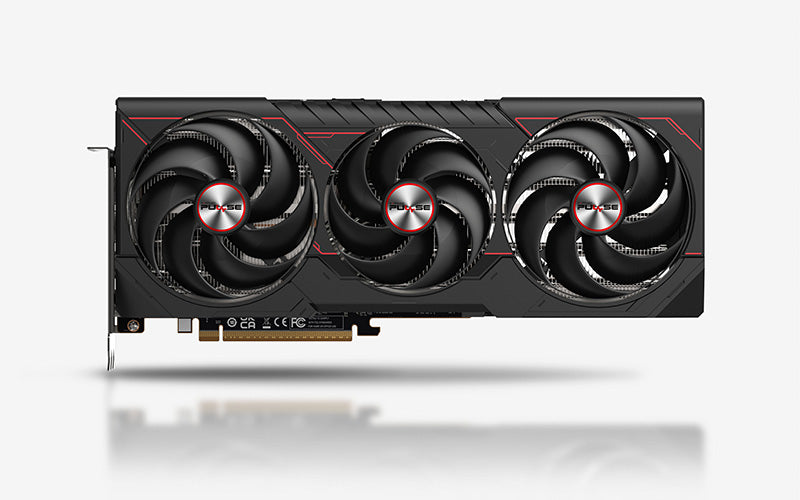

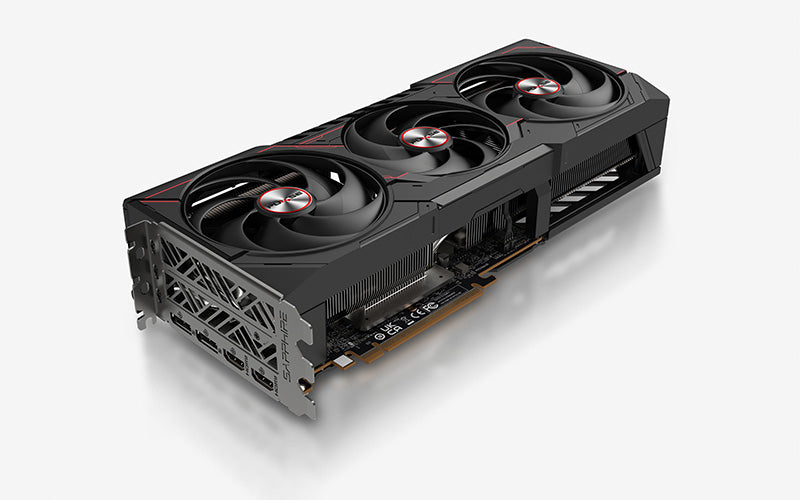

SAPPHIRE PULSE AMD Radeon™ RX 9070 XT GPU 16GB

The SAPPHIRE PULSE AMD Radeon™ RX 9070 XT GPU is a high-performance graphics card powered by AMD RDNA™ 4 architecture. It features 16GB of GDDR6 memory on a 256-bit memory bus, with a boost clock of up to 2970 MHz and a game clock of up to 2400 MHz.

The PULSE series combines efficient TRI-X cooling technology with AeroCurve fan blades, Free Flow cooling, optimized composite heatpipes, a metal backplate, and dual-ball-bearing fans for reliable performance during demanding gaming and graphics workloads.

Key Features

• AMD Radeon™ RX 9070 XT GPU
• AMD RDNA™ 4 Architecture
• 16GB GDDR6 Memory
• 256-bit Memory Interface
• 4096 Stream Processors
• 64 Compute Units
• 64 Ray Accelerators
• 128 AI Accelerators
• 64MB Infinity Cache
• Boost Clock up to 2970 MHz
• Game Clock up to 2400 MHz
• AMD HYPR-RX with AFMF 2
• AMD FidelityFX™ Super Resolution 4
• AMD Radiance Display™ Engine
• AMD Fluid Motion Frames 2
• DisplayPort™ 2.1a
• TRI-X Cooling Technology
• AeroCurve Fan Blade
• Free Flow Cooling
• Honeywell PTM7950 TIM
• Metal Backplate
• Dual-Ball-Bearing Fans
• 14-Phase Digital Power Design
• Fuse Protection
• Intelligent Fan Control
• Precision Fan Control
• TriXX Support

Complete Technical Specifications

• Brand: SAPPHIRE
• Series: PULSE
• Model: PULSE AMD Radeon™ RX 9070 XT
• SKU: 11348-03-20G
• GPU: AMD Radeon™ RX 9070 XT
• Architecture: AMD RDNA™ 4
• Stream Processors: 4096
• Compute Units: 64 CUs
• Ray Accelerators: 64
• AI Accelerators: 128
• Infinity Cache: 64MB
• Boost Clock: Up to 2970 MHz
• Game Clock: Up to 2400 MHz
• Memory Size: 16GB
• Memory Type: GDDR6
• Memory Bus: 256-bit
• Memory Speed: 20 Gbps Effective
• Interface: PCI Express 5.0 x16
• BIOS Support: UEFI
• Game Index: 4K
• Maximum Displays: 4
• HDMI Resolution: Up to 7680 × 4320
• DisplayPort Resolution: Up to 7680 × 4320
• HDMI Outputs: 2
• DisplayPort Outputs: 2 × DisplayPort 2.1a
• Cooling: TRI-X
• Form Factor: 3 Slot, ATX
• Dimensions: 320 × 120.25 × 61.6 mm
• Typical Board Power: 304W
• Power Connector: 2 × 8-pin
• Recommended PSU: Minimum 750W
• Operating System: Linux, Windows 10, Windows 11 64-bit

GPU

AMD Radeon™ RX 9070 XT

Video Memory

16GB GDDR6

Memory Interface

256-bit

Memory Speed

20 Gbps Effective

Boost Clock

Up to 2970 MHz

Game Clock

Up to 2400 MHz

Stream Processors

4096

Compute Units

64 CUs

Ray Accelerators

64

AI Accelerators

128

Infinity Cache

64MB

Interface

PCI Express 5.0 x16

Display Outputs

• 2 × HDMI
• 2 × DisplayPort 2.1a
• Maximum 4 displays
• Maximum resolution: 7680 × 4320

Cooling

SAPPHIRE TRI-X Cooling Technology

• AeroCurve Fan Blade
• Free Flow
• Integrated Cooling Module
• Optimized Composite Heatpipes
• Honeywell PTM7950 TIM
• Metal Backplate
• Two-Ball-Bearing Fans
• Intelligent Fan Control
• Precision Fan Control
• High TG Copper PCB
• FrameDefense

Power Requirements

• Typical Board Power: 304W
• Recommended PSU: Minimum 750W
• Power Connector: 2 × 8-pin
• Interface: PCI Express 5.0 x16

Dimensions

320 × 120.25 × 61.6 mm

Compatibility

• PCI Express-based desktop PC
• One available PCI Express x16 graphics slot
• Minimum 8GB system memory
• 16GB system memory recommended
• Minimum 750W power supply
• Windows 10 64-bit
• Windows 11 64-bit
• Linux 64-bit
