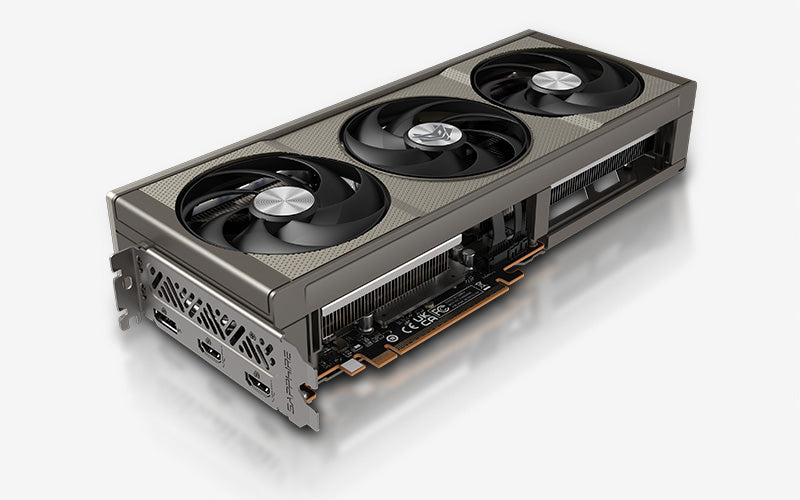

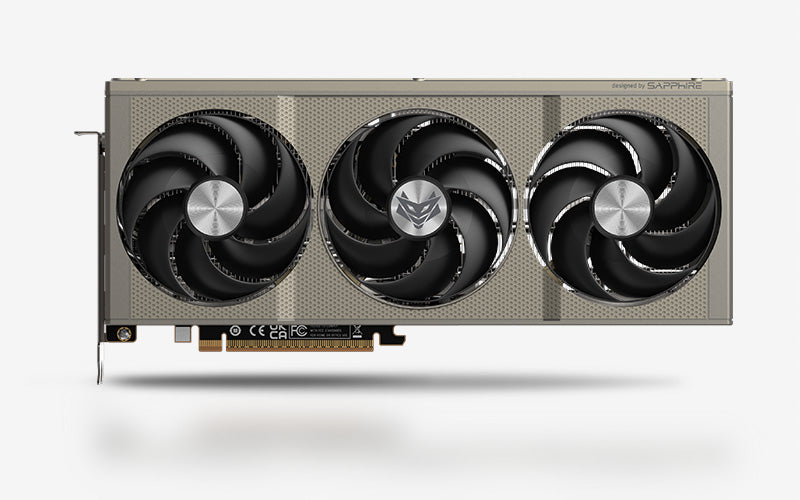

SAPPHIRE NITRO+ AMD Radeon™ RX 9060 XT OC GPU 16GB GDDR6

Product Description

The SAPPHIRE NITRO+ AMD Radeon™ RX 9060 XT OC GPU is a high-performance graphics card based on AMD RDNA™ 4 architecture. It features 16GB of GDDR6 memory on a 128-bit memory bus, a boost clock of up to 3320 MHz, and a game clock of up to 2780 MHz.

The card is designed for high-performance 1440p gaming and features SAPPHIRE's TRI-X cooling technology, AeroCurve fan blades, optimized composite heatpipes, a metal backplate, ARGB lighting, and Fan Quick Connect technology.

Key Features

• AMD Radeon™ RX 9060 XT GPU
• AMD RDNA™ 4 Architecture
• 16GB GDDR6 Memory
• 2048 Stream Processors
• 32 Compute Units
• 32MB Infinity Cache
• 32 Ray Accelerators
• 64 AI Accelerators
• Boost Clock up to 3320 MHz
• Game Clock up to 2780 MHz
• AMD HYPR-RX with AFMF 2
• AMD FidelityFX™ Super Resolution 4
• AMD Radiance Display™ Engine
• AMD Fluid Motion Frames 2
• TRI-X Cooling Technology
• AeroCurve Fan Blade
• Honeywell PTM7950 TIM
• Metal Backplate
• ARGB Light Bar
• Fan Quick Connect
• Dual-Ball-Bearing Fans
• 9-Phase Digital Power Design
• External ARGB Motherboard Synchronization

Complete Technical Specifications

• Brand: SAPPHIRE
• Series: NITRO+
• GPU: AMD Radeon™ RX 9060 XT
• Architecture: AMD RDNA™ 4
• Stream Processors: 2048
• Compute Units: 32 CUs
• Ray Accelerators: 32
• AI Accelerators: 64
• Infinity Cache: 32MB
• Boost Clock: Up to 3320 MHz
• Game Clock: Up to 2780 MHz
• Memory Size: 16GB GDDR6
• Memory Bus: 128-bit
• Memory Speed: 20 Gbps Effective
• Interface: PCI Express 5.0 x16
• BIOS Support: UEFI
• Game Index: 1440P
• Form Factor: 2.7 Slot, ATX
• Dimensions: 300 × 131 × 55 mm
• Typical Board Power: 182W
• Power Connector: 1 × 8-pin
• Recommended PSU: Minimum 450W
• Display Support: Maximum 3 Displays
• HDMI Resolution: Up to 7680 × 4320
• DisplayPort Resolution: Up to 7680 × 4320
• HDMI Outputs: 2
• DisplayPort Outputs: 1 × DisplayPort 2.1a
• Cooling: TRI-X Cooling
• Operating System: Linux, Windows 10, Windows 11 64-bit

GPU

AMD Radeon™ RX 9060 XT

Video Memory

16GB GDDR6

Memory Interface

128-bit

Memory Speed

20 Gbps Effective

Boost Clock

Up to 3320 MHz

Game Clock

Up to 2780 MHz

Stream Processors

2048

Compute Units

32 CUs

Ray Accelerators

32

AI Accelerators

64

Infinity Cache

32MB

Interface

PCI Express 5.0 x16

Display Outputs

• 2 × HDMI
• 1 × DisplayPort 2.1a

Supports up to 3 displays and resolutions up to 7680 × 4320.

Cooling

SAPPHIRE TRI-X Cooling Technology

• AeroCurve Fan Blade
• Optimized Composite Heatpipes
• Free Flow
• Integrated Cooling Module
• High TG Copper PCB
• Honeywell PTM7950 TIM
• Metal Backplate
• Dual-Ball-Bearing Fans
• Fan Quick Connect
• Intelligent Fan Control
• Precision Fan Control

Power Requirements

• Typical Board Power: 182W
• Recommended PSU: Minimum 450W
• Power Connector: 1 × 8-pin
• PCIe Slot: PCI Express x16

Dimensions

300 × 131 × 55 mm

Compatibility

• PCI Express-based desktop PC
• One available PCI Express x16 graphics slot
• Minimum 8GB system memory
• 16GB system memory recommended
• Windows 10 64-bit
• Windows 11 64-bit
• Linux 64-bit

Package Includes

• L-Shape Graphics Card Support Bracket
• 3-pin 5V ARGB Cable
