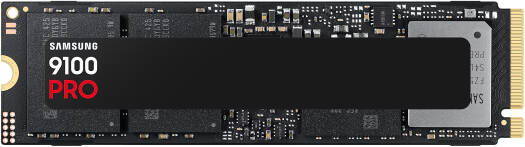

Samsung 9100 PRO 1TB PCIe 5.0 NVMe M.2 SSD – Up to 14,700MB/s Extreme Performance Storage
Samsung 9100 PRO 1TB PCIe 5.0 NVMe M.2 SSD – Up to 14,700MB/s Extreme Performance Storage
Couldn't load pickup availability
Experience next-generation storage performance with the Samsung 9100 PRO 1TB NVMe SSD, Samsung’s flagship PCIe Gen5 SSD designed for extreme gaming PCs, professional workstations, AI workloads, and high-performance computing.
Built with the latest PCIe 5.0 x4 NVMe 2.0 interface, Samsung’s in-house controller, and advanced V-NAND TLC flash memory, the 9100 PRO delivers exceptional sequential speeds of up to 14,700MB/s read and 13,300MB/s write.
Designed for enthusiasts and professionals, this SSD provides ultra-fast loading, faster data processing, and outstanding multitasking performance for demanding applications such as 3D rendering, video editing, gaming, and AI workloads.
Key Features
- 1TB High-Speed Storage Capacity
- Samsung Flagship PCIe Gen5 SSD
- PCIe 5.0 x4 NVMe 2.0 Interface
- Up to 14,700MB/s Sequential Read Speed
- Up to 13,300MB/s Sequential Write Speed
- Samsung V-NAND TLC Technology
- Samsung Proprietary Controller
- High-Speed LPDDR4X DRAM Cache
- M.2 2280 Compact Form Factor
- Excellent Performance for Gaming & Professional Workloads
- Supports Samsung Magician Software
- AES 256-bit Hardware Encryption
- 5-Year Limited Warranty
Complete Technical Specifications
| Specification | Details |
|---|---|
| Brand | Samsung |
| Series | 9100 PRO |
| Model | MZ-VAP1T0 |
| Capacity | 1TB |
| Product Type | Internal NVMe SSD |
| Form Factor | M.2 2280 |
| Interface | PCIe Gen5 x4 |
| Protocol | NVMe 2.0 |
| NAND Flash | Samsung V-NAND TLC |
| Controller | Samsung In-House Controller |
| DRAM Cache | 1GB LPDDR4X DRAM |
| Sequential Read Speed | Up to 14,700 MB/s |
| Sequential Write Speed | Up to 13,300 MB/s |
| Random Read IOPS | Up to 1,850,000 IOPS |
| Random Write IOPS | Up to 2,600,000 IOPS |
| Endurance (TBW) | 600 TBW |
| MTBF | Not Available |
| Operating Temperature | 0°C – 70°C |
| Storage Temperature | Not Available |
| Shock Resistance | Not Available |
| Dimensions | 80.15 × 22.15 × 2.38 mm |
| Weight | Approx. 9g |
| Power Consumption | Read: 7.6W / Write: 7.2W |
| Encryption | AES 256-bit, TCG Opal 2.0, IEEE1667 |

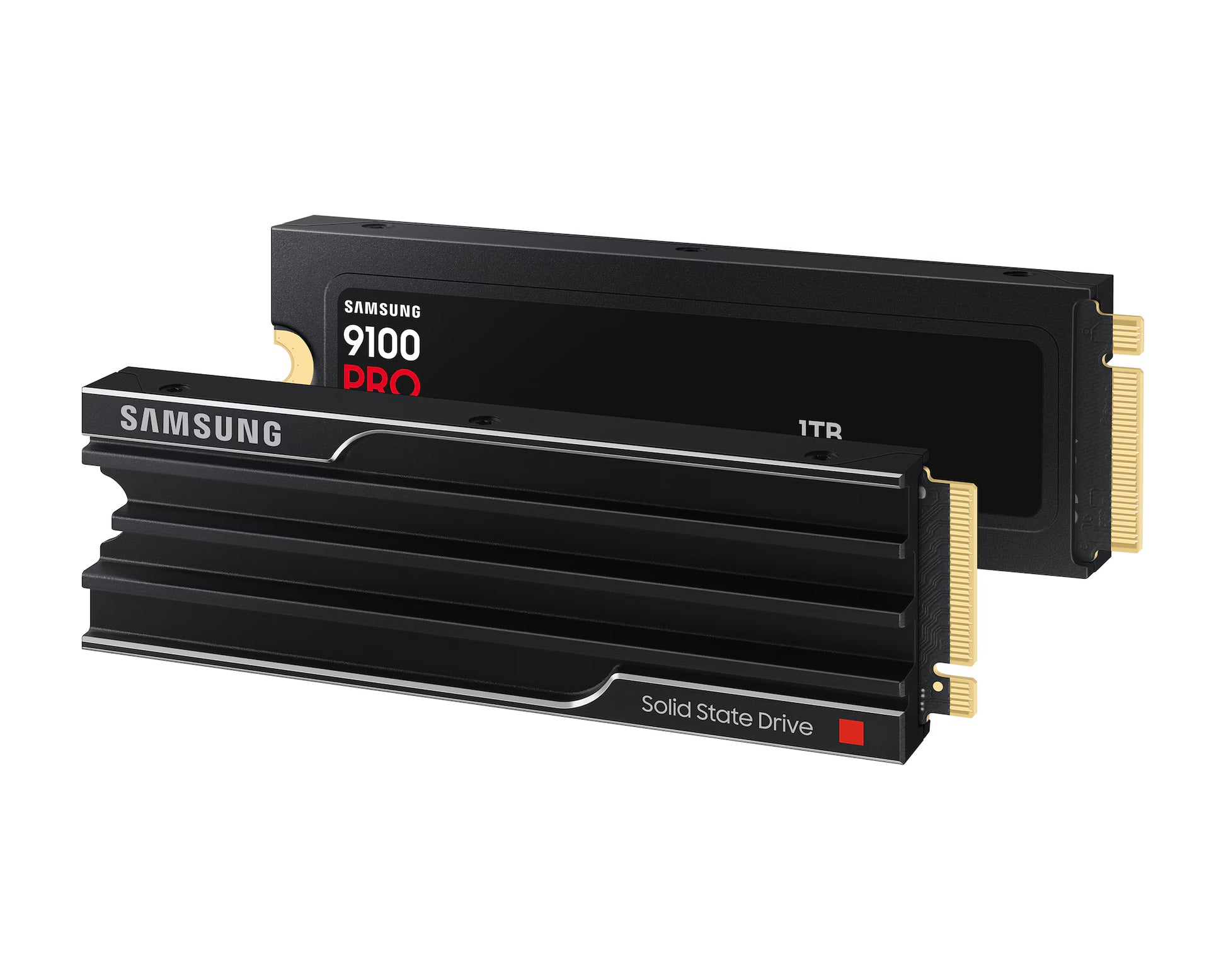

| Heatsink | Not Included (Heatsink version available) |
Read Speed
Up to 14,700 MB/s
Write Speed
Up to 13,300 MB/s
Random Read/Write IOPS
Random Read IOPS: Up to 1,850,000 IOPS
Random Write IOPS: Up to 2,600,000 IOPS
Interface
PCIe Gen5 x4 NVMe 2.0
Compatibility
Compatible with:
- High-end gaming PCs
- Professional workstations
- Desktop PCs with M.2 PCIe NVMe slot
- Latest Intel and AMD PCIe Gen5 platforms
Supports:
- PCIe Gen5 systems (maximum performance)
- PCIe Gen4 systems (backward compatible with reduced speed)
Not compatible with M.2 SATA slots.
Package Includes
- 1 × Samsung 9100 PRO 1TB PCIe Gen5 NVMe M.2 SSD
- Warranty Documentation
Warranty
5 Years Limited Warranty
