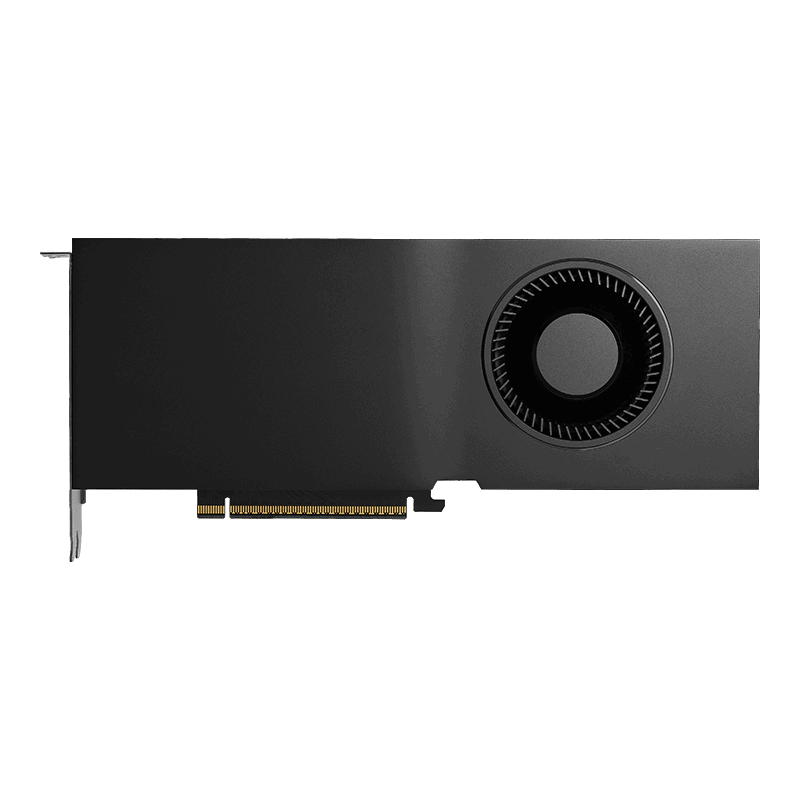

PNY NVIDIA RTX PRO 4500 Blackwell Workstation Edition 32GB Professional Graphics Card

The PNY NVIDIA RTX PRO 4500 Blackwell Workstation Edition is a high-performance professional graphics card built on NVIDIA Blackwell architecture for demanding creative, engineering, scientific, AI, visualization and simulation workloads. It combines 10,496 CUDA cores, 328 fifth-generation Tensor Cores and 82 fourth-generation RT Cores with 32GB of ECC-enabled GDDR7 memory and 896 GB/s memory bandwidth.

The card uses a full-height, dual-slot design with active blower cooling and a 200W maximum power consumption. Four DisplayPort 2.1 outputs support high-resolution professional multi-display environments.

Key Features

• NVIDIA Blackwell architecture with 10,496 CUDA cores
• 32GB GDDR7 memory with ECC and 896 GB/s bandwidth
• 328 fifth-generation Tensor Cores and 82 fourth-generation RT Cores
• PCI Express 5.0 x16 interface with 200W maximum power consumption
• Four DisplayPort 2.1 outputs and NVIDIA RTX PRO Sync compatibility

Complete Technical Specifications

• Brand: PNY
• Model: NVIDIA RTX PRO 4500 Blackwell Workstation Edition
• Series: NVIDIA RTX PRO Blackwell
• GPU/CPU/Product Type: Professional Graphics Card
• Architecture: NVIDIA Blackwell
• Memory: 32GB
• Memory Type: GDDR7 with ECC
• Memory Bus: 256-bit
• Memory Speed: Not Available
• Clock Speed: Not Available
• Interface: PCI Express 5.0 x16
• Dimensions: 4.4" H × 10.5" L
• Power Consumption: 200W
• Power Connector: 1 × PCIe CEM5 16-pin
• Recommended PSU: Not Available
• Cooling: Blower Active Fan
• Operating System: Windows 11 64-bit, Windows 10 64-bit, Red Hat Enterprise Linux 7.x, SUSE Linux Enterprise Desktop 15.x, Fedora 31, Ubuntu 18.04, FreeBSD 11.x, Solaris 11
• CUDA Cores: 10,496
• Tensor Cores: 328, 5th Generation
• RT Cores: 82, 4th Generation
• Memory Bandwidth: 896 GB/s
• Display Connectors: 4 × DisplayPort 2.1b
• Maximum Displays: More than 4 × 3840 × 2160 @ 165Hz; more than 2 × 7680 × 4320 @ 100Hz
• Form Factor: Full-height, dual-slot
• Foundry: TSMC
• Process: 4N NVIDIA Custom Process
• Transistors: 45.6 billion
• Die Size: 378 mm²
• NVENC: 2 × 9th Generation
• NVDEC: 2 × 6th Generation
• JPEG Engines: 1
• Graphics APIs: DirectX 12, Shader Model 6.6, OpenGL 4.6, Vulkan 1.4
• Compute APIs: CUDA 12.8, OpenCL 3.0, DirectCompute
• NVIDIA RTX PRO Sync: Compatible
• Frame Lock: Compatible with NVIDIA RTX PRO Sync
• PNY Part Number: VCNRTXPRO4500B-PB
• UPC: 751492796246

GPU Architecture

The RTX PRO 4500 Blackwell Workstation Edition is based on NVIDIA Blackwell architecture and features 10,496 CUDA cores, 328 fifth-generation Tensor Cores and 82 fourth-generation RT Cores. PNY specifies 51 TFLOPS single-precision performance, 153 TFLOPS RT Core performance and up to 1,617 AI TOPS based on peak GPU boost rates.

Memory

The card includes 32GB of GDDR7 memory with ECC, a 256-bit memory interface and 896 GB/s memory bandwidth. The ECC-enabled memory is designed for professional workloads where data integrity is important.

Display Support

Four DisplayPort 2.1b outputs are provided. PNY specifies support for more than four 3840 × 2160 displays at 165Hz and more than two 7680 × 4320 displays at 100Hz under the specified configurations.

AI, Ray Tracing and Professional Workloads

The RTX PRO 4500 is designed for AI acceleration, neural rendering, engineering, scientific computing, 3D visualization, simulation, content creation and other professional workloads. Its fifth-generation Tensor Cores support advanced AI processing, while fourth-generation RT Cores accelerate ray-traced rendering and neural graphics.

Video Engines

The GPU incorporates two ninth-generation NVIDIA NVENC encoders and two sixth-generation NVIDIA NVDEC decoders. PNY also specifies support for 4:2:2 H.264 and HEVC workflows together with improved AV1 encoding and decoding capabilities.

Form Factor and Power

The RTX PRO 4500 uses a full-height, dual-slot design measuring 4.4" high by 10.5" long. Maximum power consumption is 200W and the card uses one PCIe CEM5 16-pin power connector. PNY specifies an active blower cooling solution.

Compatibility

• PCI Express 5.0 x16 system interface
• PCI Express 5.0 x16 expansion slot preferred
• Full-height, dual-slot workstation chassis
• Intel Core i5/i7/i9/Xeon or later processors supported
• AMD Ryzen/Epyc-class processors or later supported
• Windows 10/11 64-bit and supported Linux platforms
• DisplayPort 2.1 preferred
• HDMI and DVI-compatible displays supported with appropriate adapters
• System memory equal to or greater than GPU memory recommended; twice GPU memory recommended
• Internet connection required for driver installation

Package Includes

• PNY NVIDIA RTX PRO 4500 Blackwell Workstation Edition Professional Graphics Card
• One auxiliary power cable

Warranty

3-Year Limited Warranty

Weight

1.070 kg
