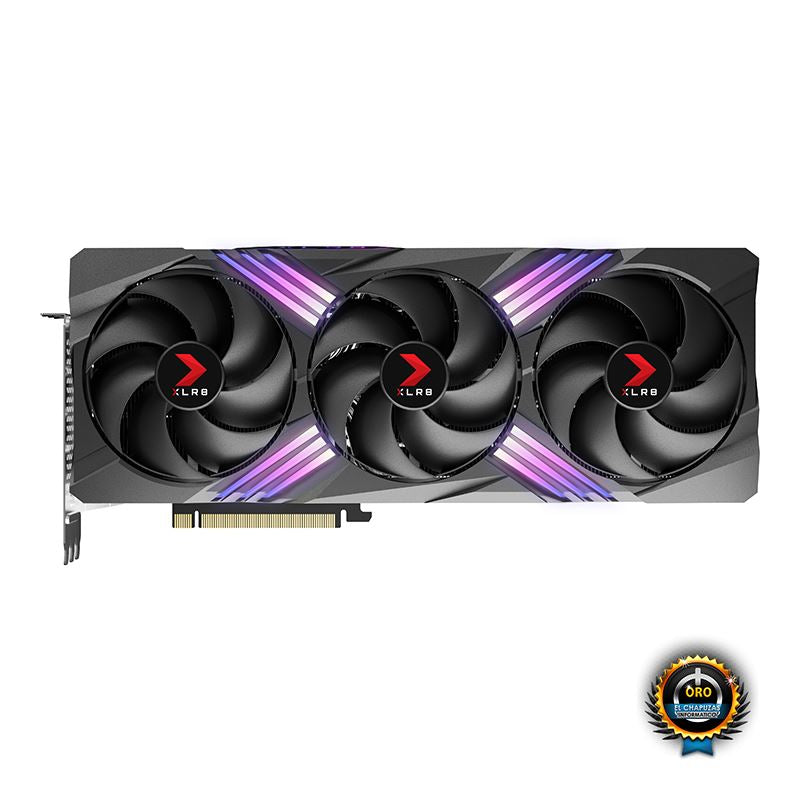

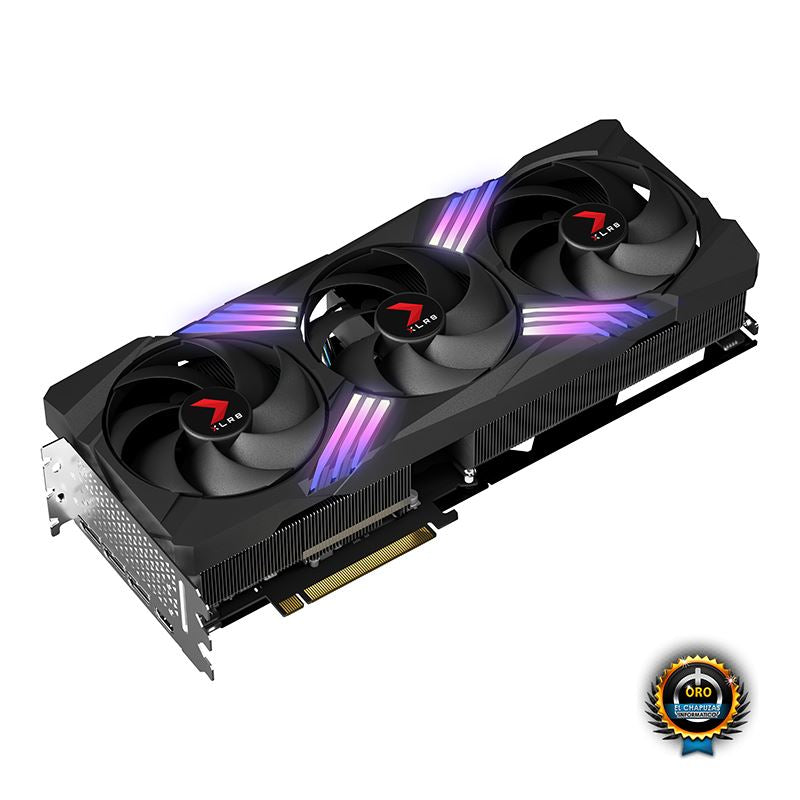

PNY GeForce RTX 4070 Ti 12GB XLR8 Gaming VERTO EPIC-X RGB Triple Fan

The PNY GeForce RTX 4070 Ti 12GB XLR8 Gaming VERTO EPIC-X RGB Triple Fan is a high-performance gaming graphics card powered by NVIDIA Ada Lovelace architecture. It features 7,680 CUDA cores, 12GB of GDDR6X memory, a 192-bit memory interface and 504 GB/s of memory bandwidth. The standard Triple Fan variant specified by the provided product URL operates at a 2,310 MHz clock speed with a 2,610 MHz boost speed.

The card features EPIC-X RGB lighting, a triple-fan cooling design, three DisplayPort 1.4a outputs and one HDMI 2.1 output. It supports up to four displays and resolutions up to 7680 × 4320.

Key Features

• NVIDIA Ada Lovelace architecture with 7,680 CUDA cores
• 12GB GDDR6X memory with 504 GB/s bandwidth
• 2,310 MHz clock speed and 2,610 MHz boost speed
• EPIC-X RGB lighting with triple-fan cooling
• DisplayPort 1.4a and HDMI 2.1 connectivity with support for up to four displays

Complete Technical Specifications

• Brand: PNY
• Model: GeForce RTX 4070 Ti 12GB XLR8 Gaming VERTO EPIC-X RGB Triple Fan
• Series: GeForce RTX 4070 Ti
• GPU/CPU/Product Type: Gaming Graphics Card
• Architecture: NVIDIA Ada Lovelace
• Memory: 12GB
• Memory Type: GDDR6X
• Memory Bus: 192-bit
• Memory Speed: 21 Gbps
• Clock Speed: 2310 MHz
• Boost Speed: 2610 MHz
• Interface: PCI Express 4.0 x16
• Dimensions: 13.06" × 5.39" × 2.62"; 3.3-slot
• Power Consumption: 285W TDP
• Power Connector: 16-pin; one 16-pin to two 8-pin power cable
• Recommended PSU: 700W or greater
• Cooling: Triple Fan
• Operating System: Windows 11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit
• CUDA Cores: 7,680
• Memory Bandwidth: 504 GB/s
• Display Connectors: 3 × DisplayPort 1.4a, 1 × HDMI 2.1
• Maximum Displays: 4
• Maximum Digital Resolution: 7680 × 4320 @ 120Hz
• NVLink: Not Supported
• Ray Tracing: Supported
• Tensor Cores: Supported
• DLSS: NVIDIA DLSS 3
• RGB Lighting: EPIC-X RGB
• Bus Type: PCI Express 4.0 x16
• Form Factor: 3.3-slot
• PNY Part Number: VCG4070T12TFXXPB1
• UPC Code: 751492771397

GPU Architecture

The RTX 4070 Ti uses NVIDIA Ada Lovelace architecture, with dedicated third-generation RT Cores and fourth-generation Tensor Cores for ray tracing and AI-accelerated features including DLSS 3.

Memory

The card has 12GB of GDDR6X memory using a 192-bit memory interface. Memory speed is 21 Gbps and PNY specifies memory bandwidth of 504 GB/s.

Gaming and AI Features

The card supports NVIDIA DLSS 3, dedicated ray-tracing and Tensor Cores, NVIDIA Reflex, NVIDIA Broadcast, NVIDIA G-SYNC and NVIDIA Studio technologies.

Display Support

The card provides three DisplayPort 1.4a outputs and one HDMI 2.1 output. PNY specifies support for up to four simultaneous displays and digital resolutions up to 7680 × 4320 at 120Hz under supported configurations.

Cooling and RGB

The XLR8 Gaming VERTO EPIC-X RGB model uses a triple-fan cooling system and EPIC-X RGB lighting designed to provide customizable illumination while supporting the card's high-performance thermal requirements.

Power Requirements

The graphics card has a 285W TDP and requires a 16-pin power input using the included 16-pin-to-two-8-pin power cable. PNY specifies a 700W or greater system power supply.

Compatibility

• PCI Express-compliant motherboard with one 3.3-width x16 graphics slot
• Two 8-pin supplementary power connections through the supplied power cable
• 700W or greater system power supply
• Windows 11 64-bit
• Windows 10 64-bit
• Linux 64-bit
• Supports up to four displays
• Internet connection required for driver installation

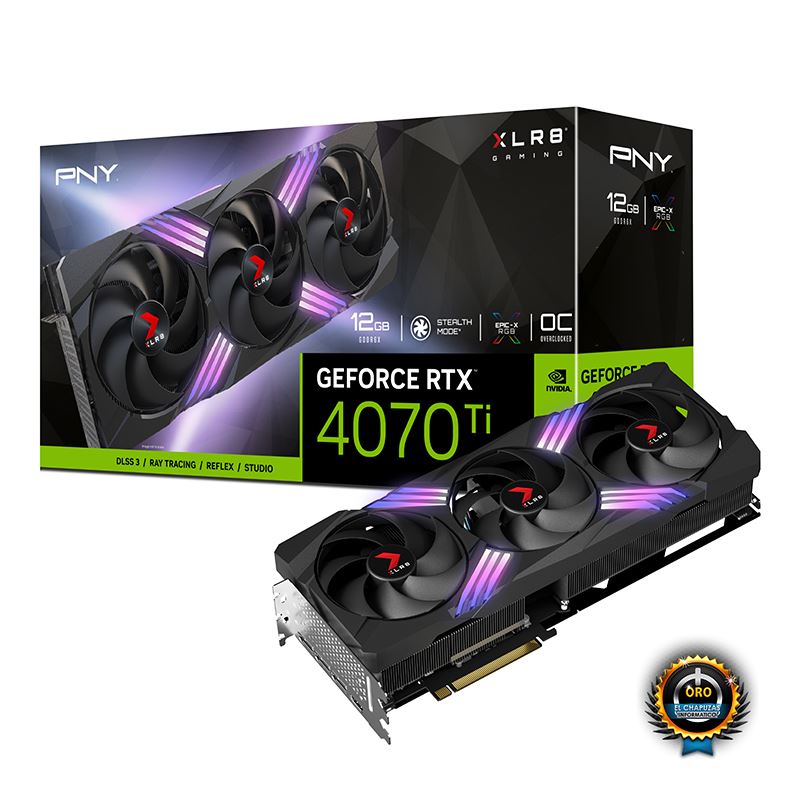

Package Includes

• PNY GeForce RTX 4070 Ti 12GB XLR8 Gaming VERTO EPIC-X RGB Triple Fan
• Support bracket
• One 16-pin to two 8-pin power cable

Warranty

3-Year Limited Warranty

Weight

3.35 lb (approximately 1.52 kg)
