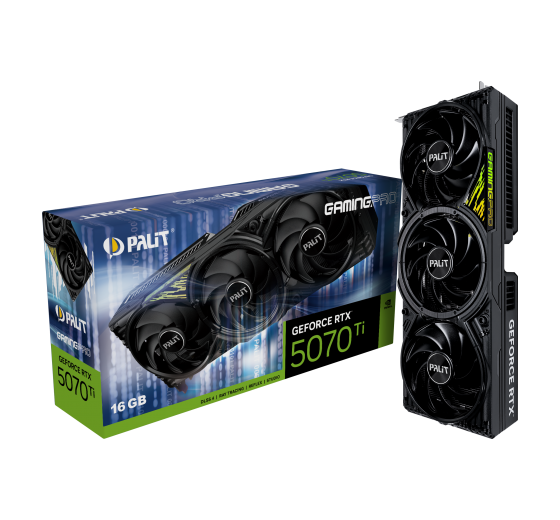

Palit GeForce RTX 5070 Ti GamingPro 16GB GDDR7 Graphics Card

The Palit GeForce RTX 5070 Ti GamingPro is a high-performance graphics card powered by the NVIDIA GeForce RTX 5070 Ti and NVIDIA Blackwell architecture. It features 16GB of GDDR7 memory with a 256-bit memory interface and 28 Gbps memory speed.

The GamingPro series combines a performance-focused design with advanced cooling technologies including TurboFan 4.0, Air Deflector and Composite Heat Pipes. The card also features Dual BIOS, 0dB technology, a full-cover die-casting frame and ARGB lighting.

The exact manufacturer product code for this model is NE7507T019T2-GB2031A.

Key Features

• NVIDIA GeForce RTX 5070 Ti GPU
• NVIDIA Blackwell architecture
• 16GB GDDR7 memory
• 256-bit memory interface
• 28 Gbps memory speed
• 8960 CUDA cores
• PCI Express 5.0 interface
• Palit GamingPro cooling design
• TurboFan 4.0
• Air Deflector
• Composite Heat Pipes
• Triple-fan cooling
• Dual BIOS
• 0dB technology
• ARGB lighting
• Full-cover die-casting frame
• Dual-ball-bearing fans
• ThunderMaster software support

Complete Technical Specifications

• Brand: Palit
• Model: GeForce RTX 5070 Ti GamingPro
• Series: GamingPro
• GPU/CPU/Product Type: NVIDIA GeForce RTX 5070 Ti Graphics Card
• Architecture: NVIDIA Blackwell
• CUDA Cores: 8960
• Memory: 16GB
• Memory Type: GDDR7
• Memory Bus: 256-bit
• Memory Speed: 28 Gbps
• Base Clock: 2295 MHz
• Boost Clock: 2452 MHz
• Interface: PCI Express 5.0 x16
• Maximum Resolution: 7680 × 4320
• HDMI: 1 × HDMI 2.1b
• DisplayPort: 3 × DisplayPort 2.1b
• Maximum Displays: 4
• Cooling: Air cooling
• Fan Count: 3
• Fan Technology: Dual-ball bearing
• Semi-Fanless: Yes
• Slot Size: 3 slots
• Power Consumption: 300W
• Power Connector: 1 × 16-pin
• Recommended PSU: Not Available
• DirectX: DirectX 12 Ultimate
• OpenGL: 4.6
• LED Control: ThunderMaster
• Dimensions: 331.9 × 127.1 × 60 mm
• Dual BIOS: Yes
• Product Code/SKU: NE7507T019T2-GB2031A
• Barcode/EAN: 4710562245011

GPU Architecture

The Palit GamingPro is based on the NVIDIA GeForce RTX 5070 Ti and NVIDIA Blackwell architecture. NVIDIA Blackwell introduces fifth-generation Tensor Cores, fourth-generation Ray Tracing Cores and new Streaming Multiprocessors for AI-enhanced graphics and performance.

Memory

The graphics card is equipped with 16GB of GDDR7 memory using a 256-bit memory interface and 28 Gbps memory speed.

Clock Speeds

The exact product specification identifies a 2295 MHz base clock and 2452 MHz boost clock.

Cooling

Palit's GamingPro cooling system incorporates TurboFan 4.0, Air Deflector technology and Composite Heat Pipes. TurboFan 4.0 uses redesigned fan blades to optimize airflow toward the heatsink. The Air Deflector uses a 30° fin angle to guide airflow across the heatsink surface, while the Composite Heat Pipe is designed to improve heat dissipation.

The card uses three fans and supports 0dB technology, allowing the fans to remain off during lighter workloads.

Dual BIOS

The card features Dual BIOS with Performance and Silent modes. Performance Mode prioritizes cooling and peak performance, while Silent Mode uses a less aggressive fan curve for quieter operation.

Display Connectivity

The graphics card provides one HDMI 2.1b output and three DisplayPort 2.1b outputs. It supports up to four displays and a maximum resolution of 7680 × 4320.

Power Requirements

The card has a rated power consumption of 300W and uses one 16-pin auxiliary power connector.

Physical Design

The graphics card measures 331.9 × 127.1 × 60 mm and occupies three slots. It features a full-cover die-casting frame designed to improve structural protection and resistance to bending.

Software

Palit provides ThunderMaster software for controlling overclocking settings, fan speed and LED effects, as well as monitoring GPU status.

Compatibility

• Desktop PCs with a compatible PCI Express 5.0 x16 graphics slot
• Systems with sufficient three-slot clearance
• Systems capable of supplying the card's 300W power requirement
• Displays using HDMI 2.1b
• Displays using DisplayPort 2.1b
• Up to four simultaneous displays

Package Includes

• Palit GeForce RTX 5070 Ti GamingPro graphics card
• Additional package contents: Not Available
