MSI SPATIUM M560 2TB PCIe 5.0 NVMe M.2 SSD – Up to 10,300MB/s High Performance Storage
MSI SPATIUM M560 2TB PCIe 5.0 NVMe M.2 SSD – Up to 10,300MB/s High Performance Storage
Couldn't load pickup availability
Experience next-generation storage performance with the MSI SPATIUM M560 2TB PCIe Gen5 NVMe M.2 SSD. Designed for enthusiasts, gamers, content creators, and professionals, this ultra-fast SSD delivers extreme transfer speeds of up to 10,300MB/s sequential read performance.
Built with advanced PCIe Gen5 x4 NVMe technology, the SPATIUM M560 provides significantly faster loading times, smoother multitasking, and improved workflow efficiency compared with previous-generation SSDs.
The compact M.2 2280 form factor makes it compatible with modern high-performance desktops and workstations equipped with PCIe 5.0 NVMe support.
Key Features
- 2TB High-Capacity Storage
- PCIe Gen5 x4 NVMe 2.0 Interface
- Up to 10,300MB/s Sequential Read Speed
- Up to 8,600MB/s Sequential Write Speed
- M.2 2280 Form Factor
- High-Performance 3D NAND Flash Memory
- Designed for Gaming and Professional Workloads
- Faster Game Loading and Application Launching
- Excellent for 4K/8K Content Creation
- Advanced Thermal Management Design
- Supports TRIM and S.M.A.R.T.
- MSI Center Storage Monitoring Support
Complete Technical Specifications
| Specification | Details |
|---|---|
| Brand | MSI |
| Series | SPATIUM M560 |
| Model | SPATIUM M560 PCIe 5.0 NVMe SSD 2TB |
| Capacity | 2TB |
| Product Type | Internal NVMe SSD |
| Form Factor | M.2 2280 |
| Interface | PCIe Gen5 x4 |
| Protocol | NVMe 2.0 |
| NAND Flash | 3D NAND |
| Controller | Phison E26 |
| DRAM Cache | DRAM Cache |
| Sequential Read Speed | Up to 10,300 MB/s |
| Sequential Write Speed | Up to 8,600 MB/s |
| Random Read IOPS | Up to 1,350,000 IOPS |
| Random Write IOPS | Up to 1,400,000 IOPS |
| Endurance (TBW) | Not Available |
| MTBF | 1,600,000 Hours |
| Operating Temperature | 0°C – 70°C |
| Storage Temperature | Not Available |
| Shock Resistance | Not Available |
| Dimensions | 80 × 22 × 2.15 mm |
| Weight | Approx. 7g |
| Power Consumption | Not Available |
| Encryption | AES-256 Supported |
| Heatsink | Included / Thermal Solution (model dependent) |
Read Speed
Up to 10,300 MB/s
Write Speed
Up to 8,600 MB/s
Random Read/Write IOPS
Random Read IOPS: Up to 1,350,000 IOPS
Random Write IOPS: Up to 1,400,000 IOPS
Interface
PCIe Gen5 x4 NVMe 2.0
Compatibility
Compatible with:
- Desktop PCs supporting PCIe Gen5 M.2 NVMe SSD
- Gaming PCs
- High-performance workstations
- Latest Intel and AMD platforms with M.2 PCIe NVMe support
Backward Compatibility:
- PCIe Gen4 supported (performance limited)
Not compatible with M.2 SATA slots.
Package Includes

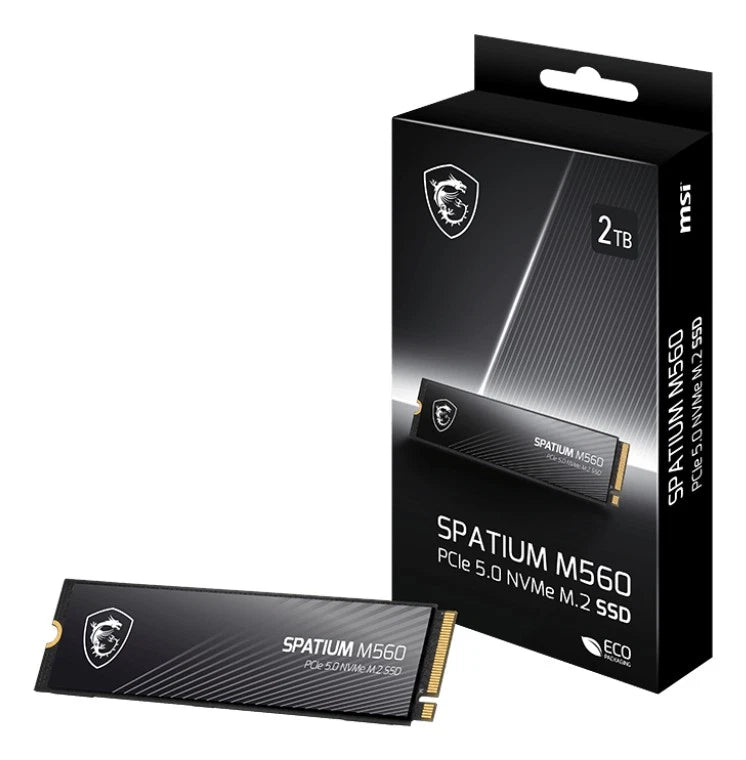

- 1 × MSI SPATIUM M560 2TB PCIe Gen5 NVMe M.2 SSD
Warranty
5 Years Limited Warranty
Weight
Approx. 7g
