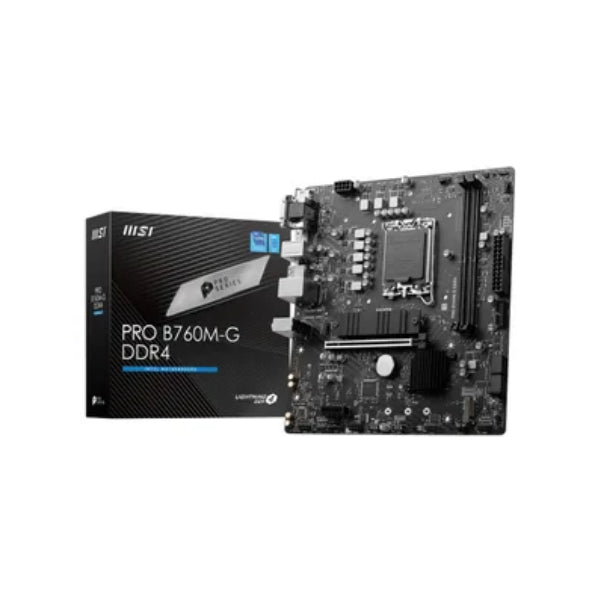

MSI Pro B760M-G DDR4 Motherboard
MSI Pro B760M-G DDR4 Motherboard
Regular price
Dhs. 579.85 AED
Regular price
Dhs. 860.00 AED
Sale price
Dhs. 579.85 AED
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

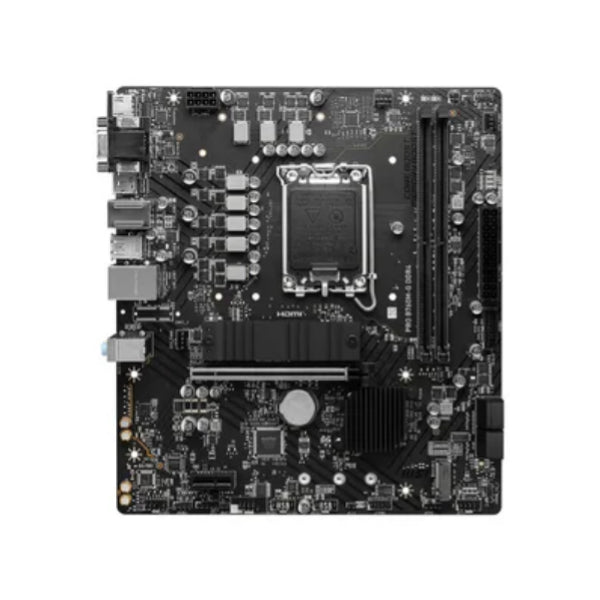

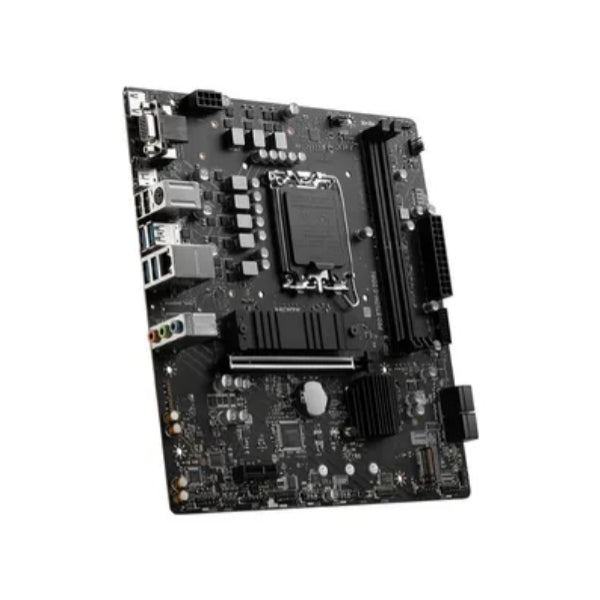

The MSI Pro B760M-G DDR4 Motherboard is designed to accommodate 12th/13th Gen Intel Core processors, Pentium Gold, and Celeron processors on LGA 1700 sockets. This motherboard boasts up to 4 x DDR4 memory slots, PCI-E 4.0 and 3.0 compatible expansion slots, 2 x M.2 slots, and 4 x SATA ports offering 6Gb/s speeds. Additionally, it features 6 x rear USB ports and 6 x front panel USB header ports for versatile connectivity. The Realtek RTL8125B delivers lightning-fast 2.5Gbps LAN performance, while the Realtek ALC897 HD audio codec ensures an immersive audio experience. All of this is packed into a micro-ATX motherboard form factor, providing a compact and efficient solution.
Specification,
| Model Number | PRO-B760M-G-DDR4 |
| Chipset | Intel B760 |
| CPU Support | Supports 12th / 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 2 x DDR4, Maximum Memory Capacity 64 GB Memory Support 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4200(OC) / 4000(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200(JEDEC) / 2933(JEDEC) / 2666(JEDEC) / 2400(JEDEC) / 2133(JEDEC) Max. overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Onboard Graphics | 1 x HDMI 1 x DisplayPort 1 x D-Sub Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60H z* Support DP 1.4, maximum resolution of 4K 60 Hz* Support VGA, maximum resolution of 2048 x 1536 50 Hz, 2048 x 1280 60 Hz, 1920 x 1200 60 Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 1 x PCI-E x 16 slot (Qty) 1 x PCI-E x 1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 4.0 supports up to (From Chipset) |
| Storage | 2 x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x 4 , supports 2280 / 2260 / 2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x 4 / SATA mode, supports 2280 / 2260 / 2242 devices 4 x SATA 6G (Qty) * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 2 x USB 2.0 (Rear) 4 x USB 2.0 (Front) 4 x USB 3.2 Gen1 Type A (Rear) 2 x USB 3.2 Gen1 Type A (Front) |
| LAN | Realtek® RTL8125B 2.5 Gbps LAN |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Internal I/O | 1 x Power Connector(ATX_PWR) 1 x Power Connector(CPU_PWR) 1 x CPU Fan 2 x System Fan 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x Com Port (JCOM) 2 x Addressable V2 RGB LED connector (JARGB_V2) 1 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0) 4 x USB 2.0 ports 2 x USB 3.2 Gen1 Type A ports |
| LED Feature | 4 x EZ Debug LED |
| Back Panel Ports | HDMI™ VGA DisplayPort Keyboard / Mouse 2.5G LAN Audio Connectors USB 2.0 USB 3.2 Gen1 5 Gbps (Type-A) |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension | mATX 220 mm x 243.84 mm |
| Box Content | European Union Regulatory Notice Quick Installation Guide 2 x M.2 Screw / Standoff Set SATA Cable I/O Shield |
