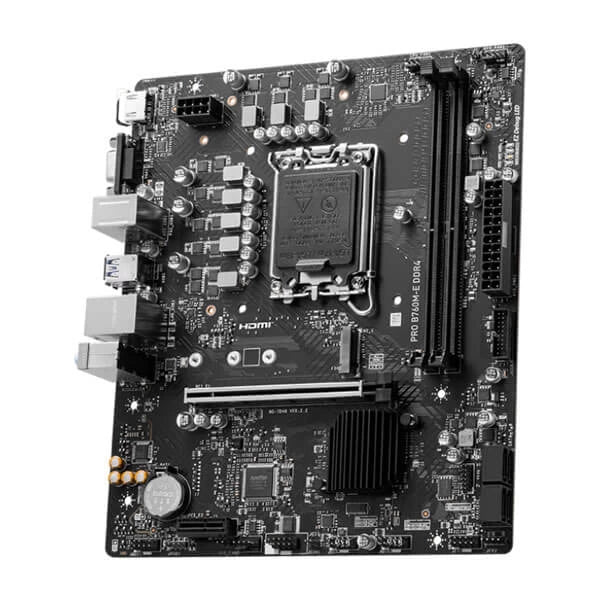

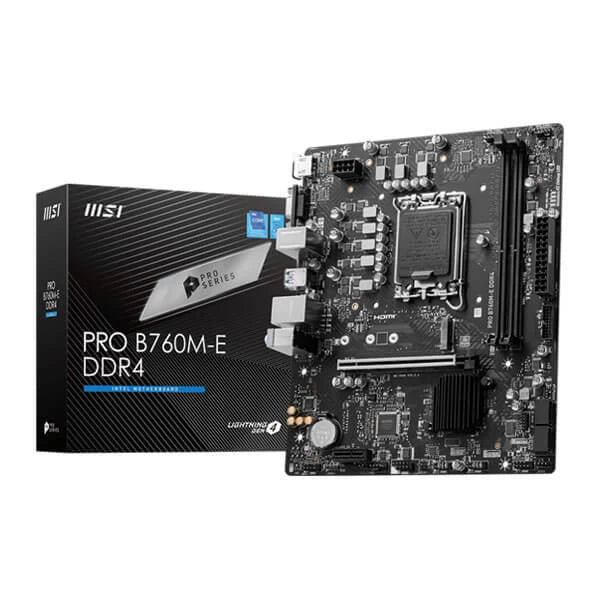

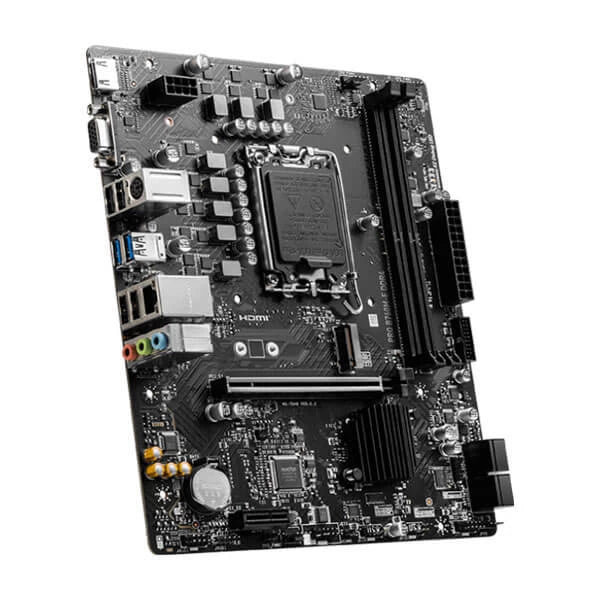

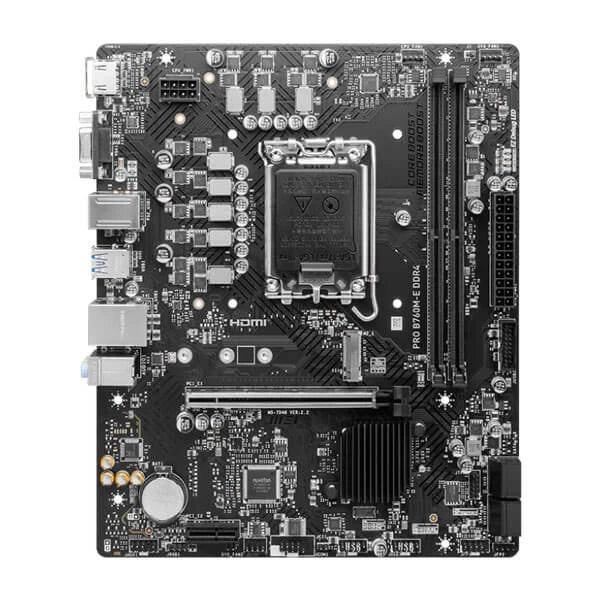

MSI Pro B760M-E DDR4 Motherboard
MSI Pro B760M-E DDR4 Motherboard
Couldn't load pickup availability
Highlighted Features:
Seamless Processor Compatibility: Embrace 12th/13th Gen Intel® Core™, Pentium® Gold, and Celeron® processors, tailored for the LGA 1700 socket, ensuring versatile and high-performance operation.
DDR4 Memory Excellence: Elevate Your Memory with Dual Channel DDR4 4800+MHz (OC) Unlock enhanced memory performance with Dual Channel DDR4 Memory operating at an impressive 4800+MHz (OC), ensuring optimal efficiency.
Core Boost Innovation: Enhanced Layout and Digital Power Design to Propel Performance Experience the brilliance of Core Boost, featuring a premium layout and digital power design that seamlessly accommodates additional cores, guaranteeing enhanced performance.
Memory Boost Advancement: Elevate Performance, Stability, and Compatibility Discover the power of Memory Boost, an advanced technology that ensures the transmission of pure data signals for exceptional performance, stability, and compatibility.
Swift and Responsive Experience: PCIe 4.0 and Lightning Gen4 x4 M.2 Engage in swift and seamless interactions with PCIe 4.0 and the revolutionary Lightning Gen4 x4 M.2, delivering unparalleled data transfer speeds.
AUDIO BOOST: Elevate Your Auditory Journey with Studio-Grade Sound Quality Indulge in the excellence of AUDIO BOOST, rewarding your ears with the magnificence of studio-grade sound quality, offering an immersive and captivating gaming soundscape.
Steel Armor Protection: Fortify VGA Cards for Performance, Stability, and Durability Experience the steadfast protection of Steel Armor, designed to safeguard VGA cards against bending and EMI interference, ensuring superior performance, stability, and strength.
Specification:
| Model | PRO B760M-E DDR4 |
| Chipset | INTEL B760 |
| CPU SUPPORT | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 2x DDR4, Maximum Memory Capacity 64GB Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 4800+ MHz • 1DPC 2R Max speed up to 4600+ MHz |
| Onboard Graphics | 1x HDMI™ 1x VGA Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| EXPANSION SLOT | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to (From CPU) PCI_E2 PCIe 3.0 supports up to (From Chipset) |
| Storage | 1x M.2 slot M.2_1 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G port * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
| LAN | Realtek® RTL8111H Gigabit LAN |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Internal I/O | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 1x USB 3.2 Gen1 Type A |
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS | HDMI VGA Keyboard / Mouse USB 3.2 Gen 1 5Gbps (Type-A) LAN port Audio Connectors USB 2.0 USB 2.0 |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension | mATX 200mmx236.16mm |
| Warranty | 3 Years |
