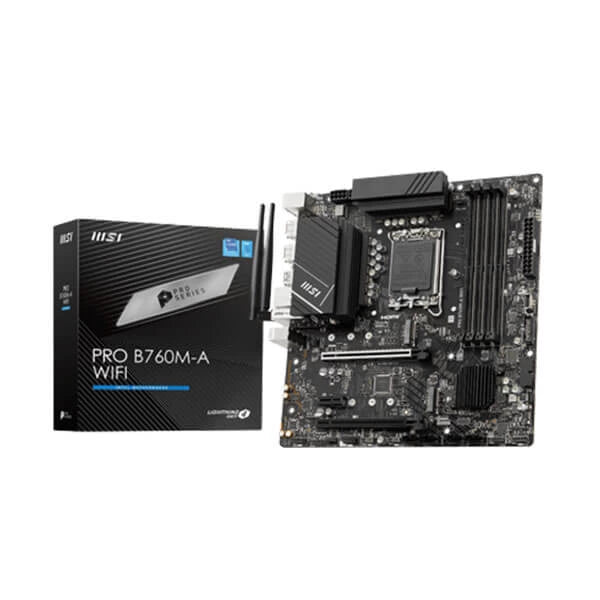

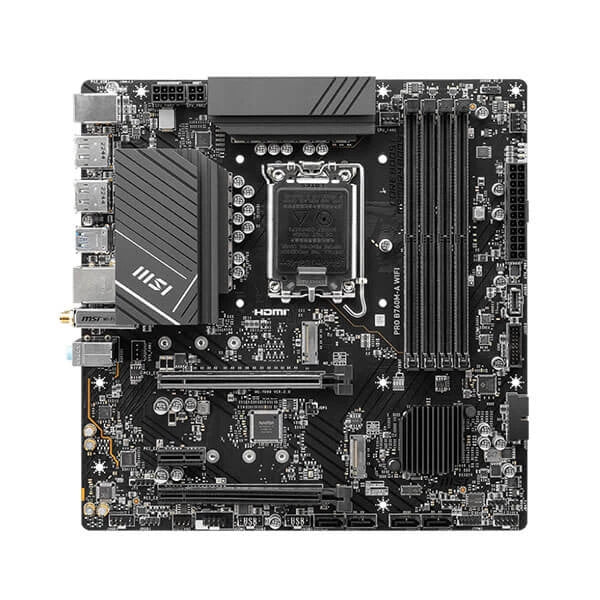

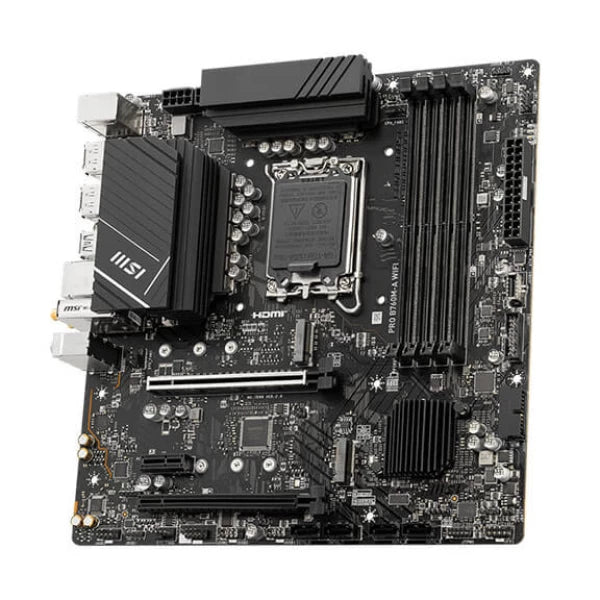

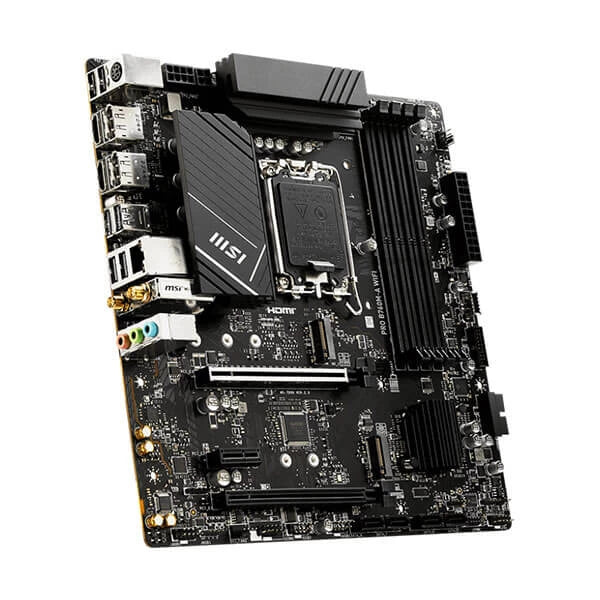

MSI Pro B760M-A WIFI DDR5 Motherboard

Highlighted Features:

Seamless Compatibility: Supports 12th/13th Gen Intel® Core™, Pentium® Gold, and Celeron® processors for the LGA 1700 socket, ensuring versatile and high-performance operation.

DDR5 Memory Pinnacle: Experience Dual Channel DDR5 Memory Operating at 6800+MHz (OC) Elevate your memory prowess with Dual Channel DDR5 Memory performing at a remarkable 6800+MHz (OC), promising enhanced speed and efficiency.

Advanced Power Architecture: 12+1 Duet Rail Power System with P-PAK, Dual 8-Pin + 4-Pin CPU Power Connectors, Core Boost, and Memory Boost Optimize power delivery with the innovative 12+1 Duet Rail Power System featuring P-PAK, dual 8-pin + 4-pin CPU power connectors, Core Boost, and Memory Boost technologies, guaranteeing peak efficiency.

Optimal Thermal Solution: Extended Heatsink, High-Quality MOSFET Thermal Pads, Additional Choke Thermal Pads, and M.2 Shield Frozr Experience optimal thermal management with an extended heatsink, MOSFET thermal pads with a 7W/mK rating, supplemental choke thermal pads, and the advanced M.2 Shield Frozr - tailored for intensive gaming sessions and non-stop performance.

Premium Build Quality: 6-Layer PCB Crafted with 2oz Thickened Copper and Server-Grade Material Embrace superior quality with a 6-layer PCB meticulously crafted using 2oz thickened copper and materials aligned with server-grade standards, ensuring durability and stability.

Swift Gaming Performance: PCIe 4.0 Slot, Lightning Gen 4 x4 M.2 Immerse yourself in swift gaming with the PCIe 4.0 slot and the cutting-edge Lightning Gen 4 x4 M.2 interface, delivering seamless and rapid data transmission.

Intel Turbo USB 3.2 Gen 2 Dominance: Fueled by Intel USB 3.2 Gen 2 Controller Experience uninterrupted connectivity and unparalleled USB speeds through Intel Turbo USB 3.2 Gen 2, a technology designed to ensure stability and rapid data transfer.

Advanced Network Advancement: 2.5G LAN with Wi-Fi 6E Solution Elevate your networking capabilities with the upgraded 2.5G LAN and Wi-Fi 6E Solution, catering to professional and multimedia demands, providing secure, stable, and swift network connections.

AUDIO BOOST: Elevate Your Auditory Experience with Studio-Grade Sound Quality Indulge your ears with the excellence of studio-grade sound quality, ensuring an immersive and captivating gaming journey.

Specification:

Model	PRO-B760M-A-WIFI-DDR5
Chipset	INTEL B760
CPU Support	Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700
Memory	4x DDR5, Maximum Memory Capacity 192GB Memory Support 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics	Support HDMI™ 2.1, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. 2x HDMI™ 2x DisplayPort
Expansion Slot	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Storage	2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G port
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear)
LAN	Realtek® RTL8125BG 2.5G LAN
Wireless Lan & Bluetooth	Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 4x USB 3.2 Gen1 Type A 1x USB 3.2 Gen1 Type C
LED Features	4x EZ Debug LED
Back Panel Ports	Keyboard / Mouse DisplayPort USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth Audio Connectors USB 2.0 HDMI™ USB 3.2 Gen 2 10Gbps (Type-A)
Operating System	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info	mATX 243.84mmx243.84mm
Warranty	3 Years
