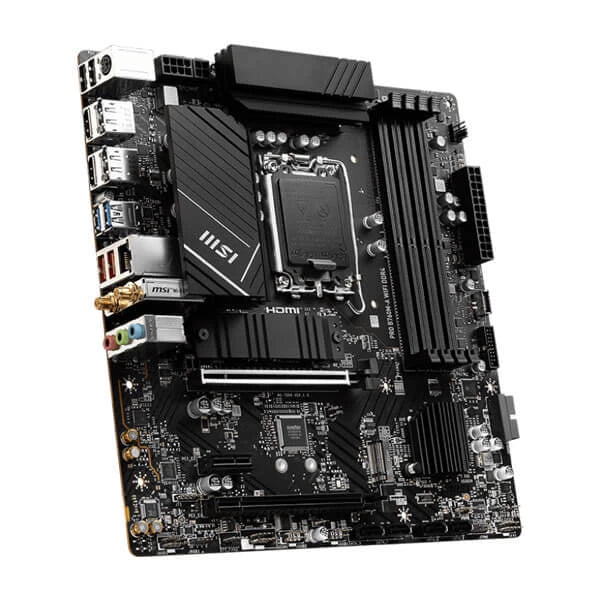

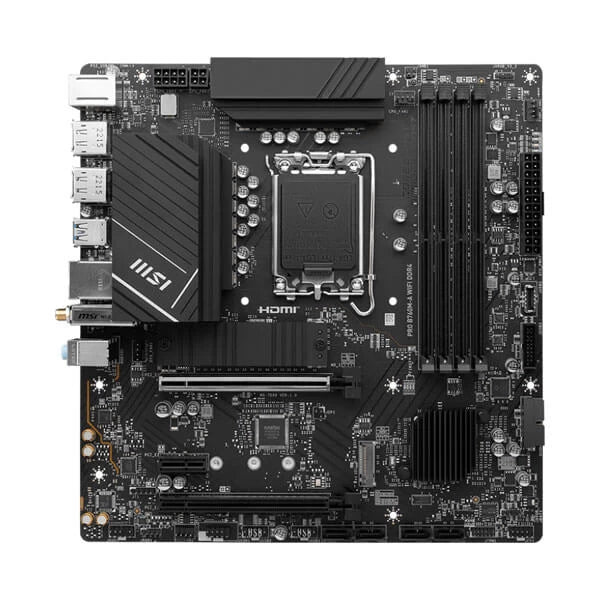

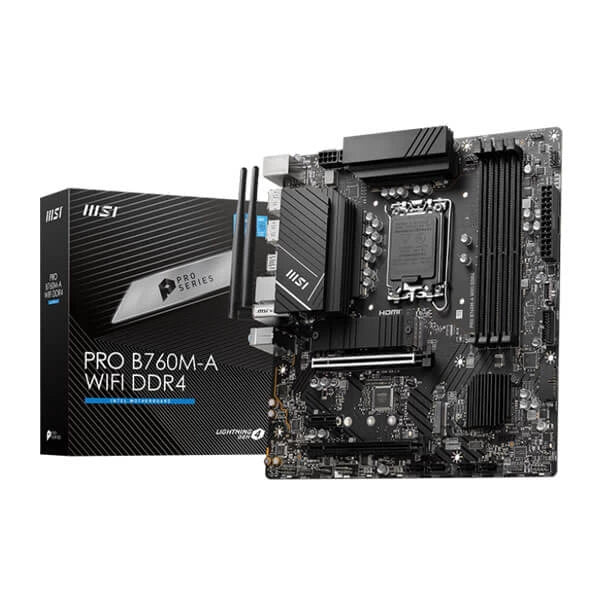

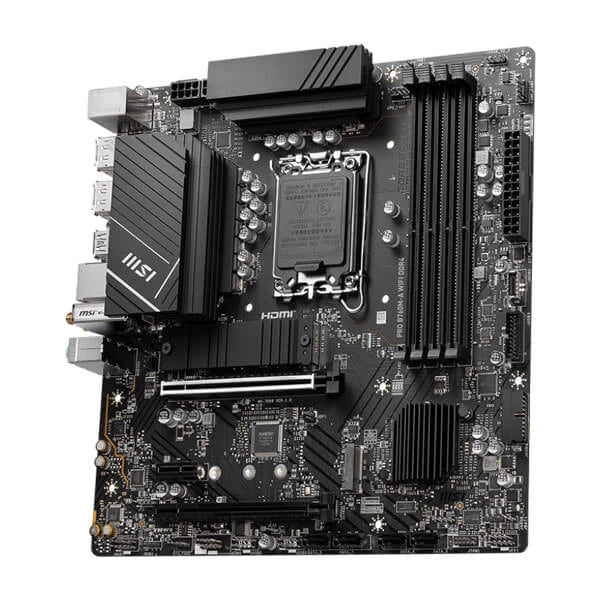

MSI Pro B760M-A WIFI DDR4 Motherboard

Regular price: Dhs. 661.75
Regular price: Dhs. 661.75; ~~Dhs. 890.00~~
Sale price
Unit price: per

Highlighted Features: Seamless Processor Compatibility: Embrace 12th/13th Gen Intel® Core™, Pentium® Gold, and Celeron® processors, tailored for the LGA 1700 socket, ensuring versatile and high-performance operation. DDR4 Memory Excellence: Experience Dual Channel DDR4 Memory Operating at 5333+MHz (OC) Elevate your...

Availability: In stock Out of stock

Product variants

Quantity

Free Delivery and Returns

Free Standard Delivery All Over UAE

We will dispatch the Product in 1-2 Days. Product will deliver in Maximum 3 - 5 Days.

You can return your order for any reason, free of charge, within 60 days.

Build Your Gaming Setup

Feel free to contact our customer support for building your dream gaming setup

Description
Reviews

Highlighted Features:

Seamless Processor Compatibility: Embrace 12th/13th Gen Intel® Core™, Pentium® Gold, and Celeron® processors, tailored for the LGA 1700 socket, ensuring versatile and high-performance operation.

DDR4 Memory Excellence: Experience Dual Channel DDR4 Memory Operating at 5333+MHz (OC) Elevate your memory capabilities with Dual Channel DDR4 Memory operating at an impressive 5333+MHz (OC), promising enhanced efficiency.

Advanced Power Architecture: 12+1 Duet Rail Power System with P-PAK, Dual 8-Pin + 4-Pin CPU Power Connectors, Core Boost, and Memory Boost Optimize power distribution with the cutting-edge 12+1 Duet Rail Power System featuring P-PAK, dual 8-pin + 4-pin CPU power connectors, Core Boost, and Memory Boost technologies, ensuring peak performance.

Premium Thermal Solution: Extended Heatsink, High-Quality MOSFET Thermal Pads, Additional Choke Thermal Pads, and M.2 Shield Frozr Indulge in optimal thermal management with an extended heatsink, MOSFET thermal pads boasting a 7W/mK rating, supplementary choke thermal pads, and the innovative M.2 Shield Frozr - all dedicated to sustaining high performance and uninterrupted gaming.

Premium Build Quality: 6-Layer PCB Crafted with 2oz Thickened Copper and Server-Grade Material Experience top-tier craftsmanship with a 6-layer PCB meticulously fashioned using 2oz thickened copper and materials adhering to server-grade standards, ensuring unmatched durability and stability.

Swift Gaming Performance: PCIe 4.0 Slot, Lightning Gen 4 x4 M.2 Engage in swift and seamless gaming with the inclusion of a PCIe 4.0 slot and the revolutionary Lightning Gen 4 x4 M.2 interface, delivering rapid and responsive data transfers.

Intel Turbo USB 3.2 Gen 2 Domination: Powered by Intel USB 3.2 Gen2 Controller Experience unrivaled connectivity and unmatched USB speeds through the prowess of Intel Turbo USB 3.2 Gen 2, designed to provide a seamless and stable connection.

Advanced Networking Advancement: 2.5G LAN with Wi-Fi 6E Solution Elevate your networking capabilities with the advanced 2.5G LAN and Wi-Fi 6E Solution, perfectly tailored for professional and multimedia applications, ensuring secure, stable, and rapid network connections.

AUDIO BOOST: Elevate Your Auditory Journey with Studio-Grade Sound Quality Savor the excellence of studio-grade sound quality, immersing yourself in a captivating and unparalleled gaming experience for your ears.

Specification:

Model	PRO B760M-A WIFI DDR4
Chipset	INTEL Z790
CPU Support	Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700
Memory	4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics	Support HDMI™ 2.1, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. 2x HDMI™ 2x DisplayPort
Expansion Slot	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Storage	2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G port
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear)
LAN	Intel® 2.5Gbps LAN
Wireless Lan & Bluetooth	Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 4x USB 3.2 Gen1 Type A 1x USB 3.2 Gen1 Type C
LED Features	4x EZ Debug LED
Back Panel Ports	Keyboard / Mouse DisplayPort USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth Audio Connectors USB 2.0 HDMI™ USB 3.2 Gen 2 10Gbps (Type-A)
Operating System	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info	mATX 243.84mmx243.84mm
Warranty	3 Years
