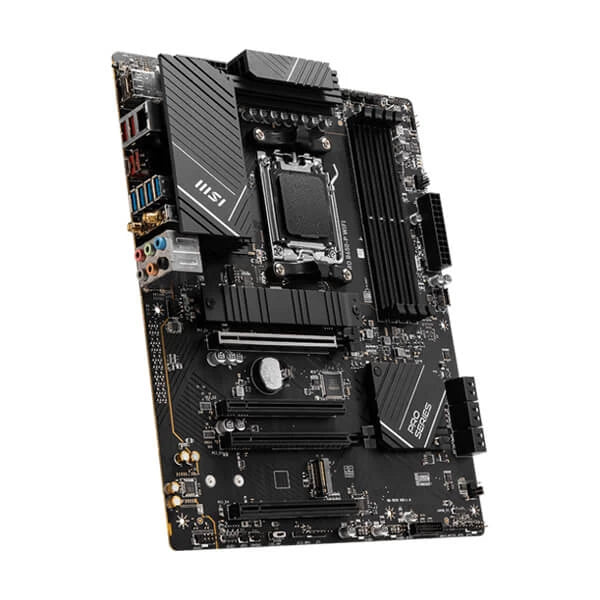

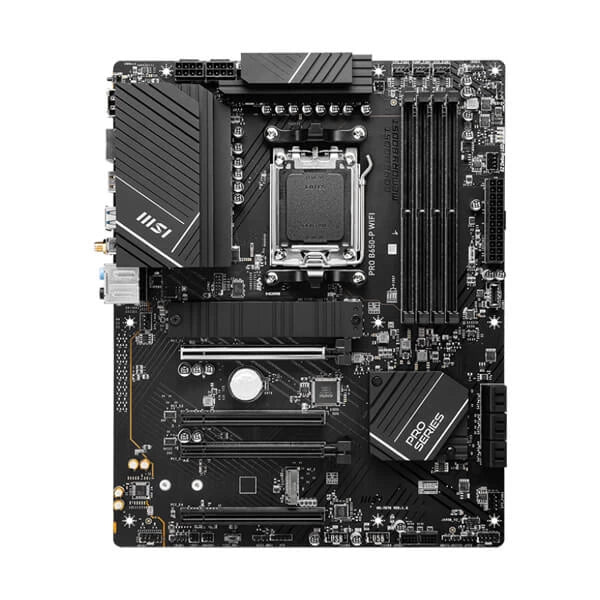

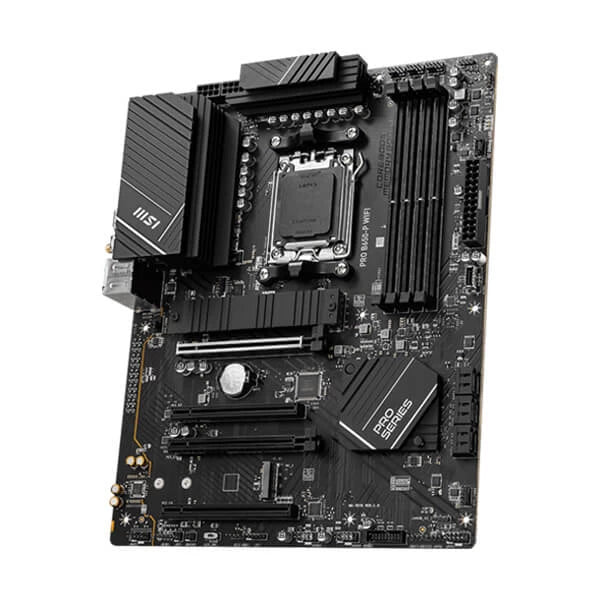

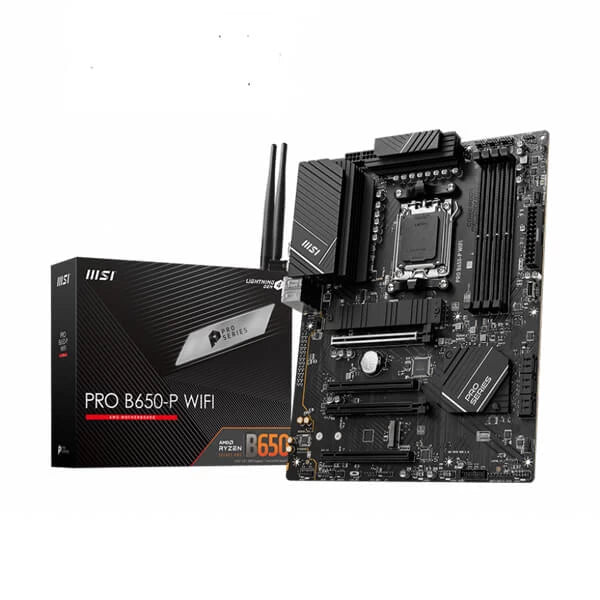

MSI Pro B650-P WIFI Motherboard

MSI Pro B650-P WIFI Motherboard

Dhs. 812.95 AED
Dhs. 1,080.00 AED Dhs. 812.95 AED
Sale Sold out
Taxes included. Shipping calculated at checkout.

Highlighted Attributes:

Unleash the Power of AMD Ryzen™ 7000 Series Desktop Processors Experience the potential of seamless compatibility with the AMD Ryzen™ 7000 Series Desktop Processors.

DDR5 Memory Pinnacle: Embrace Dual Channel DDR5 Memory Operating at 6400+MHz (OC) Elevate your memory performance with Dual Channel DDR5 Memory operating at an impressive 6400+MHz (OC), ensuring optimal speed and efficiency.

Enhanced Power Architecture: 12+2+1 Duet Rail Power System, Dual 8-Pin CPU Power Connectors, Core Boost, and Memory Boost Optimize power delivery with the advanced 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost technologies, guaranteeing efficient operation.

Premium Thermal Excellence: Extended Heatsink, Advanced MOSFET Thermal Pads, Additional Choke Thermal Pads, and M.2 Shield Frozr Indulge in premium thermal performance with an extended heatsink, high-quality MOSFET thermal pads rated for 7W/mK, supplementary choke thermal pads, and the innovative M.2 Shield Frozr, ensuring high performance and uninterrupted workflows.

Superior PCB Construction: 6-Layer PCB Crafted from 2oz Thickened Copper Experience the pinnacle of quality with a 6-layer PCB constructed using 2oz thickened copper, ensuring durability and optimal performance.

Unleash Lightning-Fast Gaming: PCIe 4.0 Slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 Immerse yourself in an unparalleled gaming experience with PCIe 4.0 slots, the innovative Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, and the swift USB 3.2 Gen 2x2, guaranteeing rapid data transfer.

Advanced Network Evolution: 2.5G LAN with Wi-Fi 6E Solution Elevate your networking capabilities with the upgraded 2.5G LAN and Wi-Fi 6E Solution, catering to professional and multimedia requirements, providing secure, stable, and swift network connections.

AUDIO BOOST: Elevate Your Sonic Experience with Studio-Grade Sound Quality Reward your ears with the excellence of studio-grade sound quality, ensuring an immersive and captivating gaming experience.

Specifications:

Chipset AMD B650
CPU SUPPORT Supports AMD Ryzen™ 7000 Series Desktop Processors
Socket AM5
Memory

4x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6400+ MHz
• 1DPC 2R Max speed up to 5800+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
Onboard Graphics 1x HDMI™
1x DisplayPort
Support HDMITM 2.1, maximum resolution of 4K 60Hz
Supports DP1.4, maximum resolution of 4K 60Hz
EXPANSION SLOT 4x PCI-E x16 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 PCIe 3.0 supports up to x1 (From Chipset)
Multi-GPU Supports AMD MULTI-GPU
Storage 2x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G port
RAID

Supports RAID 0 and RAID 1 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB 4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Realtek® 8125BG 2.5G LAN
WIRELESS / BLUETOOTH AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.2
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Internal I/O 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS
  • DisplayPort
  • 2.5G LAN
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • Wi-Fi / Bluetooth
  • Audio connectors
  • Flash BIOS Button
  • HDMI™
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • USB 3.2 Gen 2x2 20Gbps (Type-C)
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension ATX
243.84mmx304.8mm
Warranty 3 Years
