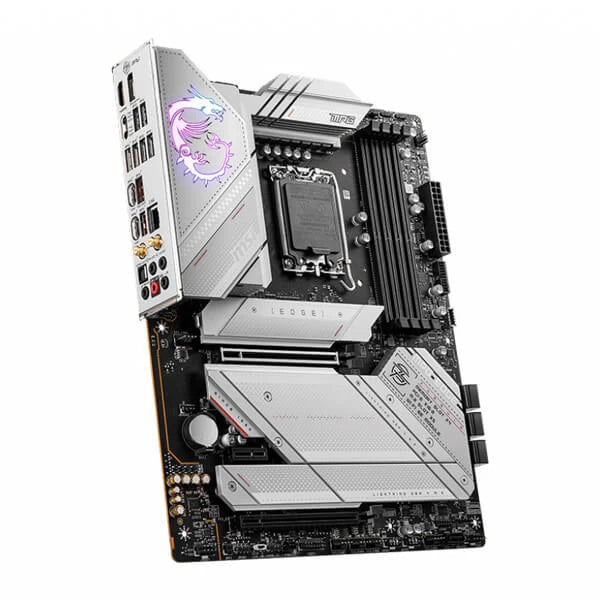

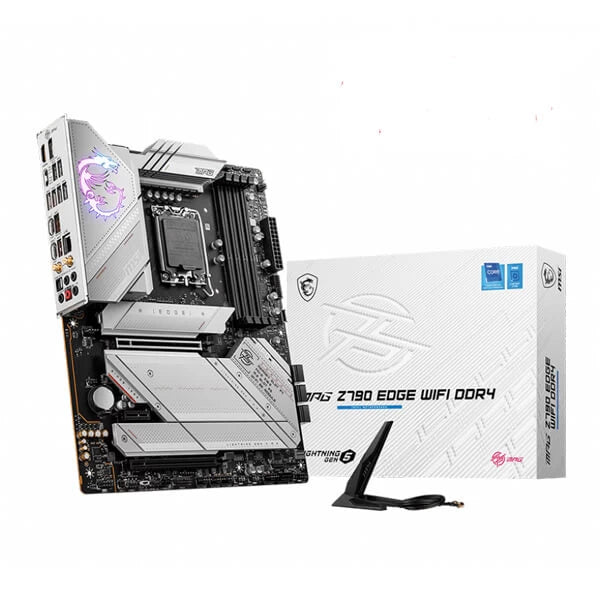

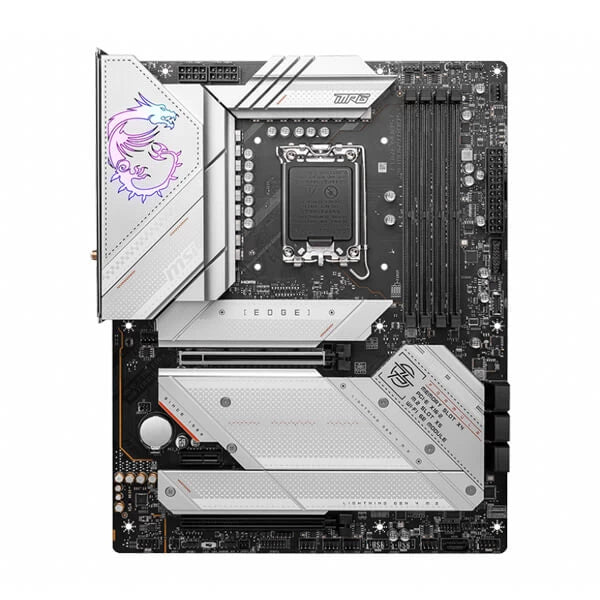

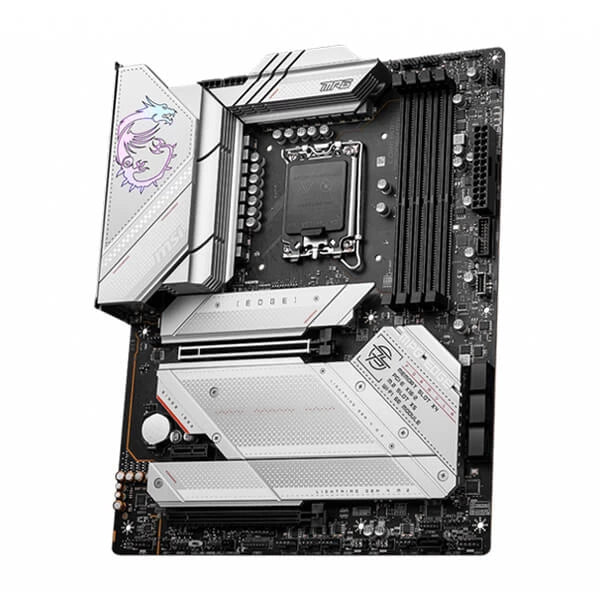

MSI MPG Z790 Edge WIFI DDR4 White Motherboard

MSI MPG Z790 Edge WIFI DDR4 White Motherboard

Dhs. 1,466.05 AED
Dhs. 1,640.00 AED Dhs. 1,466.05 AED
Sale Sold out
Taxes included. Shipping calculated at checkout.

Introducing the Incredible Features:

Seamless Compatibility: Supports 13th/12th Gen Intel® Core™, Pentium®, and Celeron® processors for the LGA 1700 socket, ensuring optimal performance and versatility.

DDR4 Memory Mastery: Unlock the potential of DDR4 Memory, scaling up to an impressive 5333+(OC) MHz, offering enhanced efficiency.

Unleash Rapid Gaming: Experience lightning-fast gaming with a PCIe 5.0 slot, Lightning Gen 4 x4 M.2, and USB 3.2 Gen 2x2, guaranteeing seamless data transfer speeds.

Optimized Power Dynamics: Elevate power delivery with the advanced 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost technologies, ensuring top-tier efficiency.

Cutting-Edge Thermal Solution: Elevate your gaming performance with a larger heatsink enriched with heat-pipe technology, bolstered by 7W/mk-rated MOSFET thermal pads, extra choke thermal pads, and the M.2 Shield Frozr. Designed to sustain high-performance demands and unrelenting gaming experiences.

Advanced Network Connectivity: Upgraded 2.5G LAN and Intel Wi-Fi 6E Solution cater to the needs of professionals and multimedia enthusiasts alike, providing a secure, stable, and ultra-fast network connection.

Immersive Audio Experience: Elevate your gaming soundscape with AUDIO BOOST 5, offering studio-grade sound quality for a truly captivating gaming journey.

Premium Quality Build: Crafted with a top-notch 6-layer PCB made from server-grade materials, ensuring durability and reliability.

Simplified Installation: Enjoy the convenience of the pre-installed I/O Shield, providing better EMI protection and streamlining the installation process.

Specification,

Chipset INTEL Z790
CPU SUPPORT Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
Memory

4x DDR4, Maximum Memory Capacity 128GB
Memory Support 5333/5200/5066/5000/4800/4600/4533/4400/4266/4000/3866/3733/3600/3466/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133(By JEDCE & POR)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz

Supports Intel® XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory


Onboard Graphics 1x HDMI™
1x DisplayPort
Support HDMI™ 2.1, maximum resolution of 4K 60Hz
Support DP 1.4, maximum resolution of 8K 60Hz
EXPANSION SLOT 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Storage 5x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_5 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
7x SATA 6G port
RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB 4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
4x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Intel® 2.5Gbps LAN
WIRELESS / BLUETOOTH

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz(160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA
Audio Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Internal I/O 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
LED FEATURE 4x EZ Debug LED
1x EZ LED Control switch
BACK PANEL PORTS
  • Display Port
  • USB 3.2 Gen 1 5 Gbps (Type-A)
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • 2.5G LAN
  • Wi-Fi / Bluetooth
  • Audio Connectors
  • HDMI™
  • Clear CMOS / Flash BIOS
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • USB 3.2 Gen 2 10Gbps (Type-C)
  • USB 3.2 Gen 2x2 20Gbps (Type-C)
  • Optical S/PDIF Out
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension ATX
243.84mmx304.8mm
Warranty 3 Years
