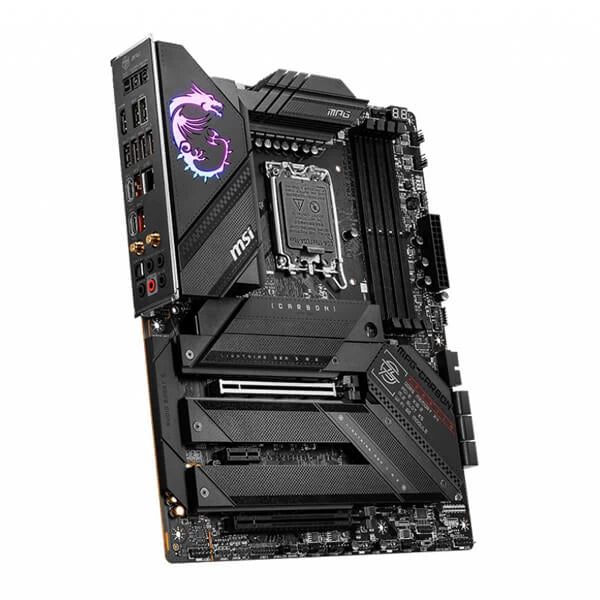

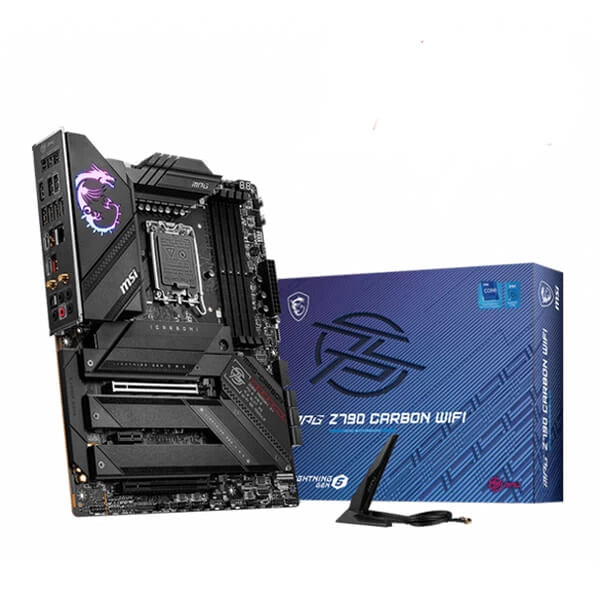

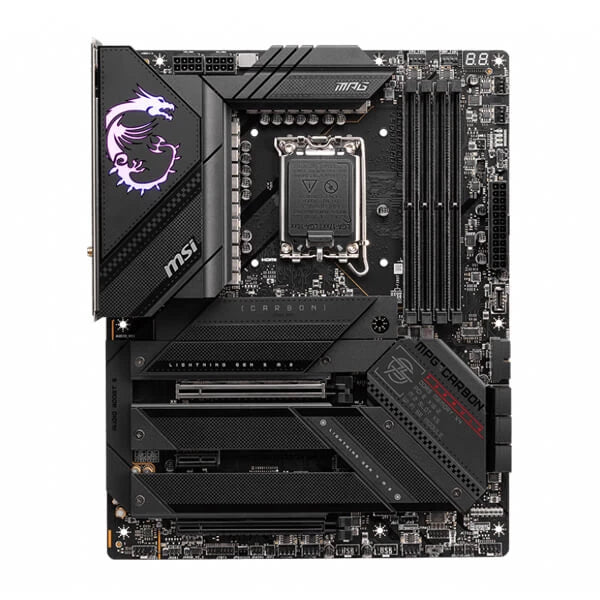

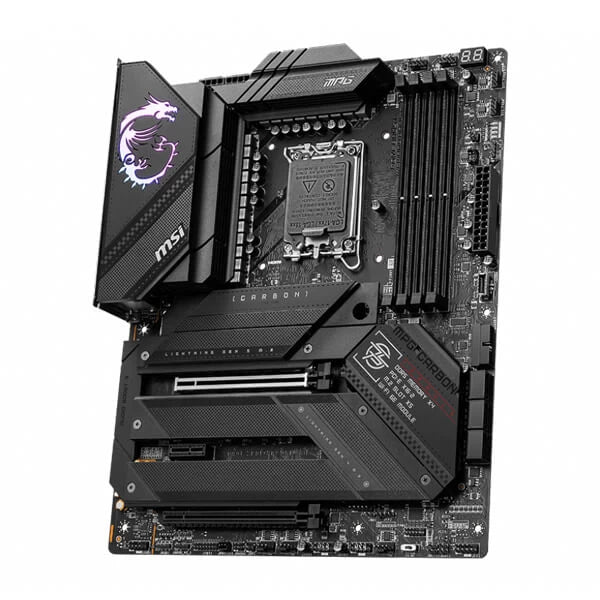

MSI MPG Z790 Carbon WIFI Motherboard

Dhs. 1,873.45
Dhs. 1,873.45
Dhs. 2,109.00
Supports LGA 1700 socket-compatible 13th and 12th generation Intel Core, Pentium, and Celeron processors.up to 7600+(OC) MHz DDR5 memory supportExperience with Lightning Fast Games: Lightning Gen 5 x4 M.2, a PCIe 5.0 slot, and USB 3.2 Gen 2x2Core Boost, Memory...
Availability: In stock Out of stock

Free Delivery and Returns

Free Standard Delivery All Over UAE

We will dispatch the Product in 1-2 Days. Product will deliver in Maximum 3 - 5 Days.

You can return your order for any reason, free of charge, within 60 days.

Build Your Gaming Setup

Feel free to contact our customer support for building your dream gaming setup
MSI MPG Z790 Carbon WIFI MotherboardMSI MPG Z790 Carbon WIFI MotherboardMSI MPG Z790 Carbon WIFI MotherboardMSI MPG Z790 Carbon WIFI Motherboard

Supports LGA 1700 socket-compatible 13th and 12th generation Intel Core, Pentium, and Celeron processors.

up to 7600+(OC) MHz DDR5 memory support
Experience with Lightning Fast Games: Lightning Gen 5 x4 M.2, a PCIe 5.0 slot, and USB 3.2 Gen 2x2

Core Boost, Memory Boost, Direct 19+1+1 phases power, Enhanced Power Design

High-performance systems and non-stop gaming are made possible by the premium thermal solution, which includes an expanded heatsink with a heat-pipe, MOSFET thermal pads certified for 7W/mk, additional choke thermal pads, and M.2 Shield Frozr.

Intel Wi-Fi 6E with 2.5G LAN Solution: upgraded network solution for use in the workplace and with multimedia. provides a fast, reliable, and secure network connection

AUDIO BOOST 5: For the most immersive gaming experience, reward your ears with studio-grade sound quality.

Exceptional PCB: 8-layer PCB produced by

Specification:

Chipset INTEL Z790
CPU SUPPORT Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
Memory

4x DDR5, Maximum Memory Capacity 128GB
Memory Support 7600+(OC)/7400 (OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC) /4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7600+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics 1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz
EXPANSION SLOT 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Storage 5x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_5 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
6x SATA 6G port
RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB 4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
6x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2x2 Type C (Rear)
1x USB 3.2 Gen2x2 Type C (Front)
LAN Intel® 2.5Gbps LAN
WIRELESS / BLUETOOTH

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA
Audio Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Internal I/O 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen 2x2 Type C
LED FEATURE 1x EZ LED Control switch
1x 2-Digit Debug Code LED
4x EZ Debug LED
BACK PANEL PORTS
  • Clear CMOS / Flash
  • USB 3.2 Gen 1 5 Gbps (Type-A)
  • 2.5G LAN
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • Audio Connectors
  • Smart Button
  • HDMI™
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • USB 3.2 Gen 2 10Gbps (Type-C)
  • USB 3.2 Gen 2x2 20Gbps (Type-C)
  • Wi-Fi / Bluetooth
  • Optical S/PDIF Out
PCB Dimension ATX
243.84mmx304.8mm
Warranty 3 Years
