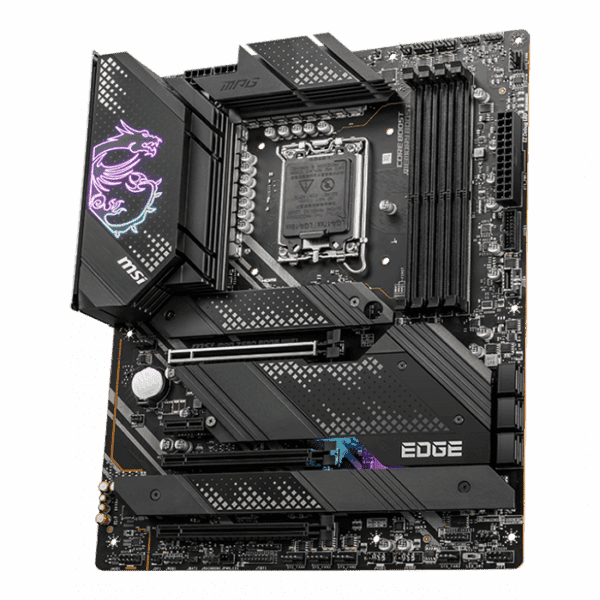

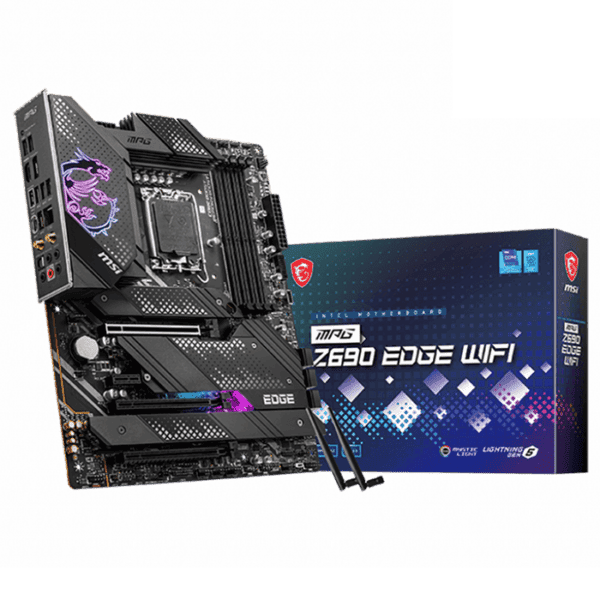

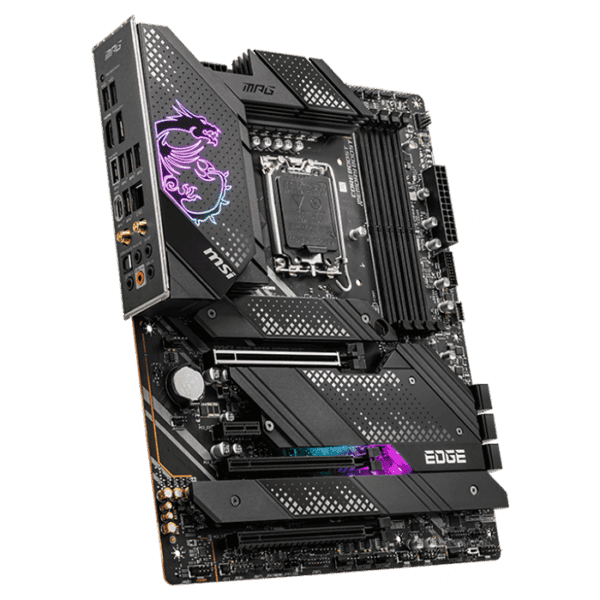

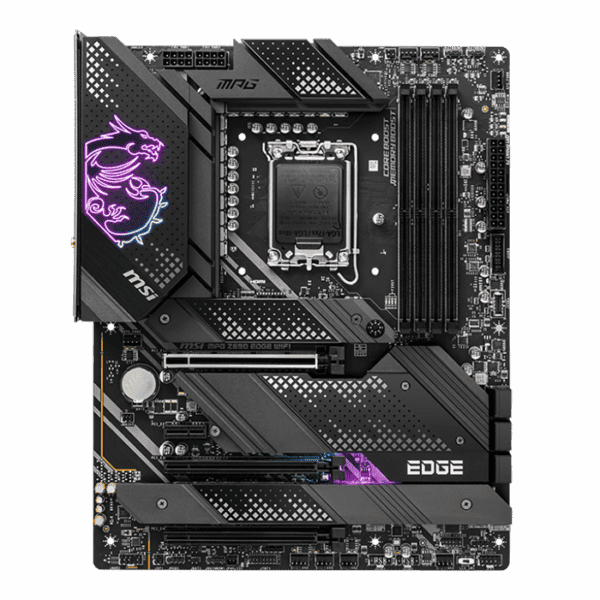

MSI MPG Z690 Edge Wifi ATX Motherboard, LGA 1700 Socket, Z690 Chipset, 2.5G LAN, Intel Wifi 6, Bluetooth 5.2, Supports DDR5 Memory, PCIe 5.0 Slot, Mystic Light Sync
MSI MPG Z690 Edge Wifi ATX Motherboard, LGA 1700 Socket, Z690 Chipset, 2.5G LAN, Intel Wifi 6, Bluetooth 5.2, Supports DDR5 Memory, PCIe 5.0 Slot, Mystic Light Sync
Couldn't load pickup availability
Supporting 12th Gen Intel® Core™, Pentium®, and Celeron® processors for the LGA 1700 socket.
DDR4 Memory Support:
Offers speeds up to 5200+(OC) MHz for enhanced performance.
Lightning-Fast Gaming Experience:
Includes a PCIe 5.0 slot, Lightning Gen 4 x4 M.2, and USB 3.2 Gen 2×2 for accelerated gaming experiences.
Enhanced Power Design:
Incorporates a direct 16+1+1 phases power system, dual 8-pin CPU power connectors, Core Boost, and Memory Boost for optimized performance.
Premium Thermal Solution:
Features an aluminum cover with a heatsink, heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads, and M.2 Shield Frozr, ensuring high performance and uninterrupted gaming experiences.
MYSTIC LIGHT:
Allows control of 16.8 million colors and fancy lighting effects in a single click. Supports RGB and RAINBOW (ARGB) LED strips as well as Ambient devices.
2.5G LAN with LAN Manager and Intel Wi-Fi 6 Solution:
Enhanced network solutions for professional and multimedia usage, offering secure, stable, and rapid network connections.
AUDIO BOOST 5:
Delivers studio-grade sound quality for an immersive gaming experience.
High-Quality PCB:
Built on a 6-layer PCB made from 2oz thickened copper and server-grade material for enhanced durability and performance.
Pre-installed I/O Shield:
Offers improved EMI protection and convenience during installation.
| Processor | Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Processor socket LGA1700 Please go to intel.com for compatibility information. See supported processors |
| Chipset | Intel® Z690 Chipset |
| Memory | 4x DDR4 memory slots, support up to 128GB
Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 5200+ MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Please refer to www.msi.com for more information on compatible memory |
| Expansion Slots | 3x PCIe x16 slots
PCI_E1 slot (From CPU) Supports PCIe 5.0 x16 PCI_E3 & PCI_E4 slots (From Z690 chipset) Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot (From Z690 chipset |
| Onboard Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Multi-GPU | Supports AMD® CrossFire™ Technology |
| Storage | 6x SATA 6Gb/s ports
SATA5~8 (From Z690 Chipset) SATAA~B (From ASMedia ASM1061) 2 x SATA 6Gb/s ports – SATAA & SATAB (From ASMedia ASM1061) 4x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2260/ 2280/ 22110 storage devices M2_2 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports 2260/ 2280 storage devices M2_3 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_4 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2~4 support Intel® Optane™ Memory Supports Intel® Smart Response Technology for Intel® Core™ processors |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices SATAA & SATAB do not support RAID function. |
| USB | Intel® Z690 Chipset
1x USB 3.2 Gen 2×2 20Gbps Type-C port on the back panel 6x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 5 Type-A ports on the back panel) 2x USB 2.0 Type-A ports on the back panel 2x USB 3.2 Gen 1 5Gbps ports available through the internal USB connector USB Hub-GL850G 4x USB 2.0 ports available through internal connectors |
| Audio | Realtek® ALC4080 Codec
7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN | 1x Intel® I225V 2.5Gbps LAN controller |
| WiFi & Bluetooth | Intel® Wi-Fi 6
The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2 |
| Internal connectors | 1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1xTPM module connector 1x Clear CMOS jumper 1x Tuning controller connector 1x TBT connector (Supports RTD3) |
| LED Feature | 1x 4-pin RGB LED connector
3x 3-pin RAINBOW LED connectors 1x EZ LED Control switch 4x EZ Debug LED/td> |

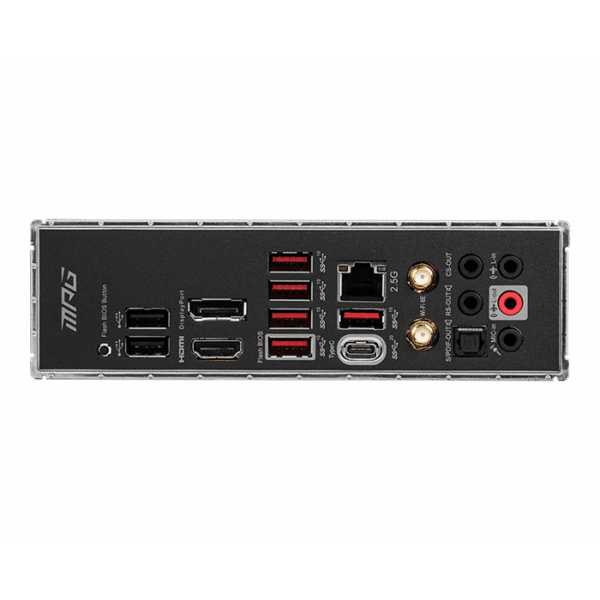

| Back panel ports | DisplayPort
2.5G LAN Wi-Fi/Bluetooth Audio Connectors Flash BIOS Button USB 2.0 HDMI USB 3.2 Gen 2 10Gbps Type-A USB 3.2 Gen 2×2 20Gbps Type-C Optical S/PDIF Out |
| Dimensions | ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Mounting | 9 mounting holes |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Warranty | 3 Years |
