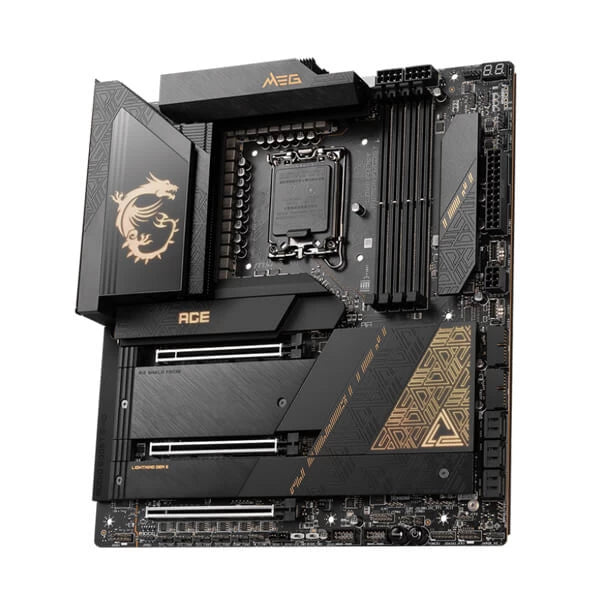

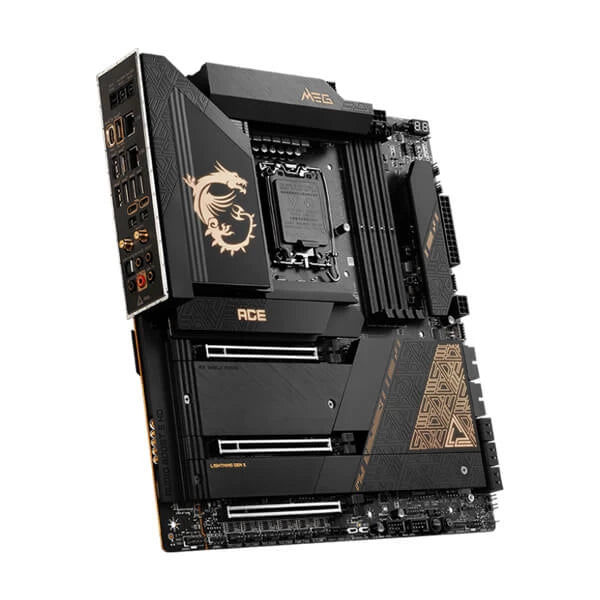

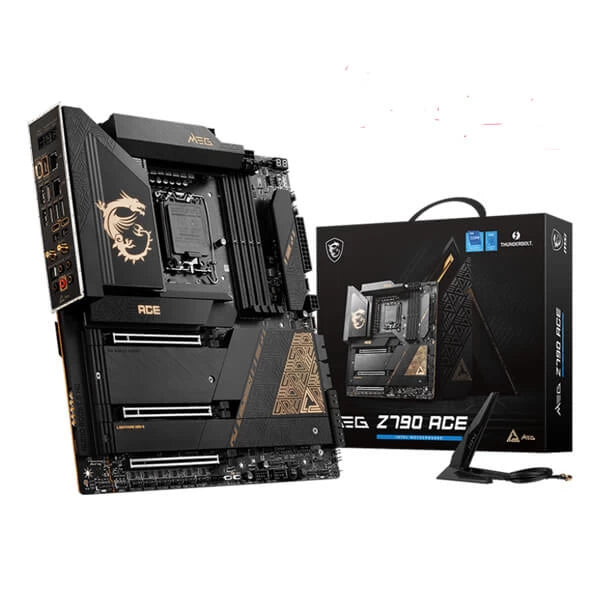

MSI MEG Z790 ACE (Wi-Fi) Motherboard

MSI MEG Z790 ACE (Wi-Fi) Motherboard

Dhs. 2,429.95 AED
Dhs. 2,650.00 AED Dhs. 2,429.95 AED
Sale Sold out
Taxes included. Shipping calculated at checkout.

Features:

supports LGA 1700 socket for 12th and 13th generation Intel Core, Pentium Gold, and Celeron processors.

Supports Dual Channel DDR5 7800+MHz (OC) DDR5 Memory

Dual Thunderbolt 4 ports offer dependable communication and an improved user experience. They support Thunderbolt USB-C at genuine 40 Gb/s speeds, 8K display support, Daisy-Chaining, and Multi-Port Accessory Architecture.

Extreme Power Design: A 105A Smart Power Stage, 24+1+2 phases of power, and two CPU power connectors are ready to unleash the ultimate performance.

Maximum 5 x M.2 connections: For the fastest storage performance, onboard quintuple M.2 connections with one PCIe 5.0 solution are provided. The double-sided Shield Frozr architecture makes M.2 SSDs quicker while keeping them safe and reducing throttling.

Outstanding Cooling Solution: Double-sided 7W/mK thermal pads, Direct Touch Cross Heat-pipe, Aluminum Backplate, Stacked Fin Array, and

Specifications:

Chipset INTEL Z790
CPU SUPPORT Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
Memory

4x DDR5 UDIMM, Maximum Memory Capacity 128GB
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics 1x Type-C DisplayPort
Supports a maximum resolution of 4K 60Hz
Onboard Thunderbolt Thunderbolt chip JHL8540
2x Thunderbolt4 (USB-C) ports
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel)
EXPANSION SLOT 3x PCI-E x16 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Multi-GPU Supports AMD MULTI-GPU
Storage 5x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
M.2_4 (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_5 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices
6x SATA 6G port
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB 4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Front)
7x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
2x USB 3.2 Gen2x2 Type C (Front)
LAN 2x Intel® 2.5Gbps LAN
WIRELESS / BLUETOOTH

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA
Audio Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
Internal I/O 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
2x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Water Flow connector
1x Slow Mode Booting Jumper(JSLOW)
1x Front Audio (JAUD)
2x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
2x USB 3.2 Gen1 Type A
2x USB 3.2 Gen 2x2 Type C
V-check point
LED FEATURE 1x EZ LED Control switch
4x EZ Debug LED
1x 2-Digit Debug Code LED
BACK PANEL PORTS Clear CMOS Button
Flash BIOS Button
2.5G LAN
2.5G LAN
Thunderbolt 4 40Gbps (Type-C)
Wi-Fi / Bluetooth
Audio Connectors
Smart Button
USB 3.2 Gen 2 10Gbps (Type-C Display port)
USB 3.2 Gen 2 10Gbps (Type-A)
Mini DisplayPort Input (for Thunderbolt passthrough)
Optical S/PDIF-Out
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension E-ATX
277mmx304.8mm
Warranty 3 Years
