Compatible with 10th Gen Intel® Core™, Pentium®, and Celeron® processors for the LGA 1200 socket.
Supports DDR4 Memory, with speeds of up to 5000(OC) MHz.
Prepared for the Future:
Equipped with Lightning Gen 4 Solution, ensuring future-proof compatibility.
Dual Thunderbolt™ 3 ports for unparalleled interface bandwidth speeds of up to 40Gbps, supporting up to six daisy-chained devices.
Dynamic Dashboard II:
Features a built-in vibrant OLED screen panel, displaying the status of GODLIKE and showcasing your unique personality.
Exceptional Power Delivery:
Incorporates INTERSIL digital PWM, featuring 16+1+1 phases with 90A Smart Power Stage, dual CPU power connectors, and an exclusive Mirrored Power Arrangement to unleash the full potential of your processors.
Efficient Cooling Solution:
Utilizes a Stacked Fin Array, VRM Heat-pipe, Frozr Heatsink, MOSFET Baseplate, and M.2 Shield Frozr to ensure peak performance with low temperatures.
Cutting-Edge Network Features:
Includes onboard 10G Super LAN, 2.5G LAN, and the latest Wi-Fi 6 solution, ensuring a seamless online experience without lags.
Smart Button Functionality:
A single button with multiple hardware control options, allowing you to reset the computer, enable Safe Boot, activate Turbo Fan, and control EZ LED with a single click.

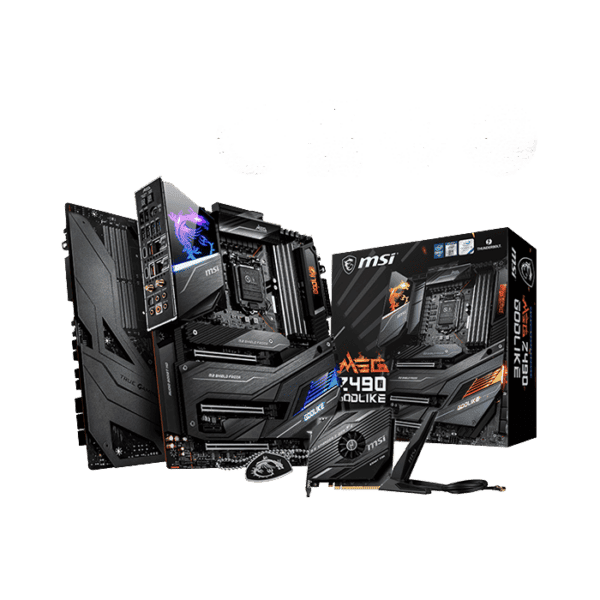

M.2 XPANDER-Z GEN 4 S:
This PCI-Express card provides two additional M.2 slots with a smart fan cooling solution, maximizing your storage capacity at maximum speed.
Specification,
| Processor |
Supports 10th Gen Intel® Core™ and Pentium® Gold /Celeron® processors for LGA 1200 socket |
| Chipset |
Intel® Z490 Chipset |
| Memory |
- 4x DDR4 memory slots, support up to 128GB
- Supports 1R 2133/2666/2933 MHz
- 1DPC 1R Max speed up to 5000+ MHz
- 1DPC 2R Max speed up to 4400+ MHz
- 2DPC 1R Max speed up to 4400+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
- Supports Dual-Channel mode
- Supports non-ECC mode, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
|
| Expansion Slots |
- 3x PCIe 3.0 x16 slots, support x16/ x0/ x4 or x8/ x8/ x4 mode
- 1x PCIe 3.0 x1 slot
|
| Multi-GPU |
- Supports 2-Way NVIDIA® SLI™ Technology
- Supports 3-Way AMD® CrossFire™ Technology
|
| Onboard Graphics |
Intel® JHL7540 Thunderbolt™ 3 Controller
- 2x Thunderbolt™ 3 (Type-C) ports on the back panel
- Supports Thunderbolt™ 3 with a maximum resolution of 5120x2880 @60 Hz
- Supports DisplayPort 1.4 with a maximum resolution of 4096x2304 @60 Hz
- Maximum shared memory is 1GB
|
| Storage |
Intel® Z490 Chipset
- 6x SATA 6Gb/s ports
- 3x M.2 slots (Key M)
- M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
- M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
- M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
- Intel® Optane™ Memory Ready
- Supports Intel® Smart Response Technology for Intel Core™ processors
|
| RAID |
Intel® Z490 Chipset
- Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 5 for M.2 PCIe storage devices
|
| USB |
Intel® Z490 Chipset
- 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector)
- 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
ASMedia® ASM1074 Chipset
- 8x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 4 ports through the internal USB 3.2 Gen 1 5Gbps connectors)
Intel® JHL7540 Thunderbolt™ 3 Controller
- 2x USB 3.2 Gen 2 10Gbps Type-C ports on the back panel
|
| Audio |
Realtek® ALC1220 Codec + ESS E9018 combo DAC
- 7.1-Channel High Definition Audio
- Supports Optical S/PDIF output
|
| Thunderbolt 3™ |
Intel® JHL7540 Thunderbolt™ 3 Controller
- 2x Thunderbolt™ 3 (USB Type-C) ports on the back panel
- Supports up to 40 Gbps transfer rate with Thunderbolt 3 devices
- Supports up to 10 Gbps transfer rate with USB 3.2 Gen 2 10Gbps devices
- Supports up to 5V/3A , 15W power charging
- Supports Daisy-chain up to six ThunderboltTM 3 devices
|
| LAN |
- 1x Aquantia® AQC107 10G LAN controller
- 1x Realtek® RTL8125B 2.5G LAN controller
|
| WiFi & Bluetooth |
Intel® AX201
- Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
- WiFi 6 Pre-Certified
- Supports Bluetooth® 5.1 , FIPS, FISMA
- The Wireless module is pre-install in the M2 (Key-E) slot
|
| Internal connectors |
- 1x 24-pin ATX main power connector
- 2x 8-pin ATX 12V power connectors
- 1x 6-pin ATX PCIE power connector
- 6x SATA 6Gb/s connectors
- 3x M.2 slots (M-Key)
- 1x USB 3.2 Gen 2 10Gbps Type-C port
- 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump fan connector
- 8x 4-pin system fan connectors
- 1x 3-pin Water Flow connector
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 2x 2-pin Thermal Sensors connectors
- 1x TPM module connector
- 1x 4-pin RGB LED connector
- 2x 3-pin RAINBOW LED connectors
- 1x 3-pin CORSAIR LED connector
|

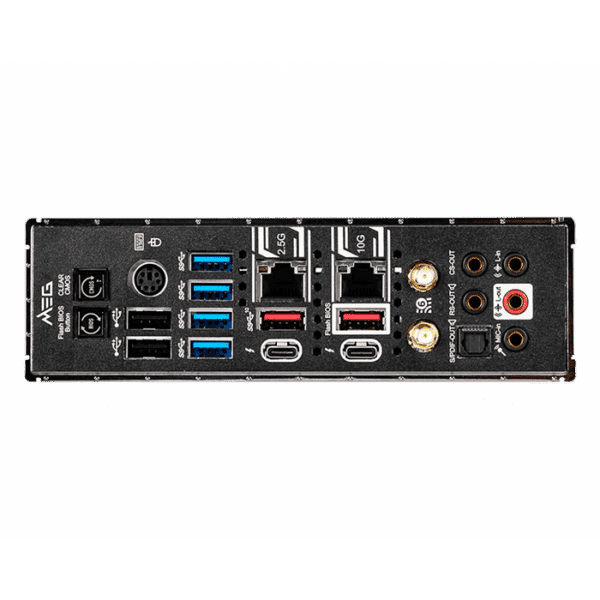

| Back panel ports |
- Clear CMOS Button
- PS/2 Keyboard / Mouse Port
- USB 3.2 Gen1 5Gbps (Type-A)
- 2.5G LAN
- 10G Super LAN
- Wi-Fi /Bluetooth Antenna Connectors
- HD Audio Connectors
- Flash BIOS Button
- USB 2.0
- Thunderbolt 3 (40Gbps)
- USB 3.2 Gen2 10Gbps (Type-A)
- Optical S/PDIF-Out
|
| Dimensions |
- 12 in. x 10.9 in. (30.5 cm x 27.7 cm)
- E-ATX Form Factor
|
| Mounting |
9 mounting holes |
| Operating System |
Support for Windows® 10 64-bit |
| Warranty |
3 Years |
