Compatible with 10th Gen Intel® Core™, Pentium®, and Celeron® processors designed for the LGA 1200 socket.
Supports DDR4 Memory, with speeds reaching up to 4800(OC) MHz.
Prepared for the Future:
Equipped with Lightning Gen 4 Solution, ensuring future-proof compatibility.
Mystic Light: Offering a spectrum of 16.8 million colors and 29 dynamic effects, all controllable with a single click. Mystic Light Extension supports RGB, RAINBOW, and CORSAIR LED strips.
Exceptional Power Delivery:
Employs INTERSIL digital PWM, featuring 16+1 phases with 90A Smart Power Stage, dual CPU power connectors, and an exclusive Mirrored Power Arrangement to unleash the full potential of your processors.
Efficient Cooling Solution:
Incorporates the Frozr Heatsink, VRM Heat-pipe, MOSFET Baseplate, and M.2 Shield Frozr to ensure peak performance with low temperatures.
Cutting-Edge Network Features:
Features onboard 2.5G LAN in addition to Gigabit LAN and the latest Wi-Fi 6 solution, guaranteeing a seamless online experience without lags.
Smart Button Functionality:
A single button with multiple hardware control options, allowing you to reset the computer, enable Safe Boot, activate Turbo Fan, and control EZ LED with a single click.
Triple Turbo M.2 with Shield Frozr:
Turbo M.2 offers blazing-fast PCI-E Gen3 x4 performance with transfer speeds of up to 32 Gb/s, perfect for the latest SSDs.
Audio Boost HD: Delivers isolated audio with a high-quality audio processor, ESS DAC, and Nahimic technology, ensuring the most immersive gaming audio experience.
Specification,
| Processor |
Supports 10th Gen Intel® Core™ and Pentium® Gold /Celeron® processors for LGA 1200 socket |
| Chipset |
Intel® Z490 Chipset |
| Memory |
- 4x DDR4 memory slots, support up to 128GB
- Supports 1R 2133/2666/2933 MHz
- 1DPC 1R Max speed up to 4800+ MHz
- 1DPC 2R Max speed up to 4266+ MHz
- 2DPC 1R Max speed up to 4400+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
- Supports Dual-Channel mode
- Supports non-ECC mode, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
|
| Expansion Slots |
- 3x PCIe 3.0 16 slots (2 from CPU, 1 from PCH, support 16/0/4, 8/8/4)
- 2x PCIe x1 slots (from PCH)
|
| Multi-GPU |
- Supports 2-Way NVIDIA® SLI™ Technology
- Supports 3-Way AMD® CrossFire™ Technology
|
| Storage |
Intel® Z490 Chipset
- 6x SATA 6Gb/s ports
- 3x M.2 slots (Key M)
- M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
- M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
- M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
- Intel® Optane™ Memory Ready
- Supports Intel® Smart Response Technology for Intel Core™ processors
|
| RAID |
Intel® Z490 Chipset
- Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 5 for M.2 PCIe storage devices
|
| USB |
Intel® Z490 Chipset
- 4x USB 3.2 Gen 2 10Gbps ports (3 Type-A ports on the back panel, 1 Type-C internal connector)
- 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal USB connector)
- 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
ASMedia® 3241 chipset
- 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
|
| Audio |
Realtek® ALC1220 Codec + ESS SABRE9018Q2C combo DAC
- 7.1-Channel High Definition Audio
- Supports Optical S/PDIF output
|
| LAN |
- 1x Realtek® 8125B 2.5G LAN controller
- 1x Intel® I219V 1G LAN controller
|
| WiFi & Bluetooth |
Intel® AX201
- Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
- WiFi 6 Pre-Certified
- Supports Bluetooth® 5.1 , FIPS, FISMA
- The Wireless module is pre-install in the M2 (Key-E) slot
|
| Internal connectors |
- 1x 24-pin ATX main power connector
- 2x 8-pin ATX 12V power connectors
- 6x SATA 6Gb/s connectors
- 3x M.2 slots (M-Key)
- 1x USB 3.2 Gen 2 10Gbps Type-C port
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump connector
- 6x 4-pin system fan connectors
- 1x front panel audio connector
- 2x system panel connectors
- 1x Chassis Intrusion connector
- 1x slow mode jumper
- 1x power button
- 1x reset button
- 1x 4-pin RGB LED connector
- 2x 3-pin RAINBOW LED connectors
- 1x 3-pin CORSAIR LED connector
|

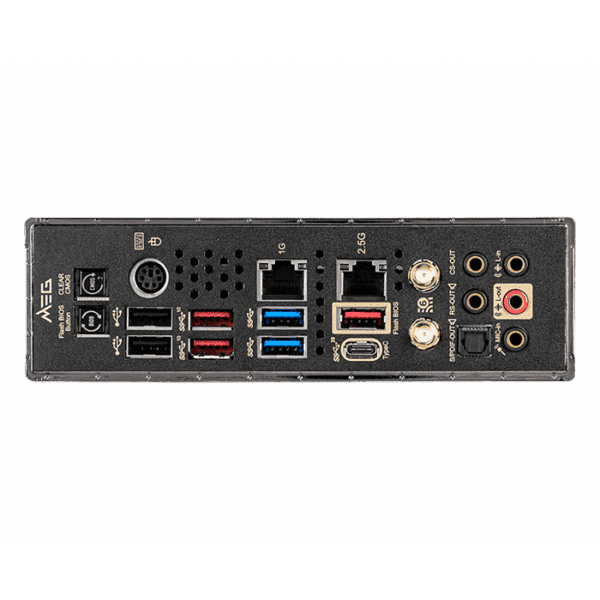

| Back panel ports |
- Clear CMOS Button
- PS/2 Keyboard / Mouse Port
- 1G LAN
- 2.5G LAN
- Wi-Fi /Bluetooth Antenna Connectors
- HD Audio Connectors
- Flash BIOS Button
- USB 2.0 Ports
- USB 3.2 Gen 2 10Gbps (Type-A)
- USB 3.2 Gen 1 5Gbps (Type-A)
- USB 3.2 Gen 2x2 20Gbps (Type-C)
- Optical S/PDIF-Out
|
| Dimensions |
- 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
- ATX Form Factor
|
| Mounting |
9 mounting holes |
| Operating System |
Support for Windows® 10 64-bit |
| Warranty |
3 Years |
