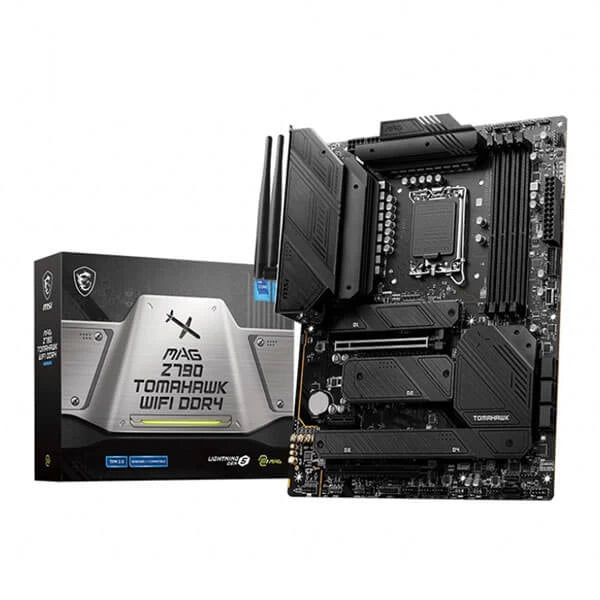

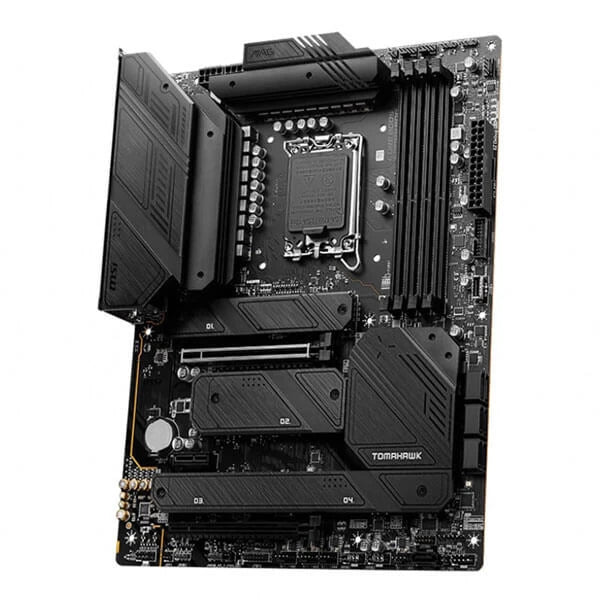

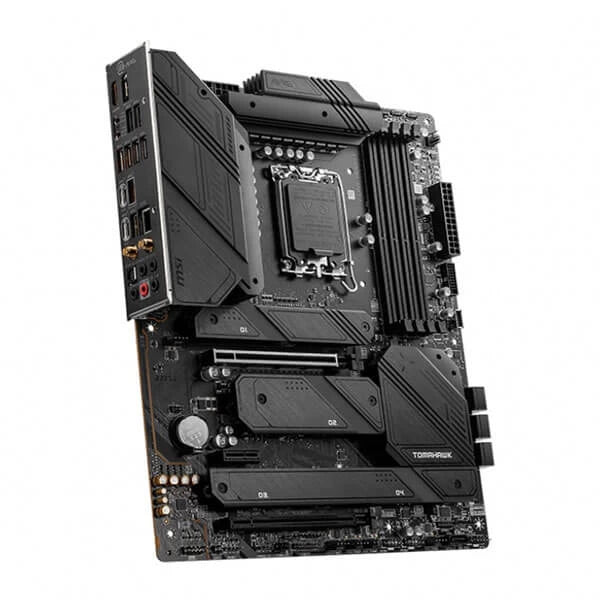

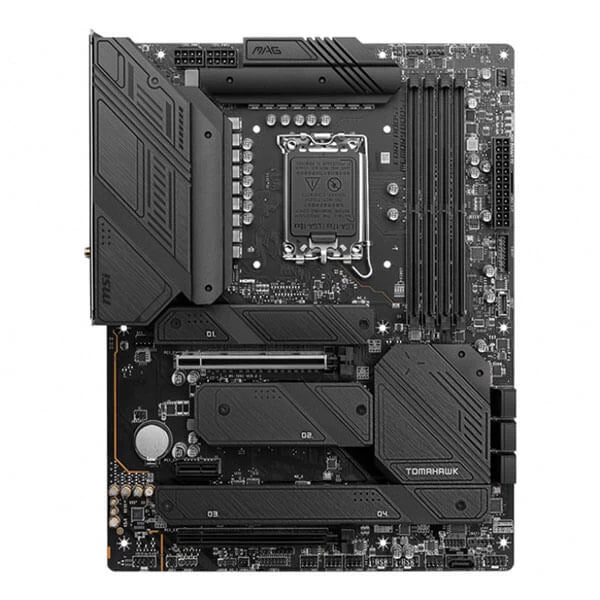

MSI MAG Z790 Tomahawk WIFI DDR4 Motherboard
MSI MAG Z790 Tomahawk WIFI DDR4 Motherboard
Couldn't load pickup availability
Empower Your System with Compatibility for 12th/13th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors on the LGA 1700 Socket Elevate Your Memory Potential with Support for DDR4 Memory, Pushing Limits to 5333+(OC) MHz Optimize Power Delivery with an Advanced 16+1+1 Duet Rail Power System, Twin 8-pin CPU Power Connectors, Core Boost, and Memory Boost Seize Unparalleled Speed in Your Gaming Realm: Leverage the PCIe 5.0 Slot, Lightning Gen 4 x4 M.2, and USB 3.2 Gen 2x2 for Rapid Performance Indulge in Peak Thermal Efficiency: Enhanced Heatsink Design and M.2 Shield Frozr Cater to High-Performance Demands and Uninterrupted Work Sessions Drench Your Senses in AUDIO BOOST 5: Relish Studio-Grade Sound Quality for an Immersive Gaming Expedition Experience the Pinnacle of Quality with a High-Grade PCB: Crafted with a 6-Layer Design, 2oz Thickened Copper, and Materials at Par with Server-Grade Standards
Specification,
| Chipset | INTEL Z790 |
| CPU SUPPORT | Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| Memory | 4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333/5200/5066/5000/4800/4600/4533/4400/4266/4000/3866/3733/3600/3466/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133(By JEDCE & POR) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI™ 1x DisplayPort Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| EXPANSION SLOT | 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
| Storage | 4x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 7x SATA 6G port |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices* Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices * SATA_A1_A2 do not support RAID function. |
| USB | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN | Intel® 2.5Gbps LAN |
| WIRELESS / BLUETOOTH | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3**, FIPS, FISMA |
| Audio | Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| Internal I/O | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
| LED FEATURE | 4x EZ Debug LED |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension | ATX 243.84mmx304.8mm |
| Warranty | 3 Years |
