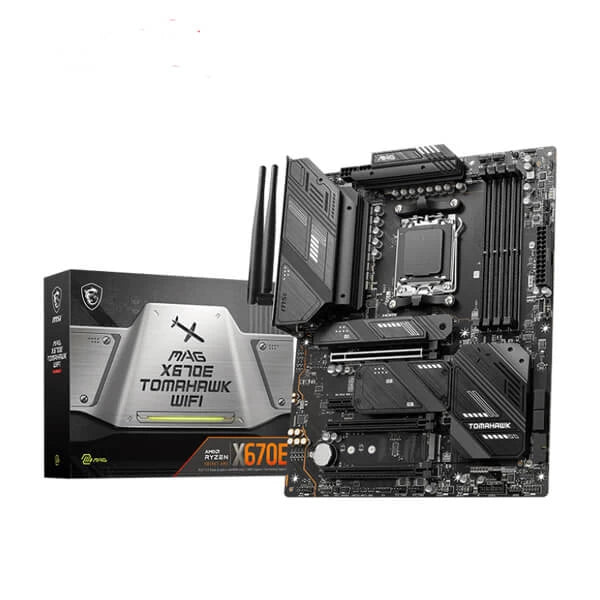

MSI MAG X670E Tomahawk WIFI Motherboard

MSI MAG X670E Tomahawk WIFI Motherboard

Dhs. 1,316.95 AED
Dhs. 1,460.00 AED Dhs. 1,316.95 AED
Sale Sold out
Taxes included. Shipping calculated at checkout.

Features:

WIFI MAG X670E TOMAHAWK

Supports Desktop Processors from the AMD RyzenTM 7000 Series
supports DDR5 memory with a top speed of 6000+ MHz.
Enhanced Power Design: Dual 8-pin CPU power connectors, 14+2+1 Duet Rail Power System, Core Boost, and Memory Boost
Lightning Fast Game encounter: Lightning Gen5 M.2, a PCIe 5.0 slot, and USB 3.2 Gen 2x2
High-end Thermal Solution High-performance systems and continuous operations are built with Extended Heatsink Design and M.2 Shield Frozr.
AUDIO BOOST: For the most immersive gaming experience, treat your ears to studio-quality sound.
8-layer PCB constructed with 2 oz of thicker copper and server-grade materials is of high quality.

Specification,

Model MAG X670E TOMAHAWK WIFI
Chipset AMD X670
CPU SUPPORT Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5
Memory

4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6000+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™
Onboard Graphics 1x HDMI™
Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz
EXPANSION SLOT 3x PCI-E x16 slot
Supports x16/x4/x2
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From CPU)
PCI_E4 Gen PCIe 4.0 supports up to x2 (From Chipset)
Storage 4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
RAID
  • Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
USB
  • 4x USB 2.0 (Front)
  • 4x USB 3.2 Gen1 Type A (Rear)
  • 4x USB 3.2 Gen1 Type A (Front)
  • 2x USB 3.2 Gen2 Type A (Rear)
  • 1x USB 3.2 Gen2 Type C (Rear)
  • 1x USB 3.2 Gen2 Type C (Front)
  • 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Realtek® RTL8125BG 2.5Gbps LAN
WIRELESS / BLUETOOTH

AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3
Audio Realtek® ALC1200 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Internal I/O
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 6x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Tuning Controller connector(JDASH)
  • 2x Addressable V2 RGB LED connector (JARGB_V2)
  • 2x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 4x USB 3.2 Gen1 Type A ports
  • 1x USB 3.2 Gen2 Type C ports
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS
  • DisplayPort
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • USB 3.2 Gen 2 5Gbps (Type-A)
  • 2.5G LAN
  • Wi-Fi / Bluetooth
  • Audio Connectors
  • Flash BIOS Button
  • HDMI™
  • USB 3.2 Gen 2 10Gbps (Type-C Display port)
  • USB 3.2 Gen 2x2 20Gbps (Type-C)
  • S/PDIF-Out
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension (W × L) ATX
243.84mmx304.8mm
Warranty 3 Years
