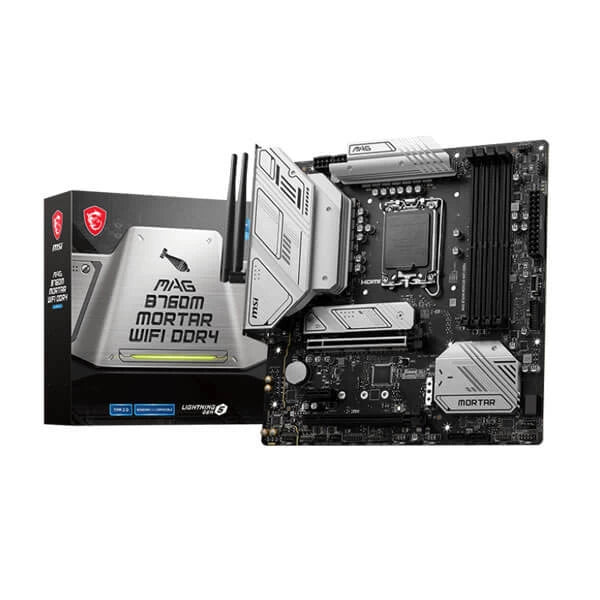

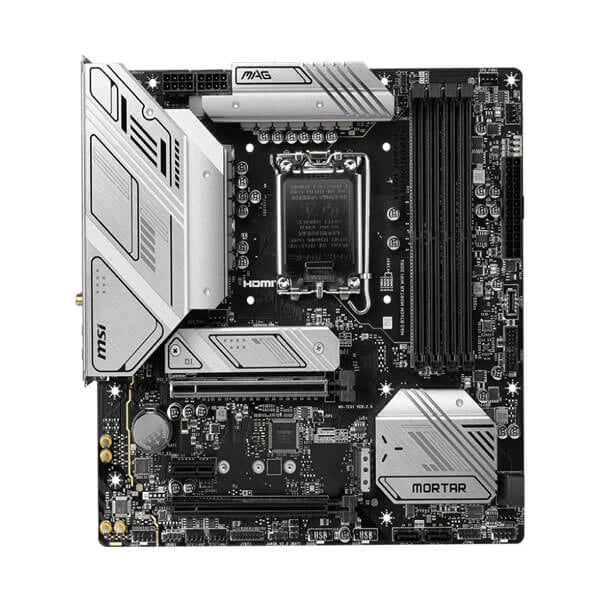

MSI MAG B760M Mortar WIFI DDR4 Motherboard

Regular price: Dhs. 851.80
Regular price: Dhs. 851.80; ~~Dhs. 998.00~~
Sale price
Unit price: per

Availability: In stock Out of stock

Product variants

Quantity

Free Delivery and Returns

Free Standard Delivery All Over UAE

We will dispatch the Product in 1-2 Days. Product will deliver in Maximum 3 - 5 Days.

You can return your order for any reason, free of charge, within 60 days.

Build Your Gaming Setup

Feel free to contact our customer support for building your dream gaming setup

Description
Reviews

Features:

Supports LGA 1700 socket-compatible 13th and 12th generation Intel Core, Pentium, and Celeron processors.

up to 5333+(OC) MHz DDR4 memory support

Enhanced Power Design: Dual 8-pin CPU power connectors, 12+1+1 Duet Rail Power System, Core Boost, and Memory Boost

Lightning-fast gaming experience: PCIe 5.0 slot, USB 3.2 Gen 2x2 port, Lightning Gen 4 x4 M.2, etc.

Extended Heatsink Design and M.2 Shield Frozr are intended for high performance systems and continuous operations. Premium Thermal Solution

AUDIO BOOST: For the most immersive gaming experience, treat your ears to studio-quality sound.

A 6-layer PCB composed of 2 oz thicker copper and server-grade materials is of high quality.

Specification,

Model	MAG B760M MORTAR WIFI DDR4
Chipset	INTEL B760
CPU SUPPORT	Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700
Memory	4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN	Realtek® 2.5Gbps LAN
WIRELESS / BLUETOOTH	Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA
Audio	Realtek® ALC897 Codec 7.1-Channel USB High Performance Audio
Internal I/O	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	USB 2.0 Display Port USB 3.2 Gen 2 10Gbps 2.5G LAN Audio Connectors HDMI™ USB 3.2 Gen 2x2 20Gbps (Type-C) USB 3.2 Gen 2 10Gbps Wi-Fi / Bluetooth Optical S/PDIF OUT
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension	mATX 243.84mmx243.84mm
Warranty	3 Years
