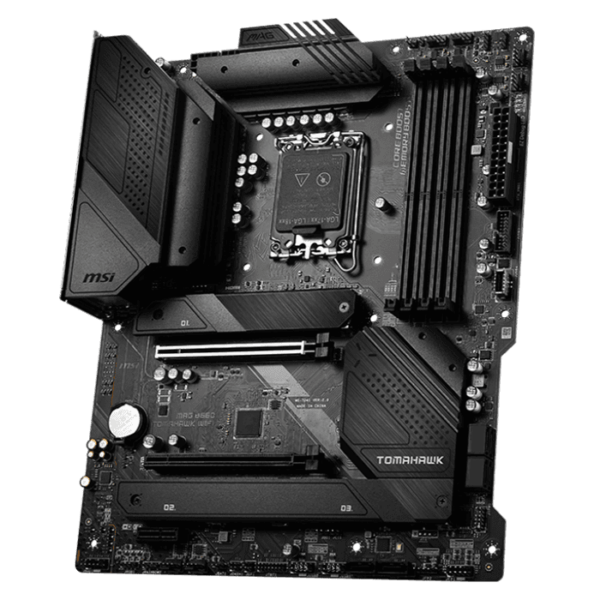

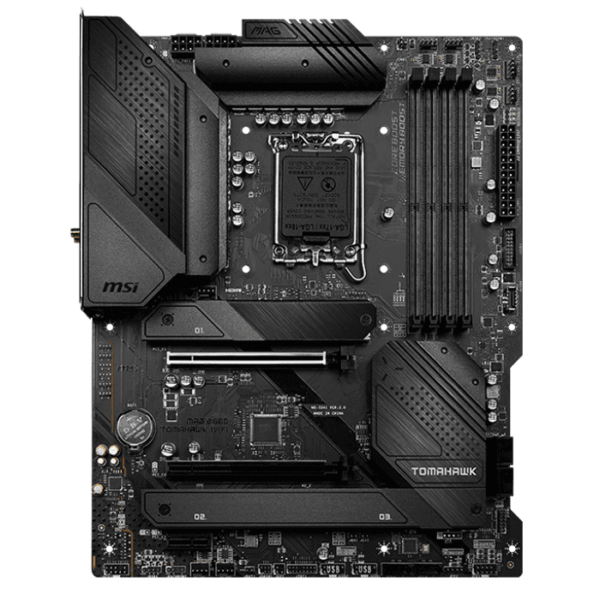

MSI MAG B660 Tomahawk Wifi DDR5 ATX Motherboard, LGA 1700
MSI MAG B660 Tomahawk Wifi DDR5 ATX Motherboard, LGA 1700
Regular price
Dhs. 923.00 AED
Regular price
Dhs. 1,230.00 AED
Sale price
Dhs. 923.00 AED
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, up to 6200+(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
- Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™
Specification,
| Model | MSI MAG B660 TOMAHAWK WIFI Motherboard |
| CPU Support | Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| CPU Socket | LGA 1700 |
| Chipset | Intel B660 Chipset |
| Form Factor | ATX |
| Memory | 4x DDR5 memory slots, supporting up to 128GB Supports 6200(OC)/ 6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
| Graphics Interface | 1x PCIe 4.0 x16 slot 1x PCIe 3.0 x16 slot |
| Display Interface | 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1x HDMI 2.1, supports a maximum resolution of 4K 60Hz |
| Multi-GPU Support | Supports AMD CrossFire Technology |
| Expansion Slots | 1x PCIe 3.0 x1 slot |
| Storage | 2x M.2 Gen4 x4 64Gbps slots 1x M.2 Gen4 x2 32Gbps slot Support Intel Optane Technology 6x SATA 6Gbps ports |
| LAN | 1x Realtek RTL8125BG 2.5Gbps LAN |
| Wireless / Bluetooth | Intel Wi-Fi 6E module Bluetooth 5.2 |
| Audio | Realtek ALC1220P Codec 7.1-Channel High Definition Audio Supports S/PDIF output |

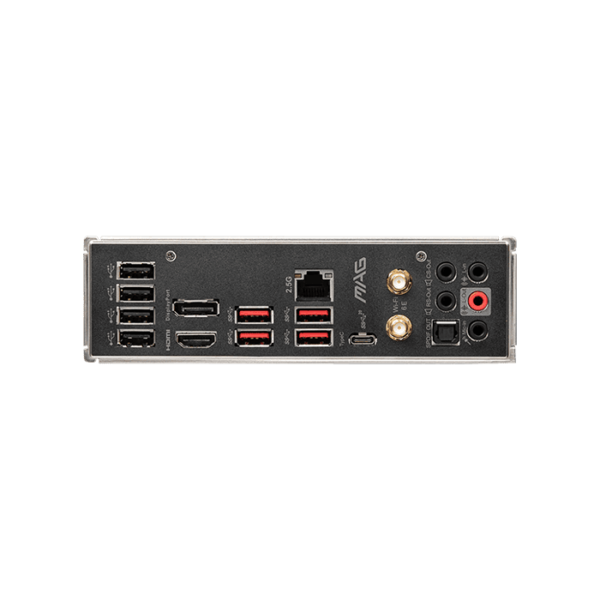

| BackPanel Ports | 1 x DisplayPort 1.4 1 x 2.5G LAN Port 2 x Antenna Bracket HD Audio Connectors 1 x HDMI 2.1 port 1 x USB 3.2 Gen 2x2 (Type-C) 4 x USB 3.2 Gen 2 (Type-A) 4 x USB 2.0 |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 5x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector |
| LED Features | 4x EZ Debug LED 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors |
| Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
| Dimension | 30.5 cm x 24.4 cm |
| Warranty | 3 Years Brand Warranty |

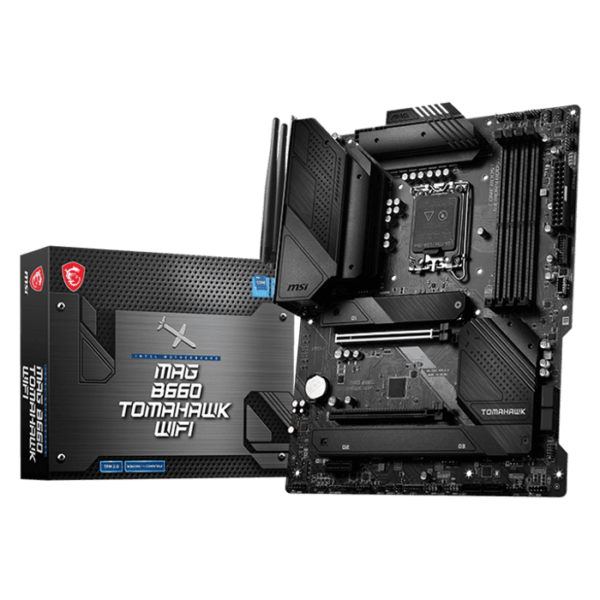

| Package Contents | MSI MAG B660 TOMAHAWK WIFI ATX Motherboard Product Registration Card Quick Installation Guide |
| Country of Origin | China |
