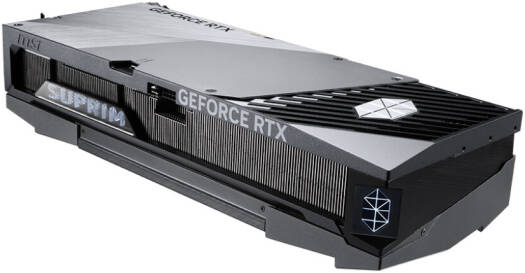

MSI GeForce RTX 5090 32G SUPRIM SOC 32GB GDDR7 Graphics Card

The MSI GeForce RTX 5090 32G SUPRIM SOC is a premium high-performance graphics card powered by the NVIDIA GeForce RTX 5090 and NVIDIA Blackwell architecture. It features 32GB of GDDR7 memory and is designed for demanding gaming, content creation, AI workloads and professional applications.

The SUPRIM series uses MSI's HYPER FROZR thermal design, combining STORMFORCE fans, an advanced vapor chamber, optimized core pipes and advanced heatsink fin designs. The card also features a reinforced metal construction, metal backplate, Dual BIOS and MSI Center software support.

The SOC model offers Gaming Mode Boost of 2565 MHz and Silent Mode Boost of 2512 MHz, with Extreme Performance clocks available through MSI Center.

Key Features

• NVIDIA GeForce RTX 5090 GPU
• NVIDIA Blackwell architecture
• 32GB GDDR7 memory
• 512-bit memory interface
• 28 Gbps memory speed
• Gaming Mode Boost up to 2565 MHz
• Silent Mode Boost up to 2512 MHz
• Extreme Performance up to 2580 MHz through MSI Center
• 21760 CUDA cores
• PCI Express 5.0 interface
• MSI SUPRIM premium design
• HYPER FROZR thermal design
• STORMFORCE fans
• Advanced vapor chamber
• Optimized core pipes
• Filled Fins
• Wave Curved 4.0
• Air Antegrade Fin 2.0
• Dual BIOS
• Reinforced metal backplate
• MSI Center support
• MSI Afterburner support

Complete Technical Specifications

• Brand: MSI
• Model: GeForce RTX 5090 32G SUPRIM SOC
• Series: SUPRIM
• GPU/CPU/Product Type: NVIDIA GeForce RTX 5090 Graphics Card
• Architecture: NVIDIA Blackwell
• CUDA Cores: 21760
• Memory: 32GB
• Memory Type: GDDR7
• Memory Bus: 512-bit
• Memory Speed: 28 Gbps
• Gaming Mode Clock: Extreme Performance 2580 MHz / Boost 2565 MHz
• Silent Mode Clock: Extreme Performance 2527 MHz / Boost 2512 MHz
• Interface: PCI Express 5.0
• Maximum Resolution: 7680 × 4320
• HDMI: 1 × HDMI 2.1b
• DisplayPort: 3 × DisplayPort 2.1a
• Maximum Displays: 4
• DirectX: 12 Ultimate
• OpenGL: 4.6
• Power Consumption: 575W
• Power Connector: 1 × 16-pin
• Cooling: HYPER FROZR thermal design
• Fan Technology: STORMFORCE Fan
• Vapor Chamber: Yes
• Core Pipes: Yes
• Dual BIOS: Yes
• Backplate: Reinforced metal backplate
• Dimensions: Not Available
• Recommended PSU: Not Available
• Operating System: Not Available
• SKU/P/N: Not Available
• Barcode/EAN: Not Available

GPU Architecture

The MSI GeForce RTX 5090 32G SUPRIM SOC is based on NVIDIA Blackwell architecture. MSI highlights fifth-generation Tensor Cores, new Streaming Multiprocessors and fourth-generation Ray Tracing Cores for AI-enhanced graphics, ray tracing and creative workloads.

Memory

The graphics card is equipped with 32GB of GDDR7 memory and a 512-bit memory interface. The specified effective memory speed is 28 Gbps.

Clock Speeds

In Gaming Mode, the card provides a Boost Clock of 2565 MHz and an Extreme Performance clock of 2580 MHz through MSI Center. Silent Mode provides a 2512 MHz Boost Clock and 2527 MHz Extreme Performance clock through MSI Center.

Cooling

The SUPRIM SOC uses MSI's HYPER FROZR thermal design. The cooling system incorporates STORMFORCE fans, an advanced vapor chamber, square-contact core pipes and multiple optimized heatsink-fin technologies.

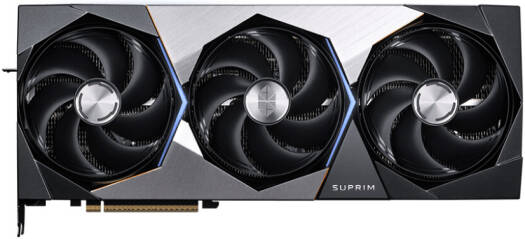

STORMFORCE Fan

MSI's STORMFORCE fan design uses seven claw-textured blades and a circular arc to enhance air pressure and airflow. The fans use double ball bearings for durability and smooth operation.

Display Connectivity

The card provides one HDMI 2.1b port and three DisplayPort 2.1a ports. It supports up to four displays and a maximum resolution of 7680 × 4320.

Power Requirements

The graphics card has a listed power consumption of 575W and uses one 16-pin power connector.

Dual BIOS

The SUPRIM SOC includes Dual BIOS, allowing users to choose between Gaming Mode for maximum performance and Silent Mode for lower noise.

Software

MSI Center allows users to monitor, tune and optimize the graphics card. MSI Afterburner provides additional graphics-card overclocking and monitoring controls.

Compatibility

• Desktop PCs with a compatible PCI Express 5.0 graphics slot
• Systems capable of accommodating the card's physical dimensions
• Systems with adequate power delivery for a 575W graphics card
• Displays using HDMI 2.1b
• Displays using DisplayPort 2.1a
• Up to four simultaneous displays

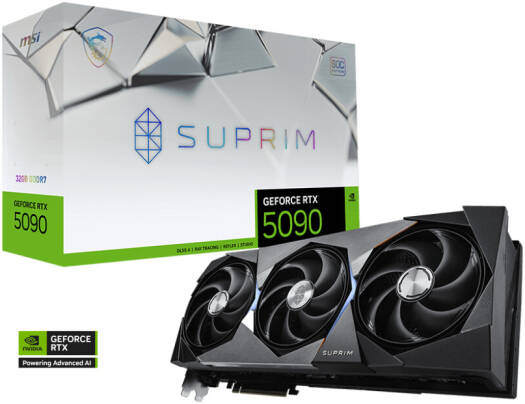

Package Includes

• MSI GeForce RTX 5090 32G SUPRIM SOC graphics card
• Bundled support stand
• Other package contents: Not Available
