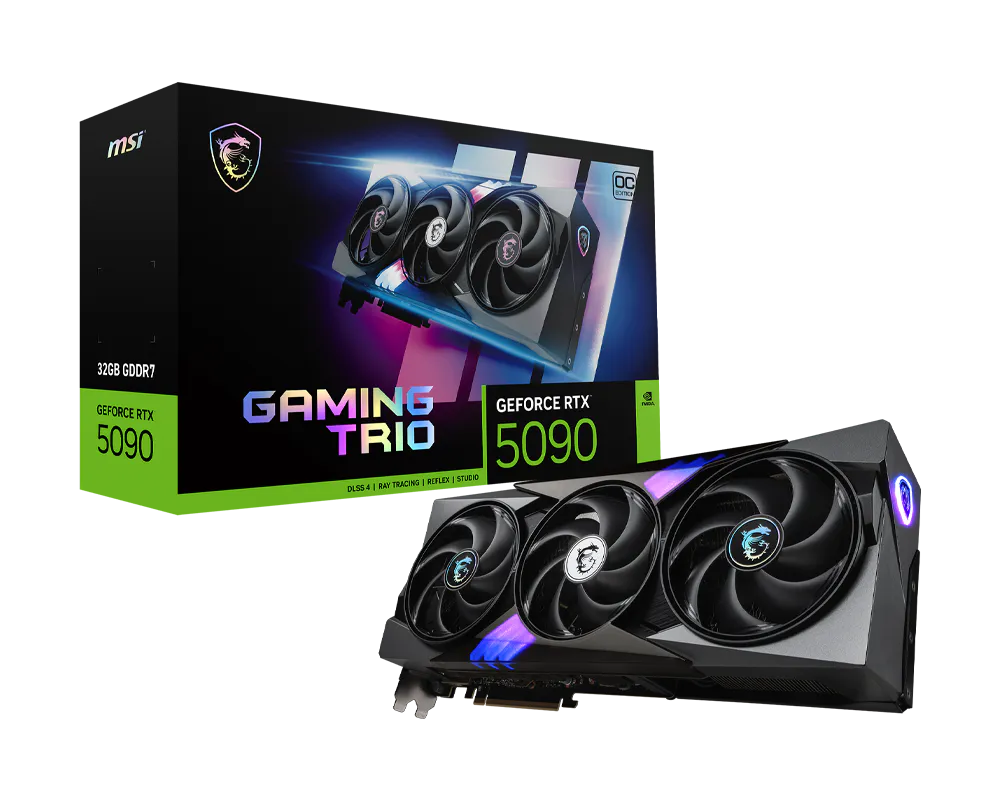

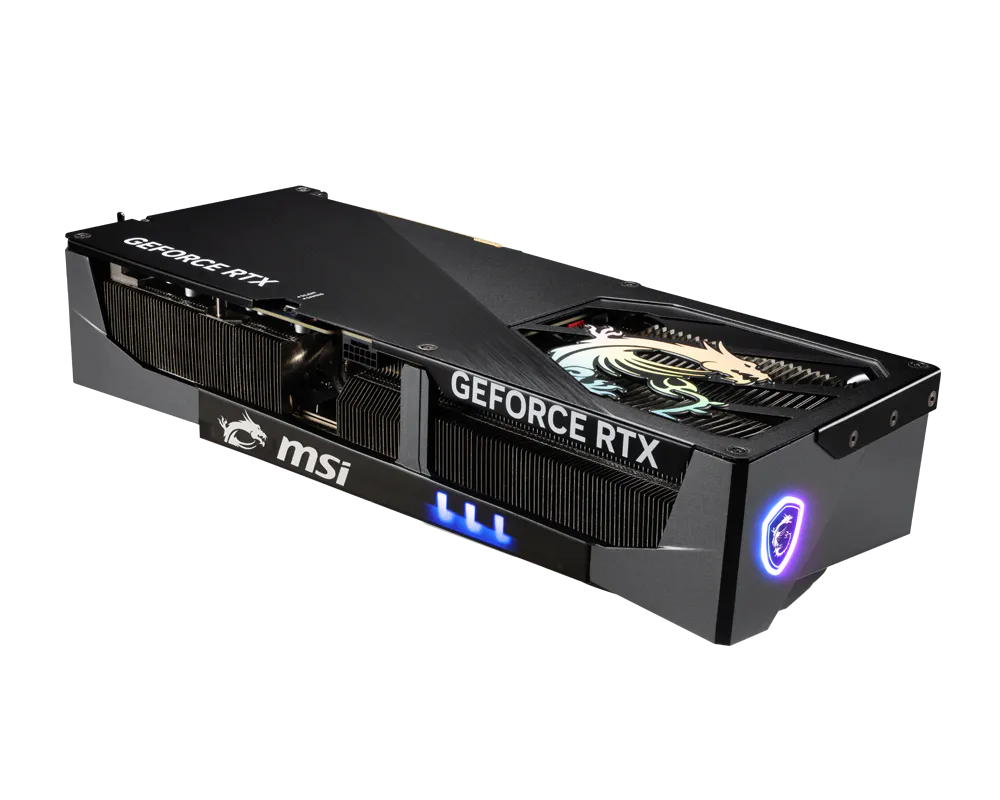

MSI GeForce RTX™ 5090 32G GAMING TRIO OC Graphics Card

The MSI GeForce RTX™ 5090 32G GAMING TRIO OC is a flagship NVIDIA GeForce RTX 5090 graphics card powered by NVIDIA Blackwell architecture. It combines 32GB of GDDR7 memory with a 512-bit memory interface and 28 Gbps memory speed.

The exact GAMING TRIO OC model provides a 2482 MHz Boost clock in GAMING & SILENT modes and up to 2497 MHz Extreme Performance through MSI Center. MSI's TRI FROZR 4 thermal design combines STORMFORCE fans, a nickel-plated copper baseplate, Core Pipes, Wave Curved 4.0, Air Antegrade Fin 2.0 and a metal backplate.

Key Features

• NVIDIA GeForce RTX™ 5090
• NVIDIA Blackwell architecture
• 32GB GDDR7 memory
• 512-bit memory interface
• 28 Gbps memory speed
• 2482 MHz Boost clock
• 2497 MHz Extreme Performance clock via MSI Center
• 21,760 CUDA cores
• MSI TRI FROZR 4 thermal design
• STORMFORCE triple-fan cooling
• Nickel-plated copper baseplate
• Core Pipes
• Wave Curved 4.0
• Air Antegrade Fin 2.0
• Zero Frozr technology
• Metal backplate with airflow vents
• Dual BIOS
• PCI Express Gen 5
• 3 × DisplayPort 2.1b
• 1 × HDMI 2.1b
• Up to 4 displays
• 7680 × 4320 maximum digital resolution
• 575W power consumption
• 1000W recommended PSU
• 1 × 16-pin power connector
• ATX 3.1 PSU recommended
• NVIDIA DLSS 4.5
• NVIDIA Reflex 2
• NVIDIA Studio
• NVIDIA Broadcast
• Ninth-generation NVIDIA Encoder

Complete Technical Specifications

• Brand: MSI
• Model: GeForce RTX™ 5090 32G GAMING TRIO OC
• Series: GAMING TRIO OC
• GPU/CPU/Product Type: NVIDIA GeForce RTX™ 5090 Graphics Card
• Architecture: NVIDIA Blackwell
• Memory: 32GB
• Memory Type: GDDR7
• Memory Bus: 512-bit
• Memory Speed: 28 Gbps
• Clock Speed: Boost 2482 MHz; Extreme Performance 2497 MHz via MSI Center
• CUDA Cores: 21,760
• Interface: PCI Express Gen 5
• Dimensions: 359 × 149 × 70 mm
• Power Consumption: 575W
• Power Connector: 1 × 16-pin
• Recommended PSU: 1000W
• Cooling: TRI FROZR 4
• Fan Technology: STORMFORCE
• Zero Frozr: Yes
• Dual BIOS: Yes
• DisplayPort: 3 × DisplayPort 2.1b
• HDMI: 1 × HDMI 2.1b
• Maximum Displays: 4
• Maximum Digital Resolution: 7680 × 4320
• DirectX: DirectX 12 Ultimate
• OpenGL: 4.6
• G-SYNC: Yes
• HDCP Support: Yes
• Model Name: G5090-32GTC
• SKU / P/N: 912-V530-235
• Card Weight: 2119 g
• Package Weight: 2735 g

GPU Architecture

The exact product uses NVIDIA Blackwell architecture with fifth-generation Tensor Cores, new Streaming Multiprocessors and fourth-generation Ray Tracing Cores. MSI specifies DLSS 4.5 with Dynamic Multi Frame Generation, full ray tracing with neural rendering, NVIDIA Reflex 2, NVIDIA ACE and NVIDIA Studio technologies.

Memory

The exact GAMING TRIO OC variant features 32GB GDDR7 memory with a 512-bit memory bus and 28 Gbps memory speed.

Cooling System

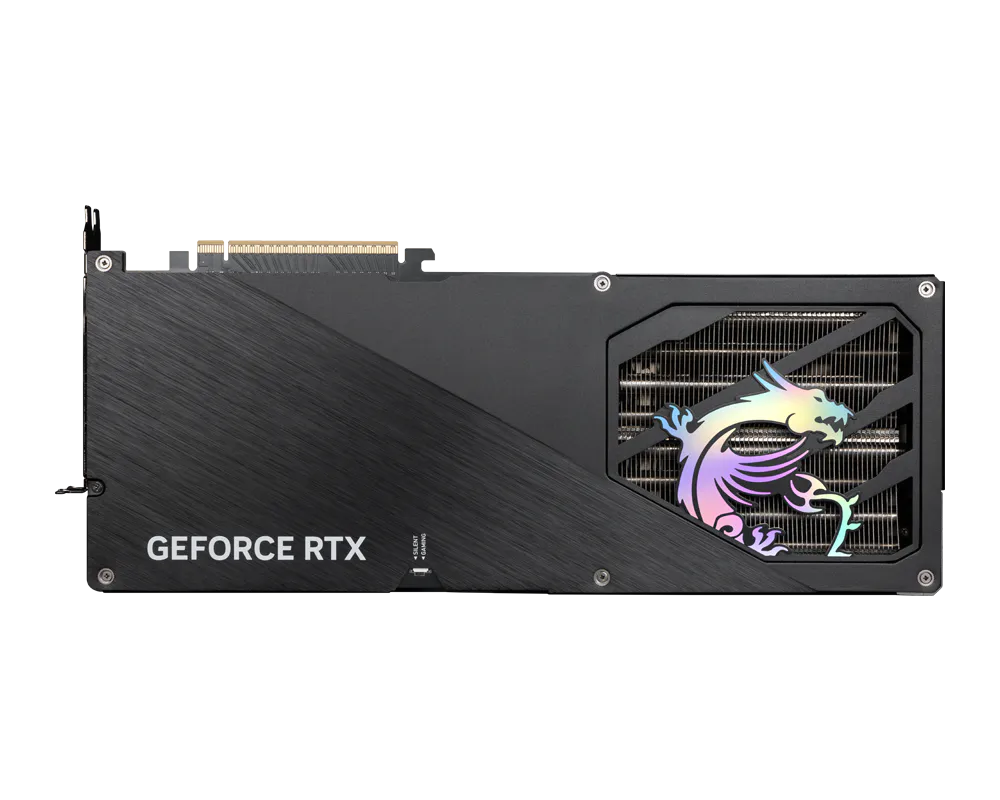

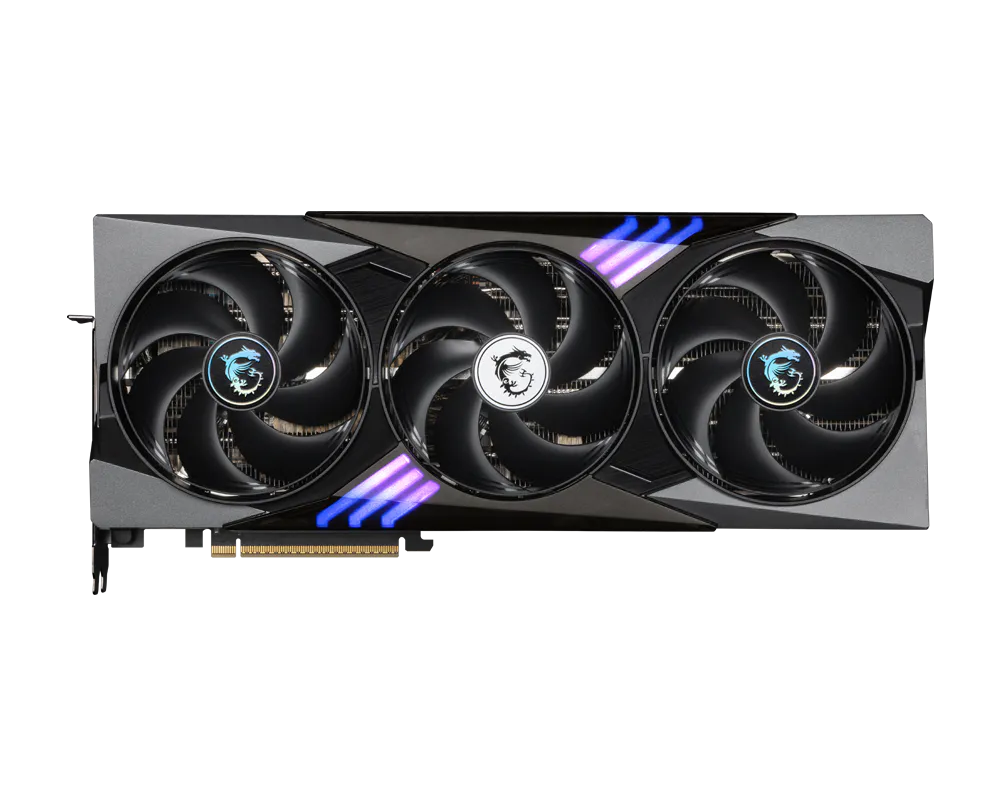

MSI's TRI FROZR 4 thermal design uses STORMFORCE fans, a nickel-plated copper baseplate, Core Pipes, Wave Curved 4.0 and Air Antegrade Fin 2.0. Zero Frozr allows the fans to stop at low temperatures, while the metal backplate includes airflow vents and thermal pads.

Gaming and Creator Features

The RTX 5090 platform supports NVIDIA DLSS 4.5, Dynamic Multi Frame Generation, full ray tracing with neural rendering, NVIDIA Reflex 2, NVIDIA ACE, NVIDIA Studio and NVIDIA Broadcast technologies.

Display Connectivity

The exact model provides 3 × DisplayPort 2.1b and 1 × HDMI 2.1b. MSI specifies support for up to four displays and a maximum digital resolution of 7680 × 4320. HDMI 2.1b supports up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR and HDR.

Power Requirements

The exact model has 575W power consumption, uses one 16-pin power connector, and MSI recommends a 1000W PSU. MSI recommends an ATX 3.1 PSU for the 16-pin connection.

Physical Specifications

The exact GAMING TRIO OC model measures 359 × 149 × 70 mm and weighs 2119 g. MSI lists the package weight as 2735 g.

Compatibility

• PCI Express Gen 5 compatible
• Requires a compatible PCI Express graphics-card slot
• 1000W recommended system PSU
• ATX 3.1 PSU recommended
• Requires one 16-pin power connector
• Supports up to four displays
• Supports DirectX 12 Ultimate
• Supports OpenGL 4.6
• Supports NVIDIA G-SYNC
• Suitable for gaming, content creation, AI and professional GPU workloads
• Large triple-slot-class card; chassis clearance must be checked against the 359 × 149 × 70 mm dimensions

Package Includes

• MSI GeForce RTX™ 5090 32G GAMING TRIO OC Graphics Card
• Bundled graphics-card support stand
• Other package contents: Not Available

Warranty

3 years according to MSI's official European business store listing.
