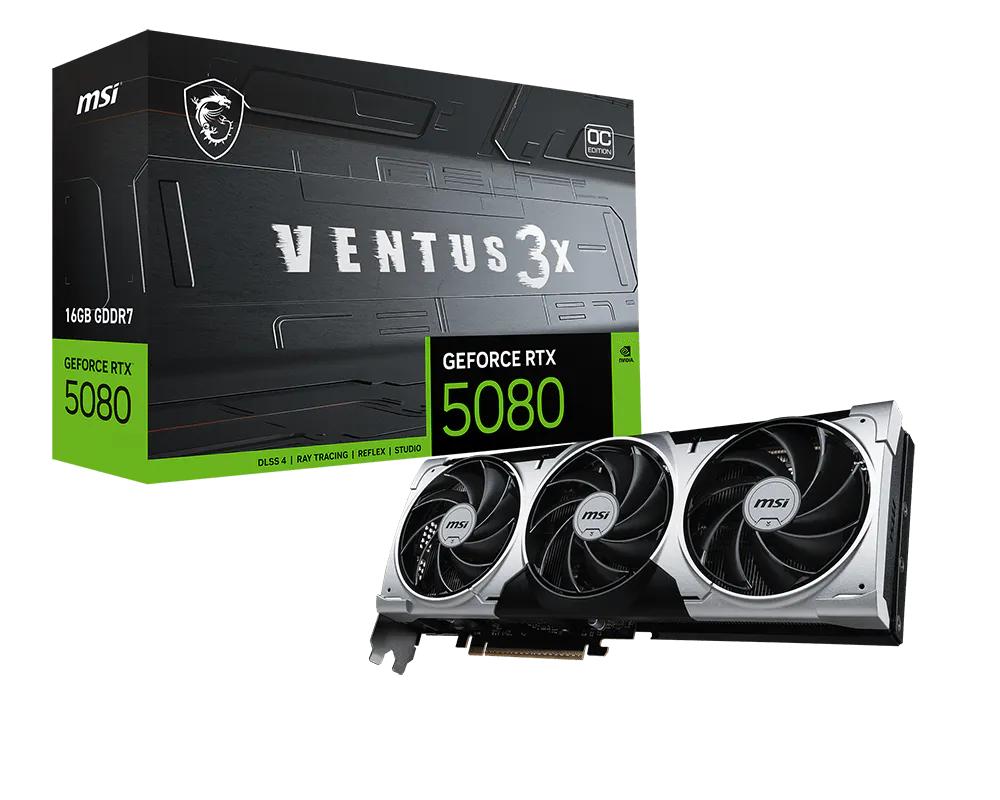

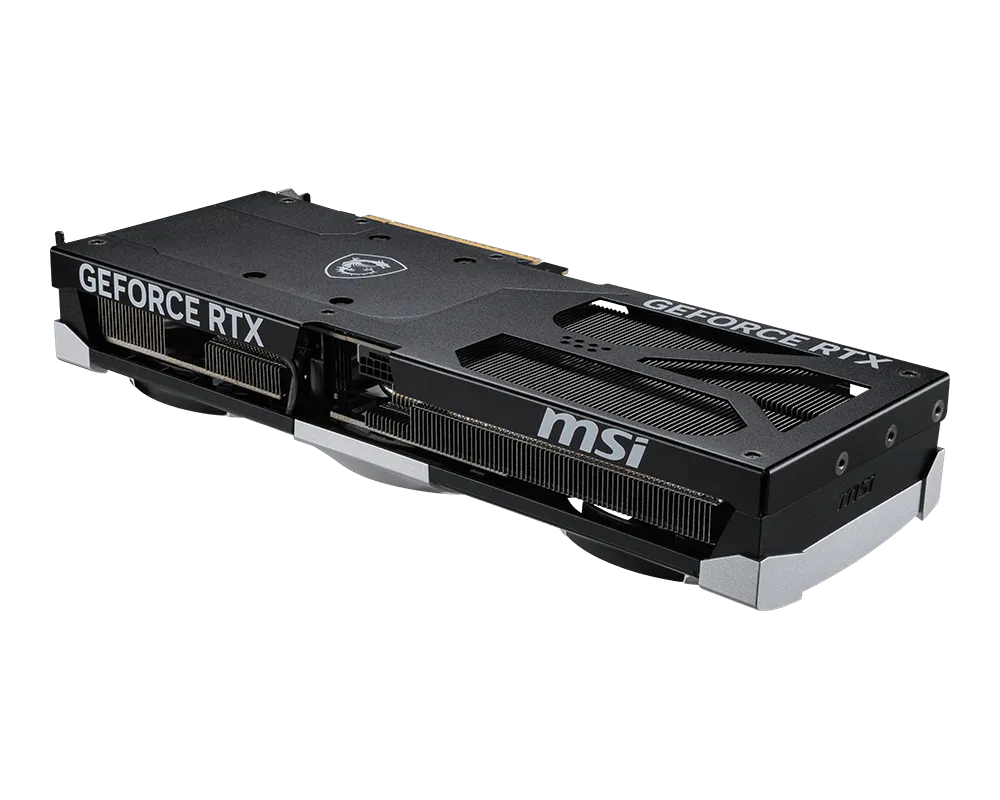

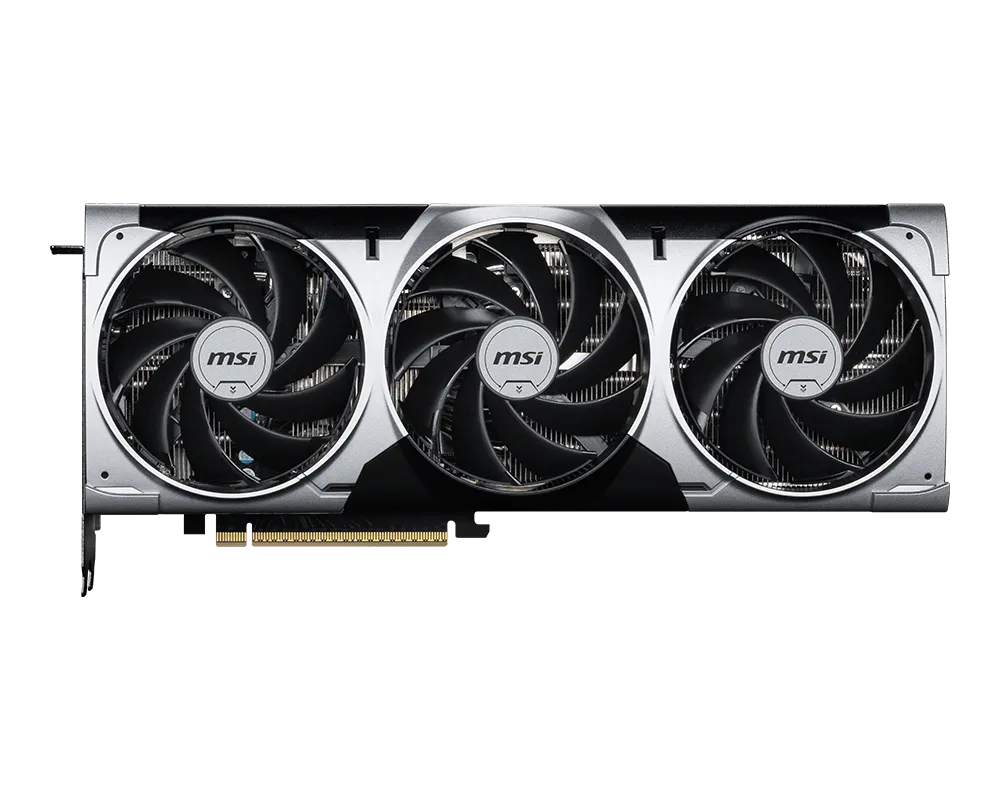

MSI GeForce RTX™ 5080 16G VENTUS 3X OC PLUS Graphics Card

The MSI GeForce RTX™ 5080 16G VENTUS 3X OC PLUS is a high-performance NVIDIA GeForce RTX 5080 graphics card powered by NVIDIA Blackwell architecture. It features 16GB of GDDR7 memory with a 256-bit memory interface and 30 Gbps memory speed.

The exact VENTUS 3X OC PLUS provides a 2640 MHz Boost clock and up to 2655 MHz Extreme Performance through MSI Center. Its triple-fan thermal design uses TORX FAN 5.0, a nickel-plated copper baseplate, Core Pipes, Zero Frozr and a metal backplate.

Key Features

• NVIDIA GeForce RTX™ 5080
• NVIDIA Blackwell architecture
• 16GB GDDR7 memory
• 256-bit memory interface
• 30 Gbps memory speed
• 2640 MHz Boost clock
• 2655 MHz Extreme Performance clock via MSI Center
• 10,752 CUDA cores
• Triple-fan thermal design
• TORX FAN 5.0
• Nickel-plated copper baseplate
• Core Pipes
• Zero Frozr technology
• Metal backplate
• Reinforced metal structure
• DrMOS power stages
• 2 oz copper PCB
• PCI Express Gen 5
• 3 × DisplayPort 2.1b
• 1 × HDMI 2.1b
• Up to 4 displays
• 7680 × 4320 maximum digital resolution
• 360W power consumption
• 850W recommended PSU
• 1 × 16-pin power connector
• ATX 3.1 PSU recommended
• NVIDIA DLSS 4.5
• NVIDIA Reflex 2
• NVIDIA Studio
• NVIDIA Broadcast
• Ninth-generation NVIDIA Encoder
• SFF-Ready Enthusiast GeForce Card

Complete Technical Specifications

• Brand: MSI
• Model: GeForce RTX™ 5080 16G VENTUS 3X OC PLUS
• Series: VENTUS 3X OC PLUS
• GPU/CPU/Product Type: NVIDIA GeForce RTX™ 5080 Graphics Card
• Architecture: NVIDIA Blackwell
• Memory: 16GB
• Memory Type: GDDR7
• Memory Bus: 256-bit
• Memory Speed: 30 Gbps
• Clock Speed: Boost 2640 MHz; Extreme Performance 2655 MHz via MSI Center
• CUDA Cores: 10,752
• Interface: PCI Express Gen 5
• Dimensions: 303 × 121 × 49 mm
• Power Consumption: 360W
• Power Connector: 1 × 16-pin
• Recommended PSU: 850W
• Cooling: Triple-fan thermal design
• Fan Technology: TORX FAN 5.0
• Zero Frozr: Yes
• DisplayPort: 3 × DisplayPort 2.1b
• HDMI: 1 × HDMI 2.1b
• Maximum Displays: 4
• Maximum Digital Resolution: 7680 × 4320
• DirectX: 12 Ultimate
• OpenGL: 4.6
• G-SYNC: Yes
• HDCP Support: Yes
• Manufacturer Part Number: G5080-16V3CP
• Card Weight: 1105 g
• Package Weight: 1618 g
• Regional SKU/P/N: Not Available for the exact regional version of the supplied general URL

GPU Architecture

The exact product uses NVIDIA Blackwell architecture with fifth-generation Tensor Cores, new Streaming Multiprocessors and fourth-generation Ray Tracing Cores. It supports NVIDIA DLSS 4.5, neural rendering, NVIDIA Reflex 2, NVIDIA ACE and NVIDIA Studio technologies.

Memory

The exact VENTUS 3X OC PLUS has 16GB GDDR7 memory with a 256-bit memory interface and 30 Gbps memory speed.

Cooling System

The card uses a triple-fan thermal design with TORX FAN 5.0, a nickel-plated copper baseplate, Core Pipes, Zero Frozr and a metal backplate with airflow vents.

Gaming and Creator Features

The RTX 5080 platform supports NVIDIA DLSS 4.5 with Dynamic Multi Frame Generation, full ray tracing with neural rendering, NVIDIA Reflex 2, NVIDIA ACE, NVIDIA Studio and NVIDIA Broadcast.

Display Connectivity

The exact model provides 3 × DisplayPort 2.1b and 1 × HDMI 2.1b. MSI specifies support for up to four displays and a maximum digital resolution of 7680 × 4320. HDMI 2.1b supports up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR and HDR.

Power Requirements

The exact model has 360W power consumption, uses one 16-pin power connector, and MSI recommends an 850W PSU. MSI recommends an ATX 3.1 PSU for the 16-pin connection.

Physical Specifications

The exact VENTUS 3X OC PLUS measures 303 × 121 × 49 mm and weighs 1105 g. MSI lists the package weight as 1618 g.

Compatibility

• PCI Express Gen 5 compatible
• Requires a compatible PCI Express graphics-card slot
• 850W recommended system PSU
• ATX 3.1 PSU recommended
• Requires one 16-pin power connector
• Supports up to four displays
• Supports DirectX 12 Ultimate
• Supports OpenGL 4.6
• Supports NVIDIA G-SYNC
• SFF-Ready Enthusiast GeForce Card
• Suitable for gaming, content creation and AI-accelerated applications

Package Includes

• MSI GeForce RTX™ 5080 16G VENTUS 3X OC PLUS Graphics Card
• Bundled support stand
• Other package contents: Not Available

Warranty

3 years according to MSI's official store information
