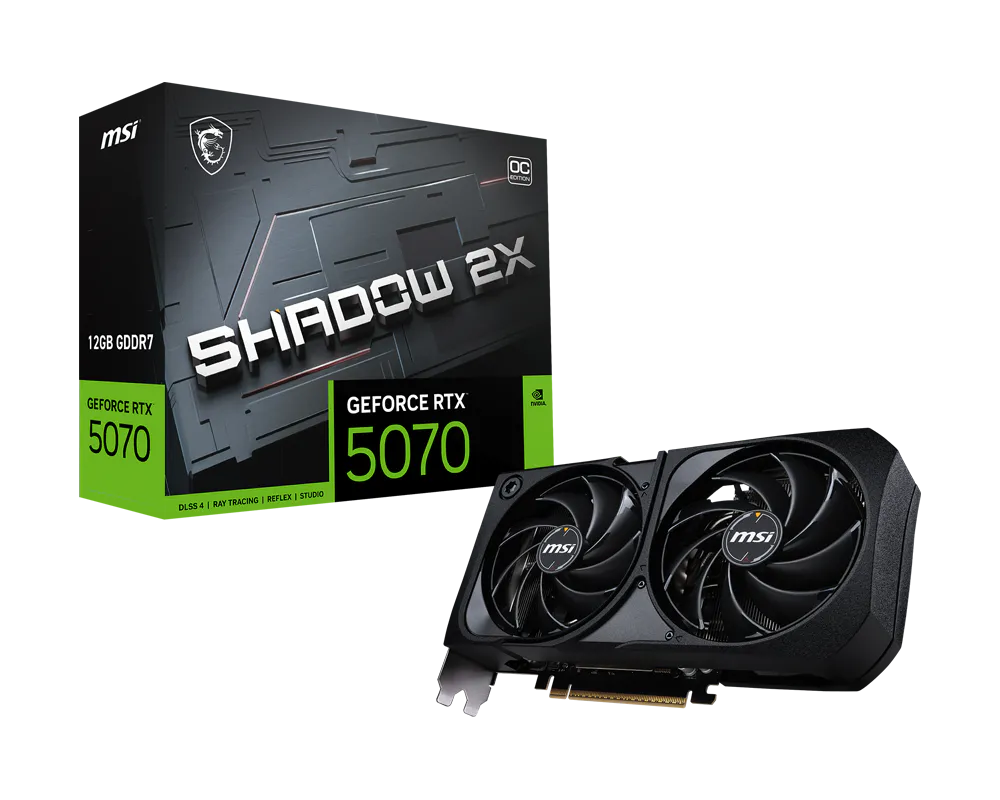

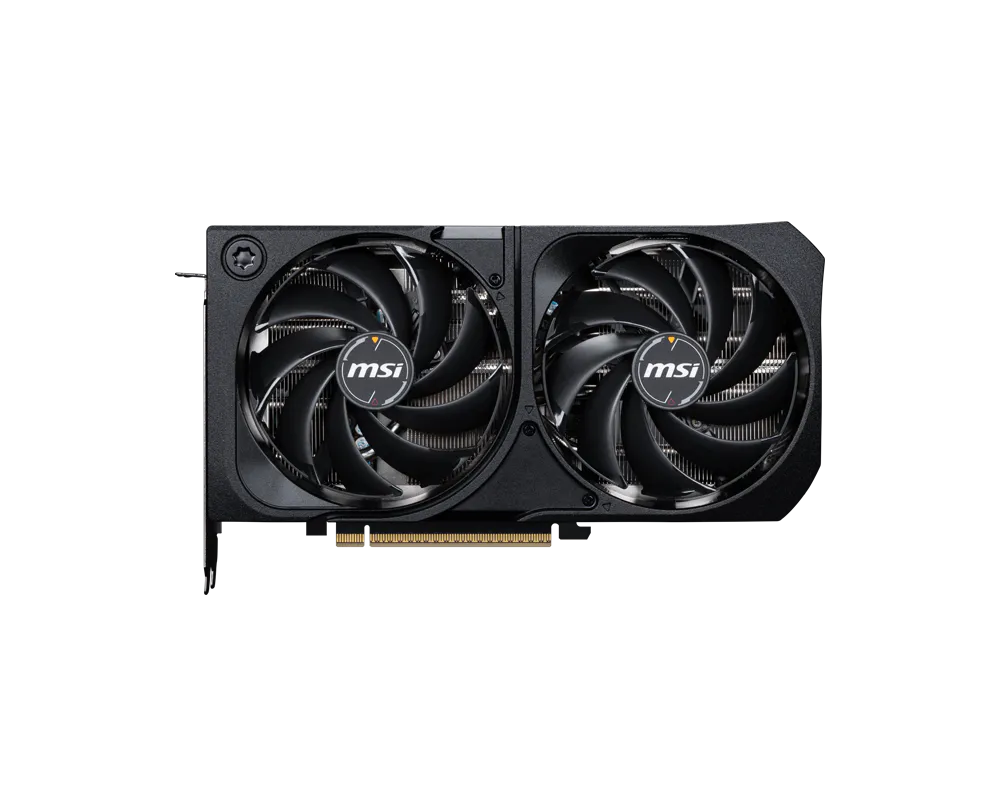

MSI GeForce RTX™ 5070 12G SHADOW 2X OC Graphics Card

The MSI GeForce RTX™ 5070 12G SHADOW 2X OC is an NVIDIA GeForce RTX 5070 graphics card based on NVIDIA Blackwell architecture. It features 12GB of GDDR7 memory on a 192-bit memory bus and a 28 Gbps memory speed.

The exact SHADOW 2X OC model has a 2542 MHz Boost clock and up to 2557 MHz Extreme Performance clock through MSI Center. Its dual-fan thermal design uses TORX FAN 5.0, a nickel-plated copper baseplate, Core Pipes, Zero Frozr and a reinforcing backplate.

Key Features

• NVIDIA GeForce RTX™ 5070
• NVIDIA Blackwell architecture
• 12GB GDDR7 memory
• 192-bit memory interface
• 28 Gbps memory speed
• 2542 MHz Boost clock
• 2557 MHz Extreme Performance clock via MSI Center
• 6144 CUDA cores
• Dual-fan thermal design
• TORX FAN 5.0
• Nickel-plated copper baseplate
• Core Pipes
• Zero Frozr technology
• Reinforcing backplate
• PCI Express Gen 5
• 3 × DisplayPort 2.1b
• 1 × HDMI 2.1b
• Up to 4 displays
• 7680 × 4320 maximum digital resolution
• 250W power consumption
• 650W recommended PSU
• 1 × 16-pin power connector
• NVIDIA DLSS 4.5
• NVIDIA Reflex 2
• NVIDIA Studio support
• NVIDIA Broadcast
• SFF-Ready Enthusiast GeForce Card

Complete Technical Specifications

• Brand: MSI
• Model: GeForce RTX™ 5070 12G SHADOW 2X OC
• Series: SHADOW
• GPU/CPU/Product Type: NVIDIA GeForce RTX™ 5070 Graphics Card
• Architecture: NVIDIA Blackwell
• Memory: 12GB
• Memory Type: GDDR7
• Memory Bus: 192-bit
• Memory Speed: 28 Gbps
• Clock Speed: Boost 2542 MHz; Extreme Performance 2557 MHz via MSI Center
• CUDA Cores: 6144
• Interface: PCI Express Gen 5
• Dimensions: 231 × 126 × 50 mm
• Power Consumption: 250W
• Power Connector: 1 × 16-pin
• Recommended PSU: 650W
• Cooling: Dual-fan thermal design
• Fan Technology: TORX FAN 5.0
• Zero Frozr: Yes
• DisplayPort: 3 × DisplayPort 2.1b
• HDMI: 1 × HDMI 2.1b
• Maximum Displays: 4
• Maximum Digital Resolution: 7680 × 4320
• DirectX: DirectX 12 Ultimate
• OpenGL: 4.6
• G-SYNC: Yes
• HDCP Support: Yes
• Card Weight: 724 g
• Package Weight: 1107 g
• Model Name: G5070-12S2C
• SKU / P/N: 912-V532-011

GPU Architecture

The exact product uses NVIDIA Blackwell architecture with fifth-generation Tensor Cores, new Streaming Multiprocessors and fourth-generation Ray Tracing Cores. MSI also specifies DLSS 4.5 with Dynamic Multi Frame Generation, NVIDIA Reflex 2, neural rendering, NVIDIA ACE and NVIDIA Studio technologies.

Memory

The exact SHADOW 2X OC variant has 12GB GDDR7 memory, a 192-bit memory bus and 28 Gbps memory speed.

Cooling System

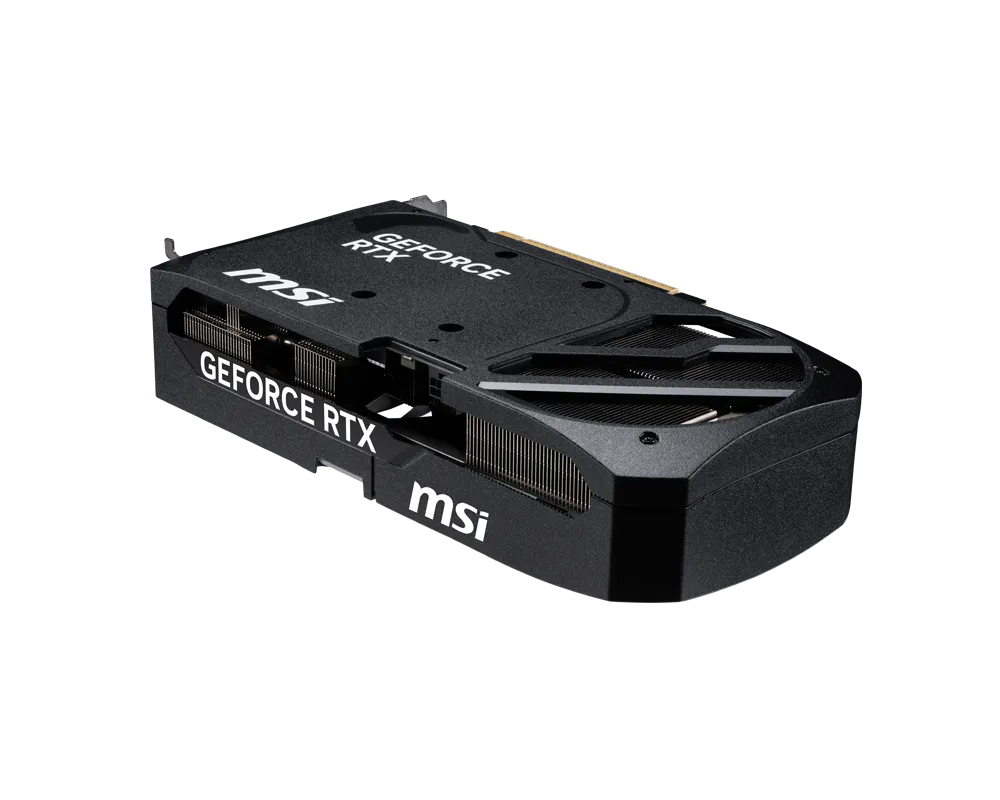

The card uses a dual-fan thermal design with TORX FAN 5.0. MSI specifies a nickel-plated copper baseplate and Core Pipes for heat transfer, together with Zero Frozr and a reinforcing backplate with an airflow vent.

Gaming and Creator Features

The RTX 5070 platform supports NVIDIA DLSS 4.5, Dynamic Multi Frame Generation, full ray tracing with neural rendering, NVIDIA Reflex 2, NVIDIA ACE, NVIDIA Studio and NVIDIA Broadcast.

Display Connectivity

The exact model provides 3 × DisplayPort 2.1b and 1 × HDMI 2.1b. MSI specifies support for up to four displays and a maximum digital resolution of 7680 × 4320. HDMI supports up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR and HDR.

Power Requirements

The exact product has 250W power consumption, uses one 16-pin power connector, and MSI recommends a 650W PSU. MSI also recommends an ATX 3.1 PSU for the 16-pin connection.

Physical Specifications

The exact SHADOW 2X OC model measures 231 × 126 × 50 mm and weighs 724 g. MSI lists the package weight as 1107 g.

Compatibility

• PCI Express Gen 5 compatible
• Requires a compatible PCI Express graphics-card slot
• 650W recommended system PSU
• Requires one 16-pin power connector
• ATX 3.1 PSU recommended
• Supports up to four displays
• Supports DirectX 12 Ultimate
• Supports OpenGL 4.6
• Supports NVIDIA G-SYNC
• SFF-Ready Enthusiast GeForce Card
• Suitable for gaming, content creation and AI-accelerated applications
