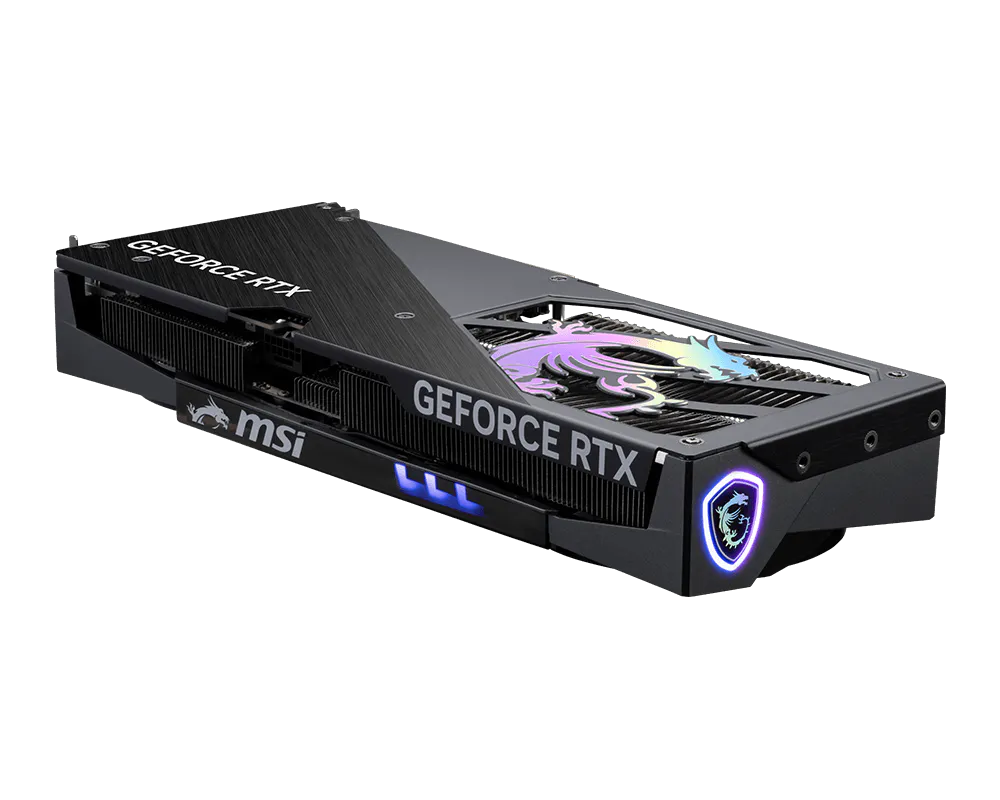

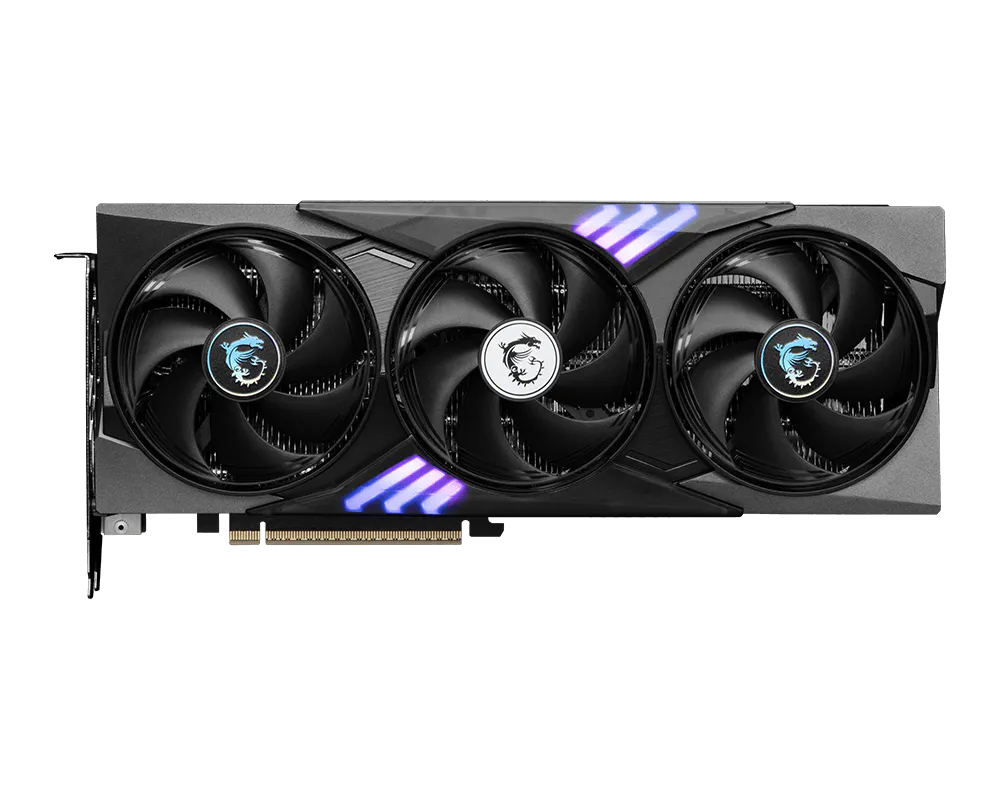

MSI GeForce RTX™ 5060 Ti 8G GAMING TRIO OC Graphics Card

The MSI GeForce RTX™ 5060 Ti 8G GAMING TRIO OC is an NVIDIA GeForce RTX 5060 Ti graphics card powered by NVIDIA Blackwell architecture. It features 8GB of GDDR7 memory, a 128-bit memory interface and 28 Gbps memory speed.

The exact GAMING TRIO OC variant has a 2647 MHz Boost clock and up to 2662 MHz Extreme Performance clock through MSI Center. It uses MSI's TRI FROZR 4 thermal design with STORMFORCE fans, a nickel-plated copper baseplate, Core Pipes, Wave Curved 4.0, Air Antegrade Fin 2.0 and a reinforcing metal backplate. 

Key Features

• NVIDIA GeForce RTX™ 5060 Ti
• NVIDIA Blackwell architecture
• 8GB GDDR7 memory
• 128-bit memory interface
• 28 Gbps memory speed
• 2647 MHz Boost clock
• 2662 MHz Extreme Performance clock via MSI Center
• 4608 CUDA cores
• MSI TRI FROZR 4 thermal design
• Triple STORMFORCE fans
• Nickel-plated copper baseplate
• Core Pipes
• Wave Curved 4.0
• Air Antegrade Fin 2.0
• Zero Frozr technology
• Reinforcing metal backplate
• PCI Express 5.0 x16 interface operating at x8
• 3 × DisplayPort 2.1b
• 1 × HDMI 2.1b
• Up to 4 displays
• 7680 × 4320 maximum digital resolution
• 600W recommended PSU
• 1 × 16-pin power connector
• NVIDIA DLSS 4.5
• NVIDIA Reflex 2
• NVIDIA Studio support 

Complete Technical Specifications

• Brand: MSI
• Model: GeForce RTX™ 5060 Ti 8G GAMING TRIO OC
• Series: GAMING TRIO OC
• GPU/CPU/Product Type: NVIDIA GeForce RTX™ 5060 Ti Graphics Card
• Architecture: NVIDIA Blackwell
• Memory: 8GB
• Memory Type: GDDR7
• Memory Bus: 128-bit
• Memory Speed: 28 Gbps
• Clock Speed: Boost 2647 MHz; Extreme Performance 2662 MHz via MSI Center
• CUDA Cores: 4608
• Interface: PCI Express 5.0 x16, uses x8
• Dimensions: 300 × 125 × 44 mm
• Power Consumption: 180W
• Power Connector: 1 × 16-pin
• Recommended PSU: 600W
• Cooling: TRI FROZR 4
• Fan Technology: STORMFORCE Fan
• Fan Count: 3
• Zero Frozr: Yes
• DisplayPort: 3 × DisplayPort 2.1b
• HDMI: 1 × HDMI 2.1b
• Maximum Displays: 4
• Maximum Digital Resolution: 7680 × 4320
• DirectX: DirectX 12 Ultimate
• OpenGL: 4.6
• G-SYNC: Yes
• Backplate: Reinforcing metal backplate
• Model Name: G506T-8GTC
• SKU / P/N: 912-V536-022
• Card Weight: 839 g
• Package Weight: 1345 g 

GPU Architecture

The exact product uses NVIDIA Blackwell architecture with fifth-generation Tensor Cores, new Streaming Multiprocessors and fourth-generation Ray Tracing Cores. It supports NVIDIA DLSS 4.5, neural rendering, NVIDIA Reflex 2, NVIDIA ACE and NVIDIA Studio technologies. 

Memory

The exact GAMING TRIO OC model contains 8GB GDDR7 memory using a 128-bit memory interface and 28 Gbps memory speed. 

Cooling System

MSI's TRI FROZR 4 thermal design combines three STORMFORCE fans with a nickel-plated copper baseplate, Core Pipes, Wave Curved 4.0 and Air Antegrade Fin 2.0. Zero Frozr stops the fans at lower temperatures to reduce unnecessary noise. 

Gaming and Creator Features

The RTX 5060 Ti platform supports NVIDIA DLSS 4.5 with Dynamic Multi Frame Generation, full ray tracing with neural rendering, NVIDIA Reflex 2, NVIDIA ACE, NVIDIA Studio and NVIDIA Broadcast technologies. 

Display Connectivity

The exact model provides 3 × DisplayPort 2.1b and 1 × HDMI 2.1b. MSI specifies support for up to four displays and a maximum digital resolution of 7680 × 4320. 

Power Requirements

The exact model has 180W power consumption, uses one 16-pin power connector, and MSI recommends a 600W PSU. MSI also specifies an ATX 3.1 PSU recommendation for the 16-pin connection. 

Physical Specifications

The exact GAMING TRIO OC model measures 300 × 125 × 44 mm and weighs 839 g. The package weight is 1345 g. 

Compatibility

• PCI Express 5.0 x16 interface, operating at x8
• Requires a compatible PCI Express graphics-card slot
• 600W recommended system PSU
• Requires one 16-pin power connector
• ATX 3.1 PSU recommended
• Supports up to four displays
• Supports DirectX 12 Ultimate
• Supports OpenGL 4.6
• Supports NVIDIA G-SYNC
• Suitable for gaming, content creation and AI-accelerated applications

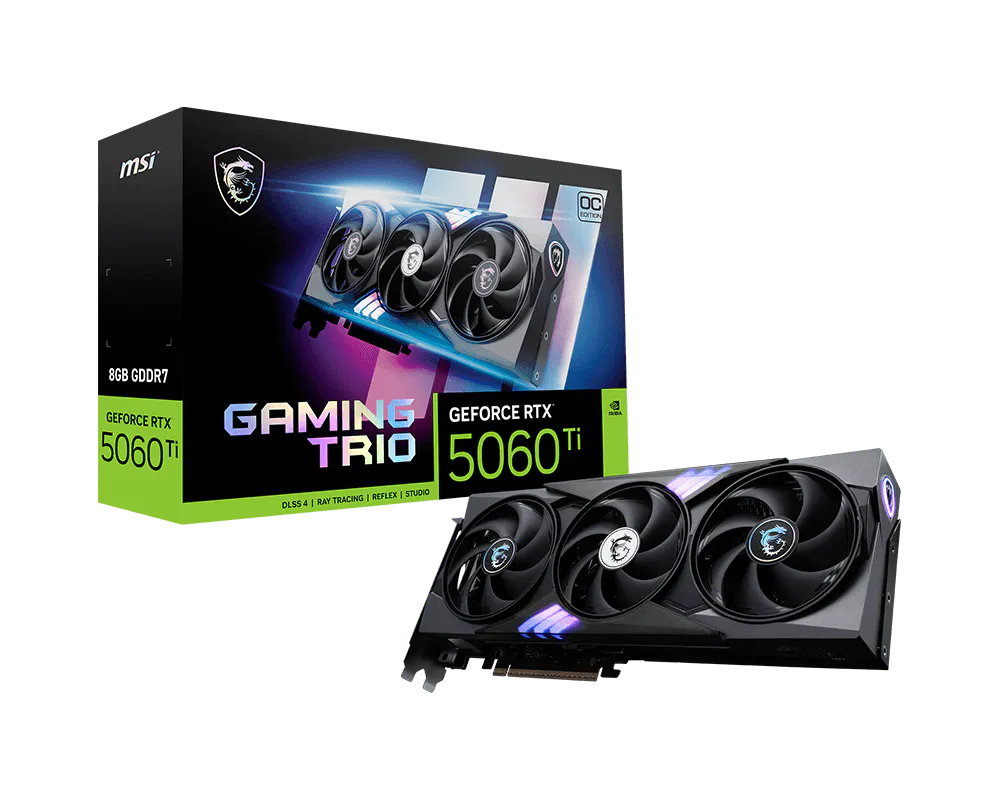

Package Includes

• MSI GeForce RTX™ 5060 Ti 8G GAMING TRIO OC Graphics Card
• Bundled graphics-card support stand
• Other package contents: Not Available
