LIAN LI SUP01 Black PC Case
LIAN LI SUP01 Black PC Case
Couldn't load pickup availability
The LIAN LI SUP01 is a compact small-tower PC case with a 44.8L stand-up platform design. It features front-facing GPU installation, a PCIe 4.0 riser cable, independent chambered cooling and three pre-installed 120mm PWM fans. The case supports ATX, Micro-ATX and Mini-ITX motherboards, including ATX back-connect motherboards.
Key Features
- 44.8L compact stand-up platform design
- Front-facing GPU installation
- PCIe 4.0 riser cable included
- 3 × 120mm PWM fans included
- Independent chambered direct cooling
- Supports ATX, Micro-ATX and Mini-ITX motherboards
- Supports ATX back-connect motherboards
- Supports GPUs up to 400mm
- Supports GPUs up to 4 slots thick
- Supports 360mm / 280mm radiators
- Supports ATX PSUs up to 220mm
- Dual ARGB lighting strips
- Tempered-glass panel
- Magnetic dust filters
Complete Technical Specifications
| Specification | Details |
|---|---|
| Brand | LIAN LI |
| Model | SUP01 |
| Series | SUP |
| Model Number | SUP01X |
| Color | Black |
| Product Type | Small Tower PC Case |
| Case Type | Small Tower |
| Capacity | 44.8L |
| Dimensions | 403.45 × 212 × 534 mm (D × W × H) |
| Material | Steel, 4.0mm Tempered Glass |
| Riser Cable | PCIe 4.0 |
| Motherboard Support | ATX / Micro-ATX / Mini-ITX |
| Back-Connect Support | ATX Back-Connect |
| PSU Support | ATX |
| Maximum PSU Length | 220mm |
| Included Fans | 3 × 120mm PWM |
| Fan Speed | 300–1800 RPM |
| Maximum Air Pressure | 2.56 mmH₂O |
| Maximum Airflow | 68.88 CFM |
| Side Fan Support 1 | 3 × 120mm |
| Side Fan Support 2 | 3 × 120mm / 2 × 140mm |
| Rear Exterior Fan Support | 1 × 120mm |
| Radiator Support | 360mm / 280mm / 240mm |
| GPU Clearance | Up to 400mm |
| GPU Thickness | Up to 4 slots |
| CPU Cooler Height Clearance | Up to 88.2mm |
| Expansion Slots | 7 low-profile / 4 standard-profile with extension cable |
| Drive Cage | 2 × 2.5-inch SSD or 2 × 3.5-inch HDD |
| Additional Storage | 2 × 2.5-inch SSD above PSU shroud |
| Maximum Storage | Up to 4 × 2.5-inch SSD or 2 × 3.5-inch HDD + 2 × 2.5-inch SSD |
| I/O Ports | 2 × USB 3.0 Type-A, 1 × USB 3.1 Type-C, 1 × Mic |
| Controls | Power, Reset, Light Color, Light Mode |
| Dust Filters | Bottom, Front Magnetic, Top Magnetic |
| Warranty | 1 Year |
| SKU / P/N | G99.SUP01X.00 |
| Barcode / EAN | 4718466015587 |
Cooling System

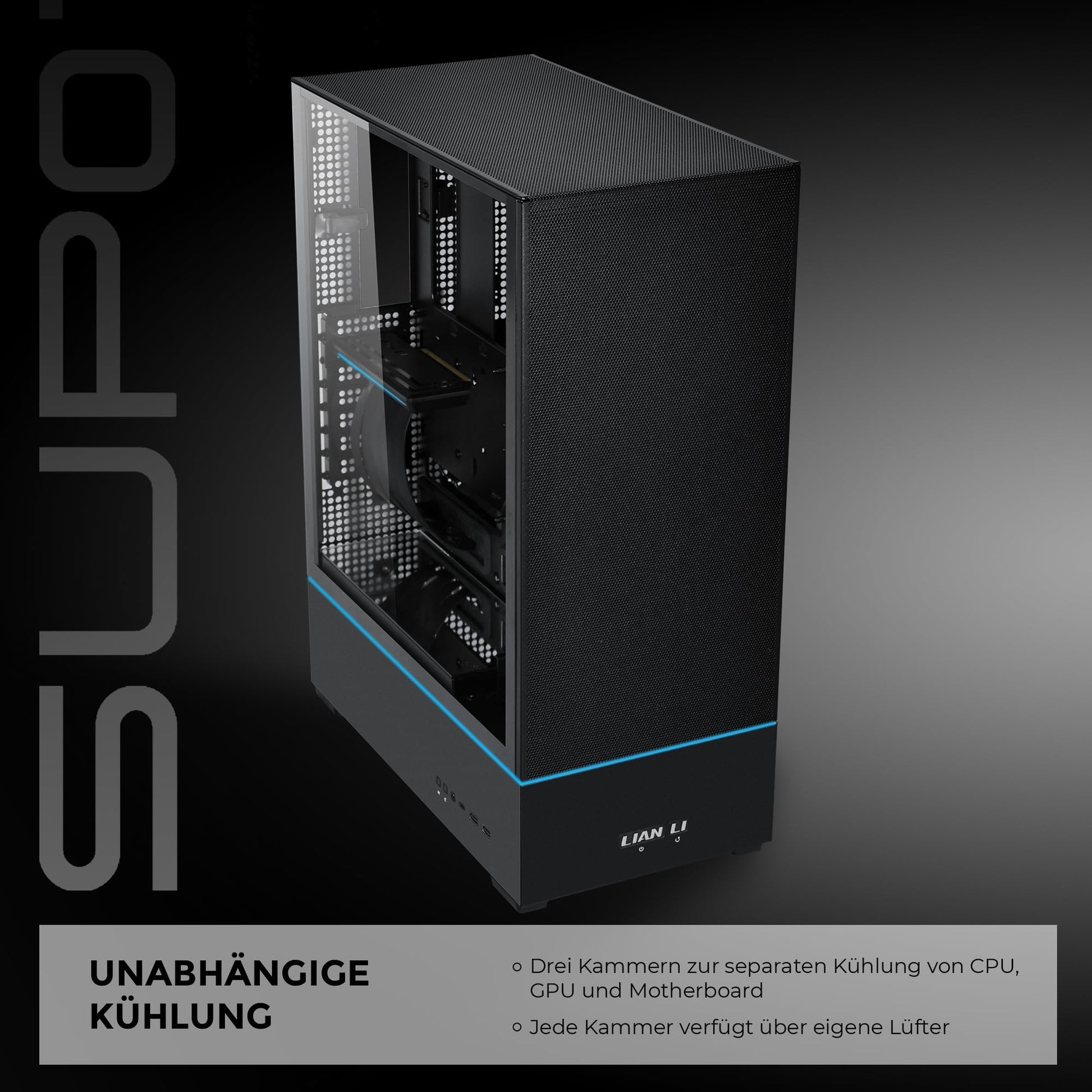

The SUP01 uses an independent chambered cooling layout. Three pre-installed 120mm PWM fans provide direct airflow for the graphics card, while additional fan mounting positions are available for system cooling.
Included Fans
- 3 × 120mm PWM fans
- Fan speed: 300–1800 RPM
- Maximum airflow: 68.88 CFM
- Maximum air pressure: 2.56 mmH₂O
Graphics Card Support
The front-facing GPU mounting system supports graphics cards up to 400mm long and up to 4 slots thick. The adjustable mounting bracket allows flexible GPU positioning.
Radiator Support
- 360mm
- 280mm
- 240mm
The radiator mounts on Side 2.
Motherboard Compatibility
- ATX
- Micro-ATX
- Mini-ITX
- ATX Back-Connect
Storage Support
- 2 × 2.5-inch SSD or 2 × 3.5-inch HDD in the drive cage
- 2 × 2.5-inch SSD above the PSU shroud
Front I/O
- 2 × USB 3.0 Type-A
- 1 × USB 3.1 Type-C
- 1 × Microphone
- Power Button
- Reset Button
- Light Color Button
- Light Mode Button
Compatibility
- ATX motherboards
- Micro-ATX motherboards
- Mini-ITX motherboards
- ATX back-connect motherboards
- ATX PSU up to 220mm
- Graphics cards up to 400mm
- Graphics cards up to 4 slots thick
- CPU coolers up to 88.2mm
- 240mm / 280mm / 360mm radiators
Package Includes
- LIAN LI SUP01 Black PC Case
- 3 × 120mm PWM Fans
- PCIe 4.0 Riser Cable
- GPU Mounting Bracket
- Case Accessories
Warranty
1 Year
