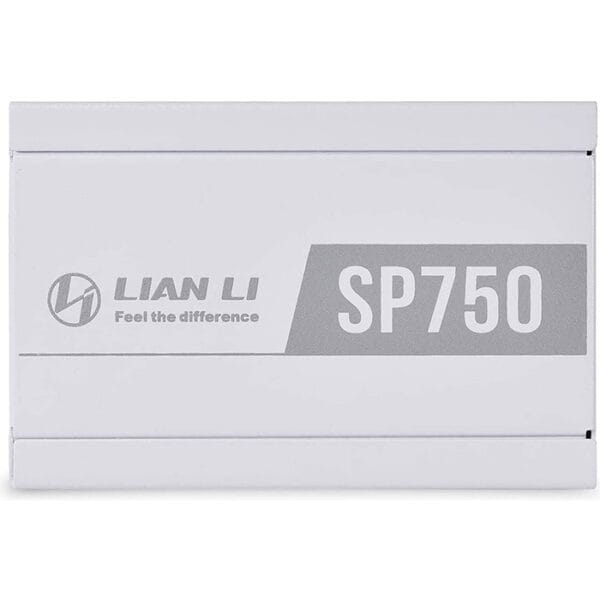

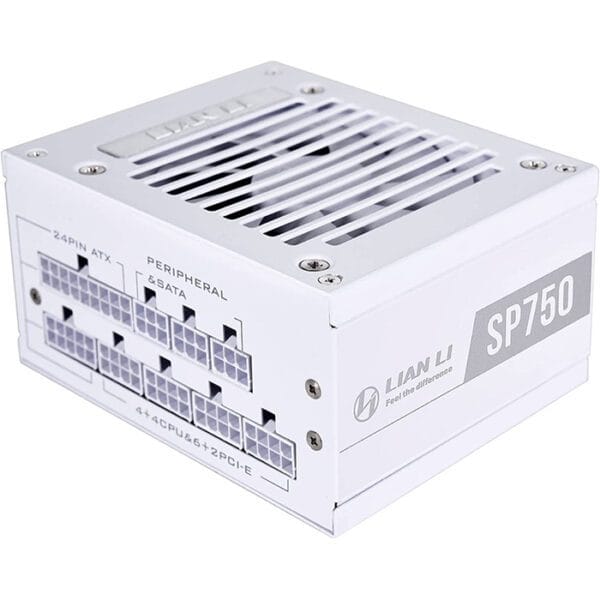

Lian Li SP750 750W 80 Plus Gold Certified Power Supply, Fully Modular, Active PFC, SFX Form Factor, White
Lian Li SP750 750W 80 Plus Gold Certified Power Supply, Fully Modular, Active PFC, SFX Form Factor, White
Couldn't load pickup availability
Available in Dual Colors
Presenting a Sophisticated Black Aesthetic with Aluminum Housing and a Striking Full White Design.
Certified for 80 PLUS Gold Efficiency
The SP750 boasts an 80 PLUS Gold certification, ensuring a remarkable efficiency of up to 92%, thereby minimizing energy wastage.

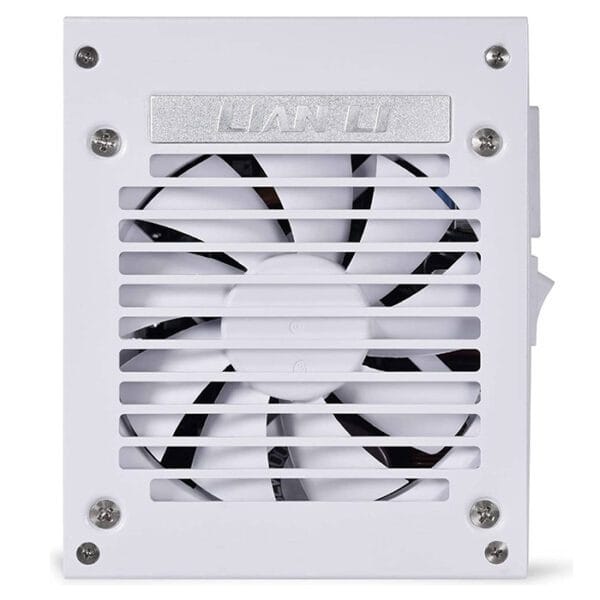

Silent Cooling Mechanism
Incorporating a 92mm hydraulic bearing fan, the SP750 operates in a zero RPM mode until the load reaches 40%, ensuring whisper-quiet operation.
Premium Japanese Electrolytic Capacitors
Enhancing durability, long-term reliability, and supreme stability, the SP750 is equipped with top-grade Japanese electrolytic capacitors.
Seamless Modular Connectivity with Braided Cables Included
Facilitating a neat and elegant setup, the fully modular power supply comes with a set of braided cables right out of the box, reducing cable clutter and elevating aesthetics.
Specification,
| MODEL | SP750 |
| DIMENSIONS | (D)100 mm X (W)63.5mm X (H)125 mm |
| POWER SUPPLY DESIGN | Fully modular |
| COLOR | White |
| MATERIAL | Steel/brushed aluminum housing |
| FORM FACTOR | SFX |
| CERTIFICATION | 80 PLUS Gold |
| MAX. DC OUTPUT | 750W |
| COMBINED +3.3V & +5V | 100W |
| COMBINED +12V | 744W |
| INPUT VOLTAGE | 100 – 240 Vrms |
| INPUT FREQUENCY RANGE | 50Hz – 60 Hz |
| PFC | Active PFC (PF)>0.90 at full load |
| EFFICIENCY | 91.89% Max |
| PROTECTIVE CIRCUIT | OCP/ OPP/ UVP/ OVP/ OTP/ SCP |
| CONNECTORS | 1 x 24 / 20-Pin motherboard connector (300mm) x 1pcs 2 x 8 / 4-Pin CPU / ATX 12V connector (450mm-70mm) x 1 pcs 1 x 8 / 6+2 Pin PCIe connector (400mm) x 1pcs 2 x 8 / 6+2 Pin PCIe connector (400mm-120mm) x 1pcs 4 x SATA connector (120mm-120mm-120mm-120mm) x 2pcs 4 x 4-Pin Peripheral connector (120mm-120mm-120mm-120mm) x 1pcs |
| 750W FAN RPM | 1000-2800 RPM |
| NOISE LEVEL | 17.1-43.1 DBA |
| BEARING TYPE | 31.Fluid Dynamic Bearing (FDB) |
