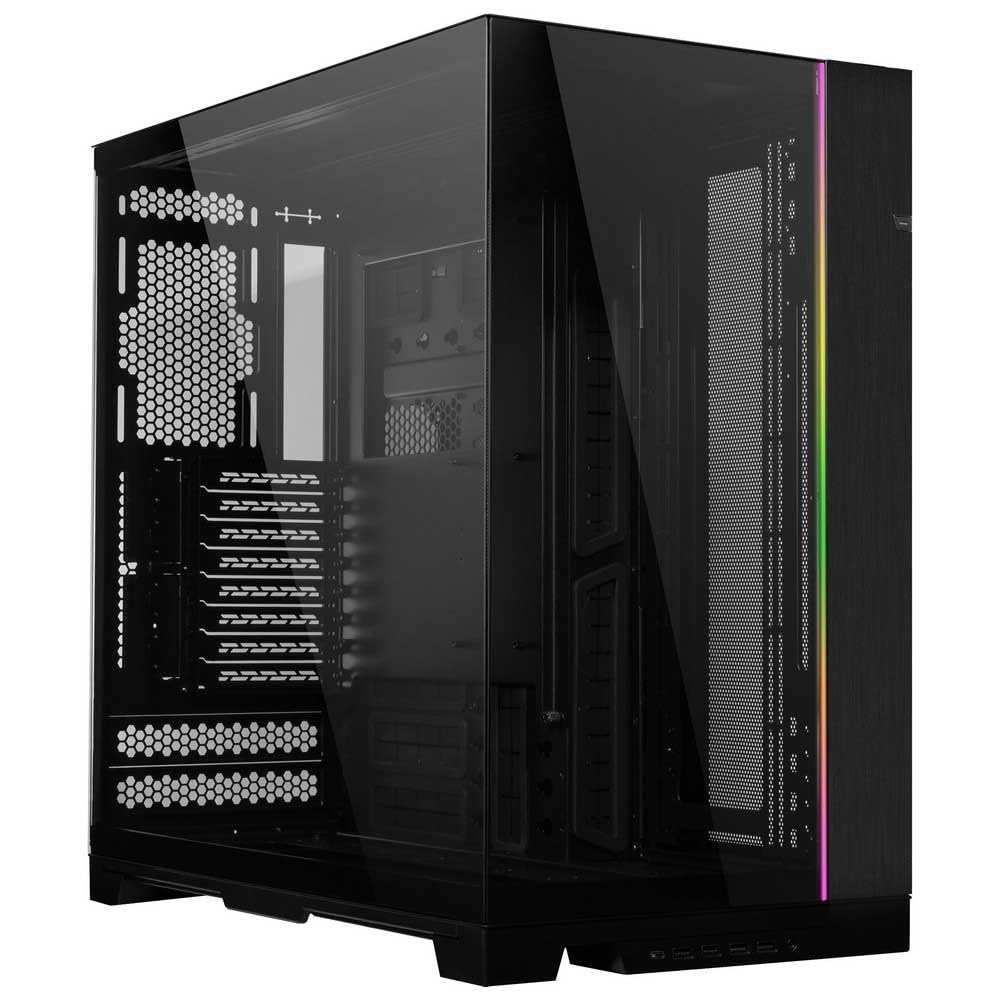

LIAN LI O11 DYNAMIC EVO XL Black PC Case
LIAN LI O11 DYNAMIC EVO XL Black PC Case
Couldn't load pickup availability
-
The LIAN LI O11 DYNAMIC EVO XL is a full-tower dual-chamber PC case designed for high-performance gaming and workstation systems. It features a reversible chassis layout, removable front pillar, adjustable motherboard tray, extensive radiator support and space for large graphics cards. The case supports up to three 420mm radiators, up to 11 fans and up to seven storage drives.
Key Features
- Full-tower dual-chamber design
- Reversible chassis configuration
- Removable front pillar
- Tempered-glass front and side panels
- Fine-mesh top and side panels
- Supports E-ATX, ATX, Micro-ATX and Mini-ITX
- Supports graphics cards up to 460mm
- Supports CPU coolers up to 167mm
- Supports up to 11 fans
- Supports up to three 420mm radiators
- Supports up to 7 storage drives
- Adjustable motherboard tray with three height positions
- Included GB-003 GPU anti-sag bracket
- Relocatable I/O module
- Dual-chamber cable-management design
Complete Technical Specifications
Specification Details Brand LIAN LI Model O11 DYNAMIC EVO XL Series O11 Color Black Product Type Full-Tower PC Case Model Number O11DEXL-X SKU / P/N G99.O11DEXL-X.00 Case Type Tower Chassis Dimensions 522 × 304 × 531.9 mm (D × W × H) Material Steel, 4.0mm Tempered Glass, Aluminium Motherboard Support E-ATX under 280mm, ATX, Micro-ATX, Mini-ITX Expansion Slots 8 GPU Length Clearance 460mm maximum CPU Cooler Height Clearance 167mm maximum PSU Support ATX under 220mm PSU Quantity 1 Top Fan Support 3 × 120mm / 3 × 140mm Side Fan Support 3 × 120mm / 3 × 140mm Bottom Fan Support 3 × 120mm / 3 × 140mm Rear Fan Support Up to 2 × 120mm Maximum Fan Support 11 × fans Top Radiator Support 240mm / 280mm / 360mm / 420mm Side Radiator Support 240mm / 280mm / 360mm / 420mm Bottom Radiator Support 240mm / 280mm / 360mm / 420mm Maximum Radiator Support 3 × 420mm radiators Storage Support Up to 7 drives Behind Motherboard Tray 3 × 2.5-inch SSD Drive Cage 4 × 3.5-inch HDD / 2.5-inch SSD I/O Ports 4 × USB 3.0, 1 × USB Type-C, 1 × Audio Power Button 1 Reset Button 1 LED Controls 1 × LED Color Button, 1 × LED Mode Button Dust Filters 1 × Bottom, 1 × Top, 2 × Side GPU Anti-Sag Bracket GB-003 Chassis Mode Normal / Reverse Motherboard Tray Positions 3 Warranty 1 Year EAN 4718466013712 Chassis Design
The O11 DYNAMIC EVO XL uses a dual-chamber full-tower design with separate component and cable-management areas. The chassis can be configured in normal or reverse mode for different component viewing orientations.
Motherboard Compatibility
- E-ATX under 280mm
- ATX
- Micro-ATX
- Mini-ITX
The motherboard tray provides three adjustable height positions to accommodate different fan and radiator configurations.
Graphics Card Support
The case supports graphics cards up to 460mm in length.
An adjustable GB-003 GPU anti-sag bracket is included for additional graphics card support.
Cooling Support
Fan mounting positions:
- Top: 3 × 120mm / 3 × 140mm
- Side: 3 × 120mm / 3 × 140mm
- Bottom: 3 × 120mm / 3 × 140mm
- Rear: up to 2 × 120mm
Maximum fan capacity is 11 fans.
Radiator Support
- Top: 240mm / 280mm / 360mm / 420mm
- Side: 240mm / 280mm / 360mm / 420mm
- Bottom: 240mm / 280mm / 360mm / 420mm
The case can accommodate up to three 420mm radiators simultaneously.
Storage Support
The case supports up to 7 storage drives:
- Behind motherboard tray: 3 × 2.5-inch SSD
- Drive cage: 4 × 3.5-inch HDD or 2.5-inch SSD
Front I/O
- 1 × Power Button
- 1 × Reset Button
- 4 × USB 3.0
- 1 × USB Type-C
- 1 × Audio
- 1 × LED Color Button
- 1 × LED Mode Button
The I/O module can be relocated to different positions on the chassis.
Compatibility
- E-ATX motherboards under 280mm
- ATX motherboards
- Micro-ATX motherboards
- Mini-ITX motherboards
- ATX PSUs under 220mm
- Graphics cards up to 460mm
- CPU coolers up to 167mm
- Radiators up to 420mm
- Up to 11 fans
Package Includes
- LIAN LI O11 DYNAMIC EVO XL Black PC Case
- GB-003 GPU Anti-Sag Bracket
- Case Accessories
Warranty
1 Year
