| Model |

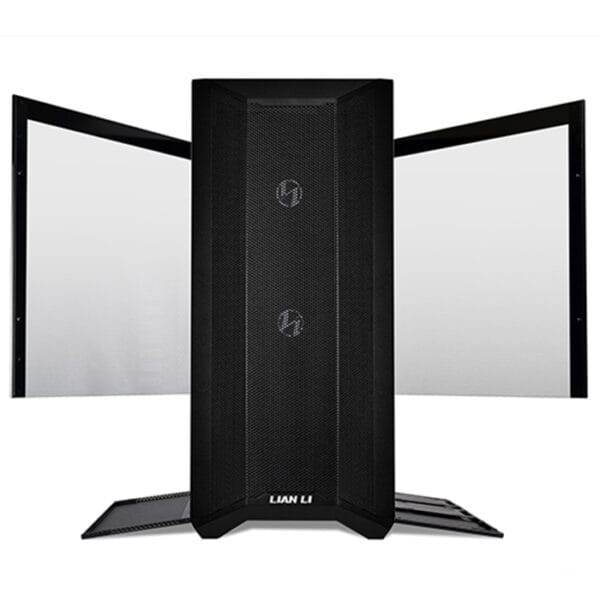

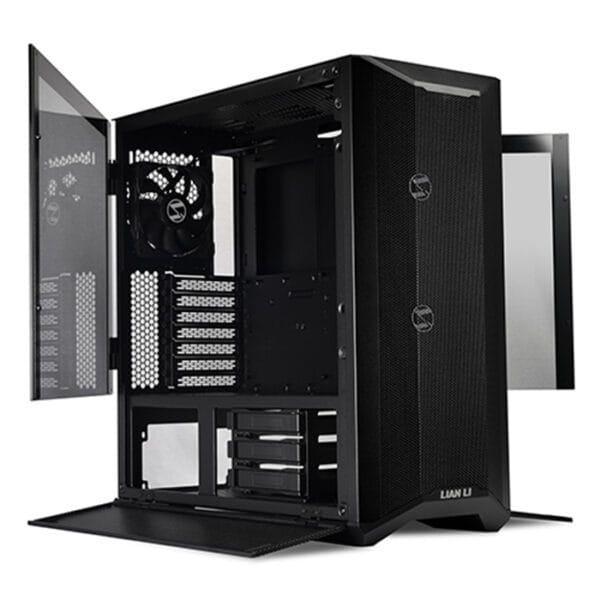

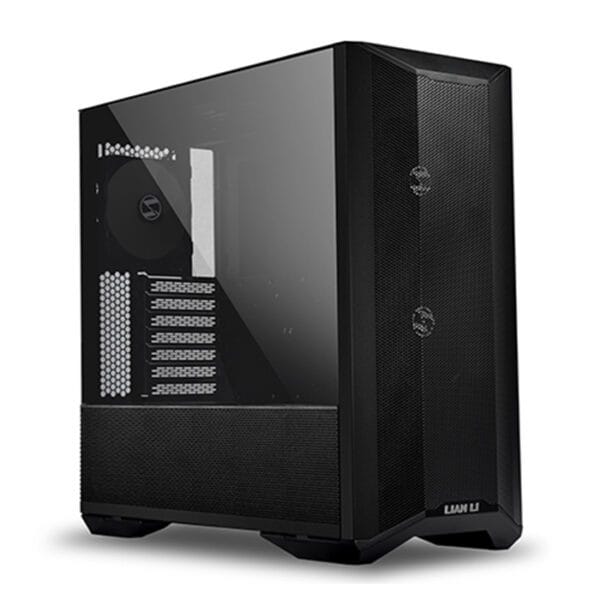

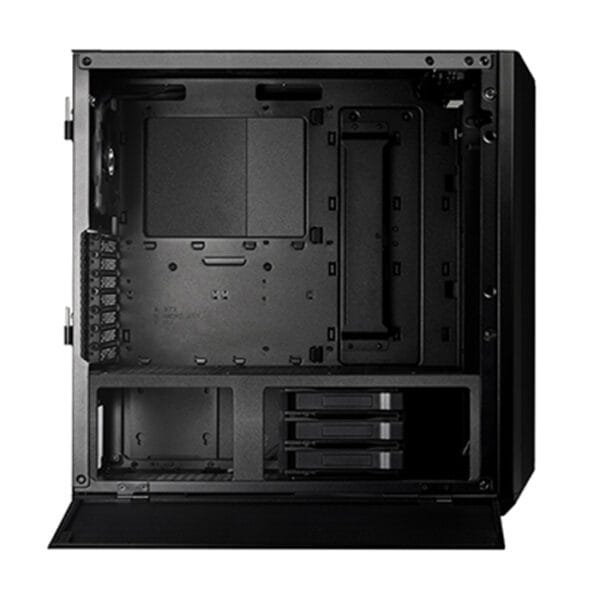

LANCOOL II MESH PERFORMANCE |
| Dimensions |
(D) 478mm x (W) 229mm x (H) 494mm |
| Motherboard |
E-ATX(width: under 280mm)/ATX/M-ATX/ITX |
| PSU |
210mm |
| Color |
black |
| Materials |
Steel
4.0mm tempered glass (both sides)
|
| Fan Support |
Front: 2 x 140mm or 3 x 120mm
Top: 2 x 120mm or 2 x 140mm
Top of PSU chamber: 2 x 120mm |
| Radiator |
Front (multi-way fan/radiator bracket): 1 x 360/280/240mmTop: 1 x 240mm (aligned to the left) |
| VGA Length |
384mm |
| CPU Clearance |
176mm |
| Drive |
Behind MB Tray: 2 x 2.5″ SSDBehind the right flip panel: 2 x 2.5”SSD
Hard Drive Cage: 3 x 3.5″ HDD/2.5″ SSD
Above PSU Chamber: 2 x 2.5″ SSD
|
| Slot |
7 |
| I/O Ports |
1 x Fan speed control button1 x TRRS AUDIO
2 x USB 3.0
1 x USB 3.1 TYPEC
|
| Dust Filters |
1 x Top (magnetic), 1 x Bottom (tray) |
| Incl Fans |

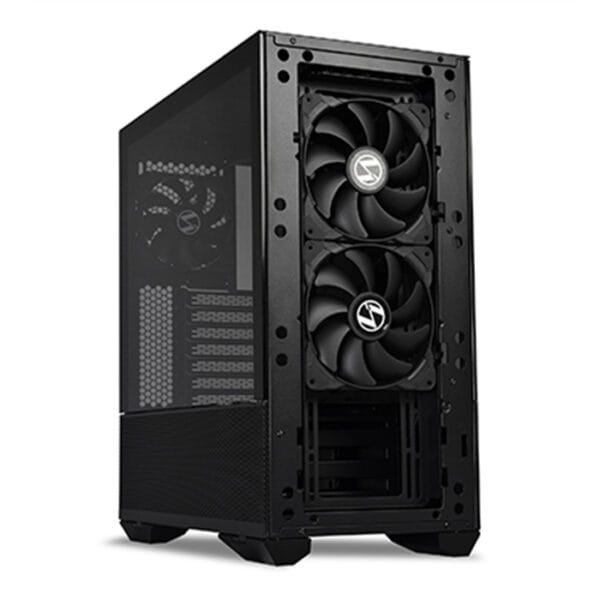

2 x 140mm PWM Fan (front)
Rated Speed:600 ±200 (30% Duty)-1200RPM ±10%
Air Flow:60.56CFM
Noise:25.8dB(A)1x 120mm PWM fan (rear)
Rated Speed:600 ±200 (30% Duty)-1500RPM ±10%
Air Flow:54.6CFM
Noise:26.1dB(A) |
