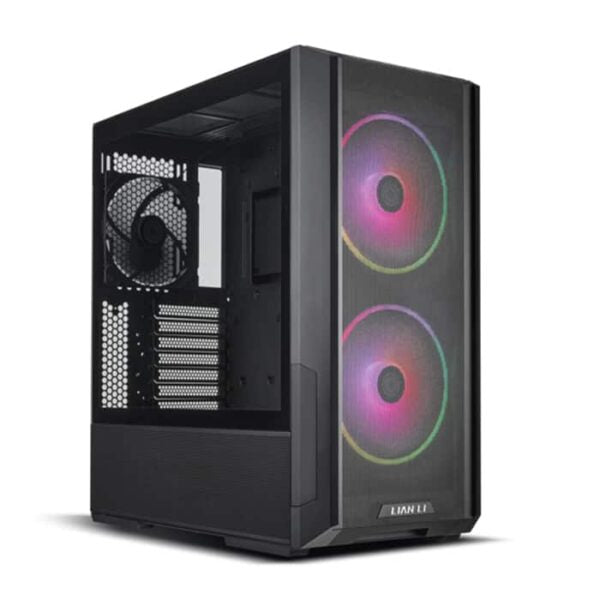

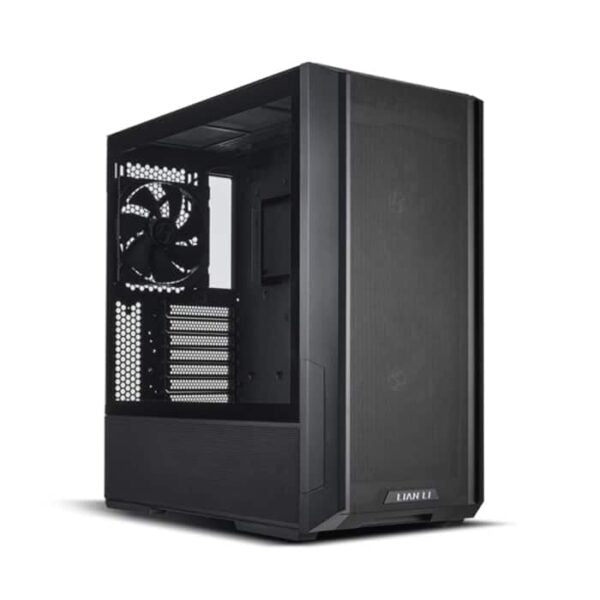

Lian-Li LANCOOL 216 ATX Mid-Tower PC Case, Black

UNINTERRUPTED FRONT TO TOP MESH

To ensure consistent airflow throughout the system, the LANCOOL 216 features mesh panels on the front, top, and along the side of the PSU shroud*. The front mesh extends seamlessly to the top, creating an unbroken mesh panel.

The mesh panel adjacent to the PSU shroud chamber is detachable but also serves as an integral part of the support structure for the side tempered glass panel. Please remove with caution!

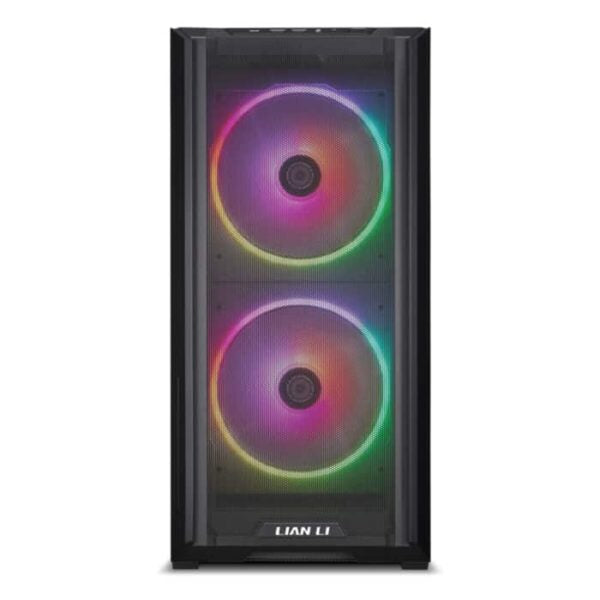

INCLUDED: 2 x 160MM FRONT FANS AND 1 x 140MM REAR FAN

LANCOOL 216 RGB FANS The included 160mm ARGB fans incorporate dual LED channels (one outlining the fan's edge and another along the fan blade shaft) that can be individually controlled through an optional accessory or by directly connecting to a motherboard's 5V 3-pin header via motherboard lighting software.

Located in the second chamber behind the motherboard, a SATA-powered fan hub can support up to 4 ARGB and PWM fans.

AIR COOLING MODE / WATER COOLING MODE

The modular motherboard I/O enables users to reposition the motherboard to a higher location, which is ideal for air-cooled systems, or a lower position for water-cooled setups.

AIR COOLING

In the elevated position, the motherboard creates space above the PSU shroud for broader fans.

WATER COOLING

In the lowered position, the motherboard leaves a 63mm gap at the top for radiator/fan combinations, making it perfect for AIOs or custom water cooling.

RELOCATABLE FRONT I/O

Featuring a power button, reset button, audio port, 2 USB 3.0 ports, and a USB Type C port, the front I/O module can be moved to the lower left side of the front panel.

HARDWARE COMPATIBILITY The LANCOOL 216

accommodates ATX, Micro-ATX, MINI-ITX motherboards, and E-ATX under 280mm in width (when the grommet bar is flipped 180°). Additionally, thanks to its symmetrical design, cable management in the 2nd chamber remains unaffected.

NEXT-GEN GPU READY

With space for graphics cards up to 392mm in length and 180mm in height (for air cooling mode), the LANCOOL 216 is compatible with even the largest NVIDIA 4000 series cards.

PRESSURE-LEAK PREVENTION

A seal plate pre-installed at the front of the top radiator bracket ensures no pressure leaks occur when installing a radiator smaller than 360 or 3x120mm fans on top.

REMOVABLE TOP RADIATOR BRACKET

The top mounting bracket can be completely removed from the case to facilitate hardware installation. The bracket detaches with the left side frame bar, providing optimal clearance.

Two grooves have been added to allow fan cables to pass into the second chamber of the case, simplifying cable management and improving the overall build's appearance.

PCIE FAN BRACKET

In air cooling mode, placing the GPU at the top of the expansion slots opens the possibility of adding a 120mm fan at the rear of the case without obstructing the GPU I/O. This is also feasible with a vertically mounted GPU in both air-cooled and water-cooled configurations. The additional 120mm fan enhances GPU cooling and promotes a better intake/exhaust balance for the system.

VERTICAL GPU COMPATIBLE

The PCIe expansion slot panel can be rotated to vertically install GPUs, requiring only an additional riser cable.

STORAGE UP TO 6 x SSD + 2 X HDD STORAGE CAPACITY

The LANCOOL 216 provides various options for easy cable management. Along the cable grommet bar, 3 large velcro straps can secure 2 different cable sets. 3 small clips are positioned along the rear side panel, facilitating the tidy routing of the CPU 8-pin cable. Additionally, 2 extra velcro straps near the PSU chamber help keep excess PSU cable length away from the ventilation path in the bottom chamber.

OPTIONAL ACCESSORIES ARGB CONTROL & USB MODULE

An additional ARGB control & USB module can be attached to the side of the front panel for enhanced control over the front ARGB fans. This module allows users to create custom lighting patterns by independently blending the light effects of both LED channels.A versatile mid-tower chassis designed to accommodate both air cooling and water cooling configurations
