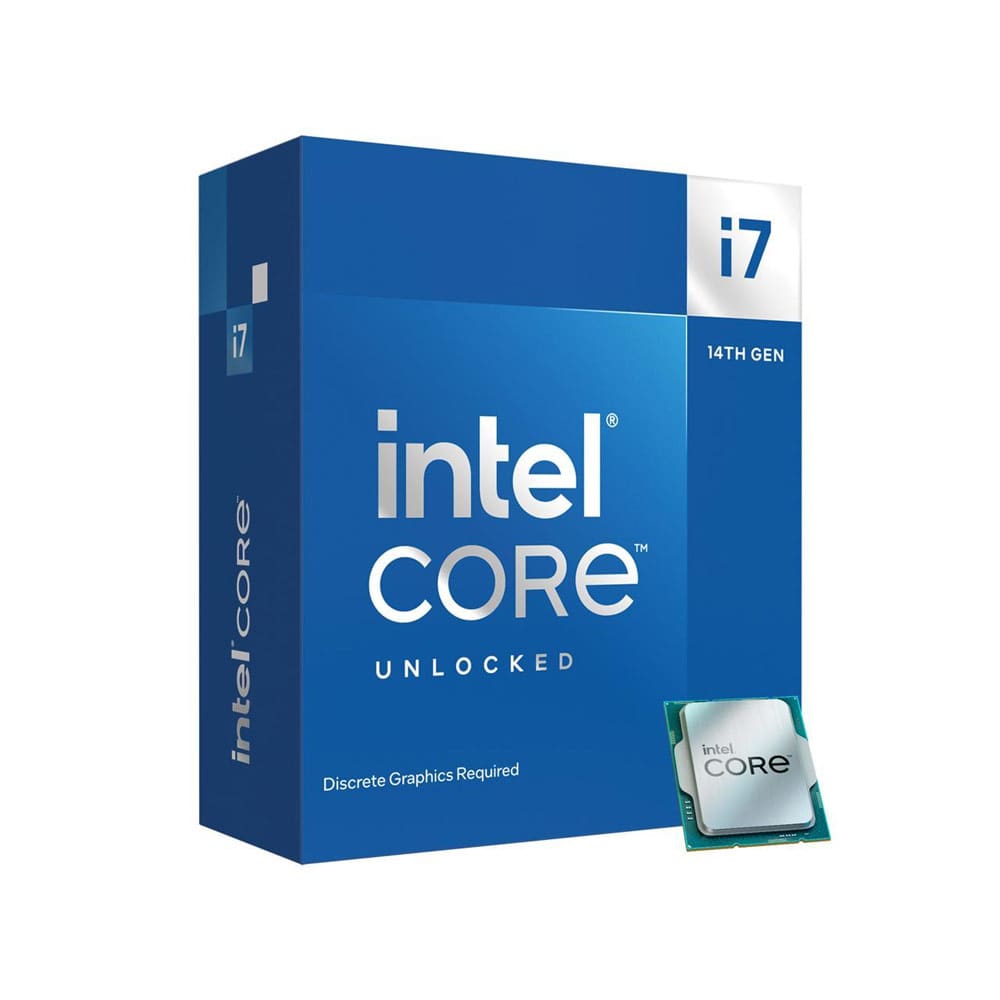

Intel Core i7 14700KF Processor
Intel Core i7 14700KF Processor
Couldn't load pickup availability
Featuring 20 cores, comprising 8 high-performance P-cores and 12 energy-efficient E-cores, this processor also provides 28 threads for multitasking capabilities. Its performance hybrid architecture adeptly combines two distinct core microarchitectures to prioritize and distribute workloads for optimized performance.
With a generous unlocked clock speed of up to 5.6 GHz and a substantial 33MB cache, this processor delivers robust computing power. It's fully compatible with Intel 600-series and 700-series chipset-based motherboards, with the potential for a BIOS update for seamless integration.
This CPU supports Turbo Boost Max Technology 3.0, as well as PCIe 5.0 and 4.0 for advanced connectivity options. Users can take advantage of both DDR4 and DDR5 memory support, but it's important to note that no thermal solution is included. Additionally, discrete graphics are required for optimal performance.
Specification,
| Product Collection | Intel® Core™ i7 Processors (14th gen) |
| Code Name | Products formerly Intel Core i7 14700KF RAPTOR LAKE |
| Vertical Segment | Desktop |
| Processor Number | i7-14700KF |
| Lithography | Intel 7 |
| Use Conditions | PC/Client/Tablet |
| CPU Specifications | |
| Total Cores | 20 |
| # of Performance-cores | 8 |
| # of Efficient-cores | 12 |
| Total Threads | 28 |
| Max Turbo Frequency | 5.6 GHz |
| Intel Turbo Boost Max Technology 3.0 Frequency | 5.6 GHz |
| Performance-core Max Turbo Frequency | 5.5 GHz |
| Efficient-core Max Turbo Frequency | 4.3 GHz |
| Performance-core Base Frequency | 3.4 GHz |
| Efficient-core Base Frequency | 2.5 GHz |
| Cache | 33 MB Intel Smart Cache |
| Total L2 Cache | 28 MB |
| Processor Base Power | 125 W |
| Maximum Turbo Power | 253 W |
| Supplemental Information | |
| Marketing Status | Launched |
| Launch Date | Q4’23 |
| Embedded Options Available | No |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 192 GB |
| Memory Types | Up to DDR5 5600 MT/s, Up to DDR4 3200 MT/s |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 89.6 GB/s |
| Expansion Options | |
| Direct Media Interface (DMI) Revision | 4.0 |
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations | Up to 1×16+4, 2×8+4 |
| Max # of PCI Express Lanes | 20 |
| Package Specifications | |
| Sockets Supported | FCLGA1700 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2020A |
| TJUNCTION | 100°C |
| Package Size | 45.0 mm x 37.5 mm |
| Advanced Technologies | |
| Intel Gaussian & Neural Accelerator 3.0 | Yes |
| Intel Thread Director | Yes |
| Intel Deep Learning Boost (Intel DL Boost) on CPU | Yes |
| Intel Speed Shift Technology | Yes |
| Intel Turbo Boost Max Technology 3.0 ‡ | Yes |
| Intel Turbo Boost Technology ‡ 2.0 | Yes |
| Intel Hyper-Threading Technology ‡ | Yes |
| Intel 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel SSE4.1, Intel SSE4.2, Intel AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel Volume Management Device (VMD) | Yes |
| Security & Reliability | |
| Intel Standard Manageability (ISM) ‡ | Yes |
| Intel Control-Flow Enforcement Technology | Yes |
| Intel AES New Instructions | Yes |
| Secure Key | Yes |
| Intel OS Guard | Yes |
| Execute Disable Bit ‡ | Yes |
| Intel Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel Virtualization Technology (VT-x) ‡ | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel VT-x with Extended Page Tables (EPT) ‡ | Yes |
