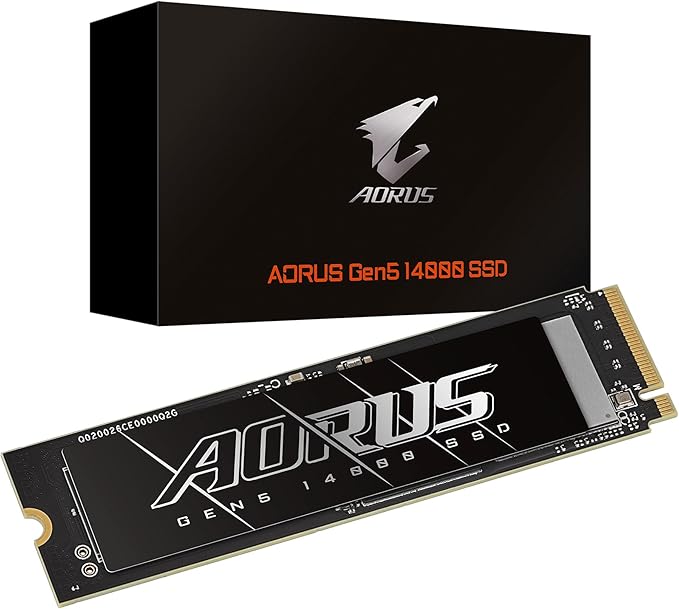

GIGABYTE AORUS Gen5 14000 1TB PCIe 5.0 NVMe M.2 SSD – Up to 14,000MB/s Extreme Speed
GIGABYTE AORUS Gen5 14000 1TB PCIe 5.0 NVMe M.2 SSD – Up to 14,000MB/s Extreme Speed
Couldn't load pickup availability
Experience next-generation storage performance with the GIGABYTE AORUS Gen5 14000 1TB NVMe M.2 SSD, engineered for extreme gaming systems, professional workstations, AI applications, and high-performance computing.
Built with the latest PCIe Gen5 x4 NVMe technology, this flagship SSD delivers ultra-fast sequential read speeds of up to 14,000MB/s, providing massive bandwidth for large file transfers, 4K/8K content creation, gaming, and demanding professional workloads.
The AORUS Gen5 14000 combines advanced controller technology, high-speed NAND flash memory, and an advanced thermal solution to maintain stable performance under heavy workloads.
Key Features
- 1TB High-Speed Storage Capacity
- PCIe Gen5 x4 NVMe Interface
- Up to 14,000MB/s Sequential Read Speed
- Up to 12,000MB/s Sequential Write Speed
- M.2 2280 Form Factor
- High-Performance 3D TLC NAND Flash
- Designed for Enthusiast Gaming PCs
- Excellent Performance for Content Creation
- Advanced Thermal Management Solution
- Supports TRIM and S.M.A.R.T.
- Ultra-Low Latency Storage
- 5-Year Limited Warranty
Complete Technical Specifications
| Specification | Details |
|---|---|
| Brand | GIGABYTE |
| Series | AORUS Gen5 14000 |
| Model | GP-AG5-14000-1TB |
| Capacity | 1TB |
| Product Type | Internal NVMe SSD |
| Form Factor | M.2 2280 |
| Interface | PCIe Gen5 x4 |
| Protocol | NVMe 2.0 |
| NAND Flash | 3D TLC NAND |
| Controller | Phison PS5026-E26 |
| DRAM Cache | DDR4 DRAM Cache |
| Sequential Read Speed | Up to 14,000 MB/s |
| Sequential Write Speed | Up to 12,000 MB/s |
| Random Read IOPS | Up to 1,550,000 IOPS |
| Random Write IOPS | Up to 1,600,000 IOPS |
| Endurance (TBW) | 700 TBW |
| MTBF | 1.6 Million Hours |
| Operating Temperature | 0°C – 70°C |
| Storage Temperature | -40°C – 85°C |
| Shock Resistance | 1500G |
| Dimensions | 80 × 22 × 2.3 mm |
| Weight | Not Available |
| Power Consumption | Not Available |
| Encryption | AES-256 Supported |
| Heatsink | Included (AORUS Thermal Solution) |
Read Speed
Up to 14,000 MB/s
Write Speed
Up to 12,000 MB/s
Random Read/Write IOPS
Random Read IOPS: Up to 1,550,000 IOPS
Random Write IOPS: Up to 1,600,000 IOPS
Interface
PCIe Gen5 x4 NVMe 2.0
Compatibility
Compatible with:
- Desktop PCs supporting PCIe Gen5 M.2 NVMe SSD
- High-end gaming PCs
- Professional workstations
- Latest Intel and AMD platforms
Supports:
- PCIe Gen5 systems (maximum performance)
- PCIe Gen4 systems (performance limited)
Not compatible with M.2 SATA slots.
Package Includes
- 1 × GIGABYTE AORUS Gen5 14000 1TB NVMe M.2 SSD
- 1 × AORUS Thermal Solution / Heatsink
Warranty
5 Years Limited Warranty
