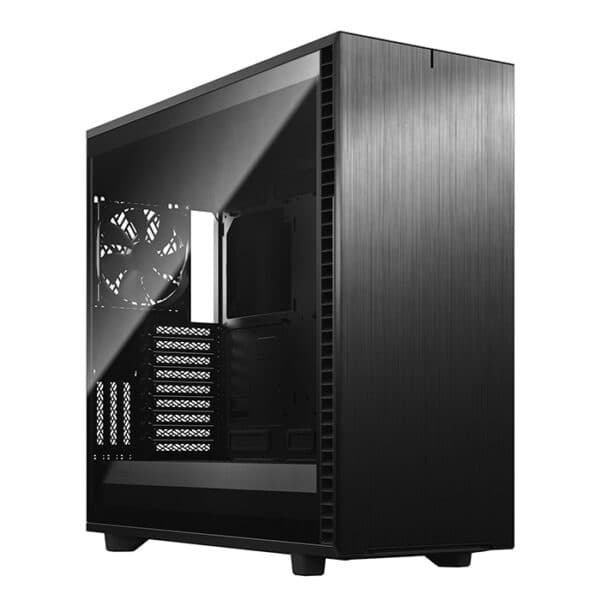

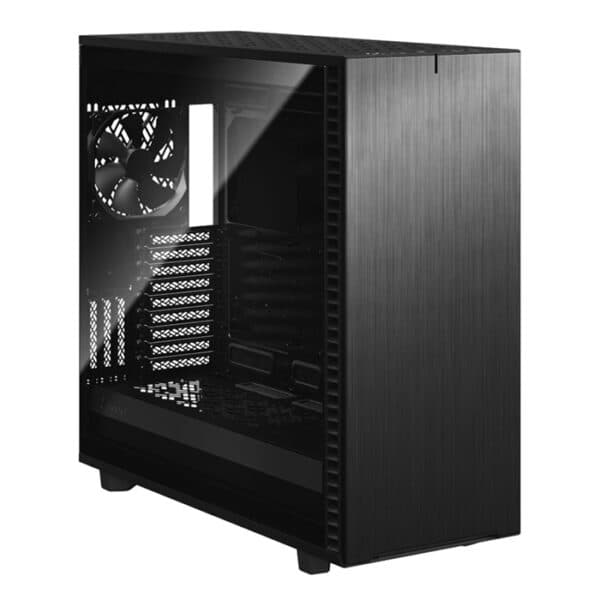

Fractal Design Define 7 XL Light Tempered Glass – Black
Fractal Design Define 7 XL Light Tempered Glass – Black
Couldn't load pickup availability
-
Versatile Dual-Layout Interior: The adaptable dual-layout interior can house motherboards up to EE-ATX and SSI-EEB, offering flexibility for various setups.
-
Ample Storage and SSD Space: Mount up to 18 HDDs or SSDs, with an additional capacity for five SSDs in the storage layout, which includes 6 HDD/SSD trays, 2 SSD brackets, and 2 multi-brackets.
-
Flexible Cooling Options: Choose the open layout for additional headroom and water-cooling support, accommodating radiators up to 480mm in the front or top and 280mm in the base.
-
Convertible ODD Bays: The two 5.25″ ODD bays can be converted into an extra front fan mount, complete with a filtered louver covering.
-
Silent and Efficient Construction: Benefit from silence-optimized construction with industrial sound-dampened front, top, and side panels.
-
Top Panel Adaptability: Easily swap the top panel between sound-dampening steel and filtered ventilation to suit your cooling needs.
-

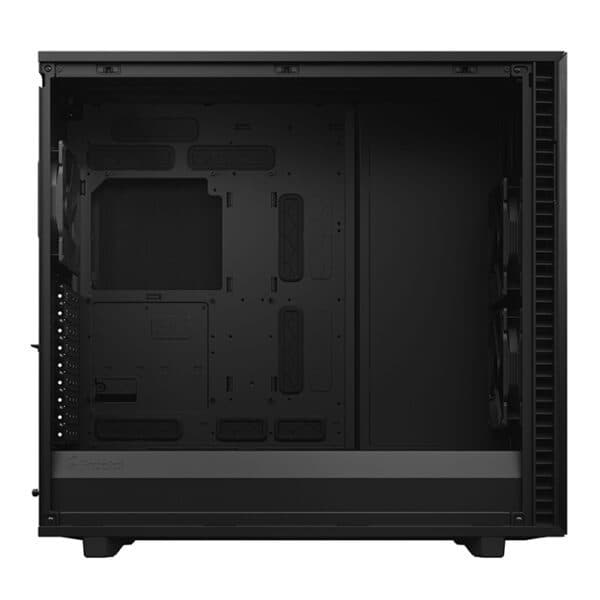

Enhanced Accessibility: The case opens up to expose the interior on three sides, simplifying installation and cable routing.
-
Anodized Aluminum Front Panel: The anodized aluminum front panel is equipped with reversible dual-handed hinges, enabling effortless opening and closing with magnetic latching.
-
Excellent Fan Support: The case supports up to nine 140mm or eleven 120mm fans, featuring three preinstalled 140mm Dynamic X2 GP-14 fans.
-
Versatile Multi-Brackets: The multi-brackets offer versatility, converting unused fan positions into mounts for HDDs, SSDs, or pumps.
-
Vertical GPU Slots: Three vertical GPU slots are available for use with the Fractal Flex VRC-25 PCIe riser (available separately).
-
Advanced Connectivity: Five front USB ports, including one USB 3.1 Gen 2 Type-C port with fast charging support and speeds up to 10 Gb/s.
-
Efficient Fan Hub: The Nexus+ 2 fan hub can connect up to three PWM fans and six 3-pin fans, with cable channels along the case's edge for tidy cable management.
-
Vibration-Dampened HDD Cage: The sturdy HDD cage design includes vibration-dampened trays.
-
Tool-Less Top-Latching Panels: Quick and tool-less access to the case is facilitated with top-latching panels, reducing the risk of accidental drops.
-
Bridgeless Expansion Slots: Bridgeless expansion slots ensure obstruction-free connections for simplified installation and hookup.
-
Ventilated PSU Shroud: The PSU shroud is ventilated and features a two-part removable cover.
-
Effortless Cleanliness: High airflow nylon filters on the front, top, and base, with full PSU coverage and convenient front access, ensure easy cleaning.
-
Cable Routing Ease: Thirteen pass-through holes with ten rubber grommets and two removable covers make cable routing clean, regardless of motherboard size.
-
Effective Cable Management: A detachable PSU cable shield and integrated cable guides with Velcro straps simplify cable management behind the board.
- New chassis design opens up to fully expose the case interior
- Anodized aluminum front panel with reversible dual-handed hinges
- Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout
Specification,
-
3.5"/2.5" Universal drive brackets6 + 2 included, 18 positions total
-
Dedicated 2.5" drive brackets2 included, 5 positions total
-
5.25” drive mounts2
-
Expansion slots9 + 3
-
Front ports1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button
-
Total fan mounts11 x 120 mm or 9 x 140 mm
-
Front fan4 x 120 mm or 3 x 140 mm, (2 x Dynamic X2 GP-14 included)
-
Top fan4 x 120 mm or 3 x 140 mm
-
Rear fan1 x 120/140 mm, (1 x Dynamic X2 GP-14 included)
-
Bottom fan2 x 120/140 mm
-
Dust filtersTop, 2 x Front, Bottom + PSU
-
Fixed velcro strapsYes
-
Cable routing grommetsYes
-
Captive thumbscrewsHDD brackets, SSD brackets, PSU bracket
-
Left side panelIndustrial sound-damped steel or Tempered Glass
-
Right side panelIndustrial sound-damped steel
