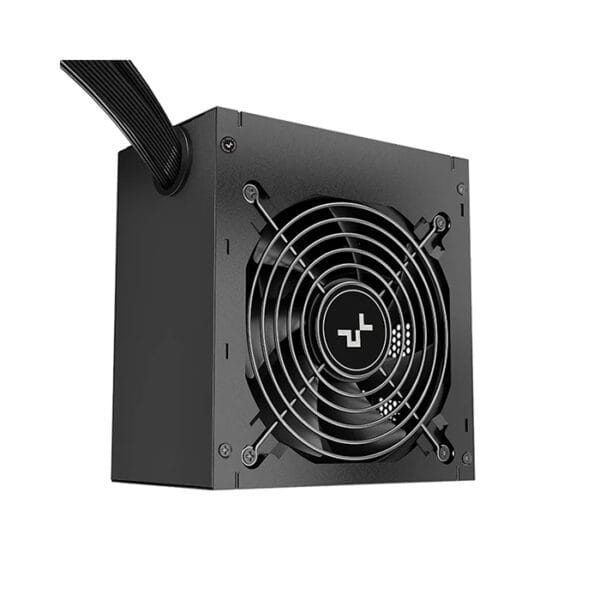

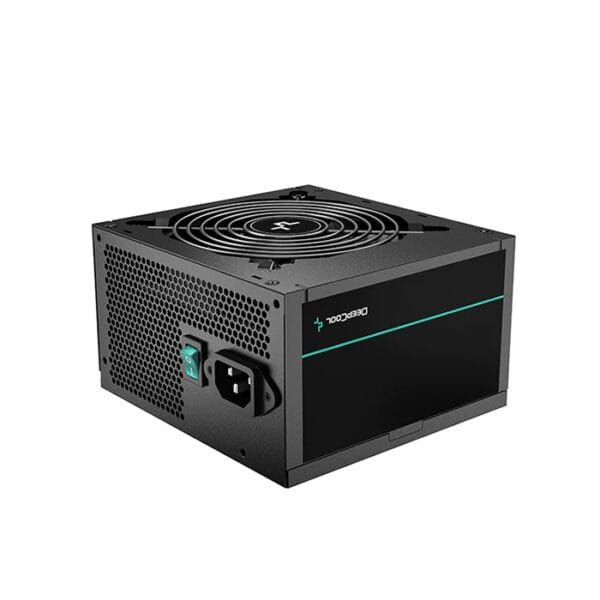

DeepCool PM850D 80 PLUS Gold 850W Non-Modular 80 PLUS Gold Power Supply
DeepCool PM850D 80 PLUS Gold 850W Non-Modular 80 PLUS Gold Power Supply
Couldn't load pickup availability
80 PLUS GOLD Certified Efficiency
Assuring a minimum efficiency of 90% or higher under typical loads, ensuring dependable power delivery with minimal wastage.
Top-Notch Quality Topology
Designed for robust power performance and minimal signal interference, the PM-D series PSU adopts a full-bridge LLC topology with DC-DC conversion, complemented by Japanese bulk capacitors to guarantee exceptional reliability.
Crafted to Specification
Crafted to meet contemporary power supply design standards, each PM-D power supply adheres to Intel PSU guidelines that enable instant-on power from sleep or standby modes, ensuring consistent voltage stability.
Abundant Power Reserves
Equipped with three independent PCIe outputs and two EPS connectors, the PM850D delivers continuous high-quality power to support the latest high-end graphics cards and motherboards, elevating your gaming performance.
Efficiency Across the Board
In full compliance with the 2014 ErP regulations for energy savings and the IEC 62368-1 safety standards, the PM-D series power supplies prioritize efficiency and safety in every aspect.
Specification,
| Type | ATX12V V2.4 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| 80PLUS Certifications | GOLD |
| Fan Size | 120mm |
| Fan Bearing | Hypro Bearing |
| Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
| Capacitors | Japanese Bulk Capacitor |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms(75% Load) |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP |
| Operation Temperature | 0-40°C |
| Regulatory | TUV/cTUVus/CCC/CE/FCC/UKCA/EAC/BIS |
| Erp Regulation | ErP(2014) |
| MTBF | 100,000 Hours |
