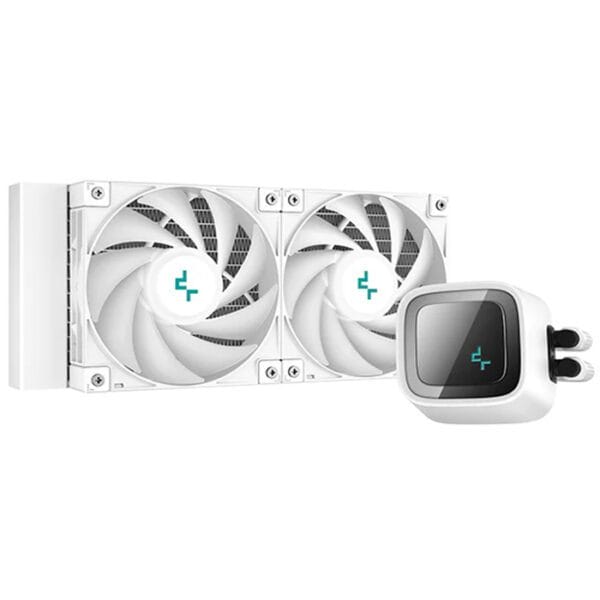

DeepCool LS520 RGB Liquid CPU Cooler
DeepCool LS520 RGB Liquid CPU Cooler
Couldn't load pickup availability
A Fresh Dawn for DeepCool
Elevating performance, our 4th Generation high-performance water pump lies at the heart of innovation, pushing the boundaries of cooling prowess. Highlights include:
Efficiency and Serenity United

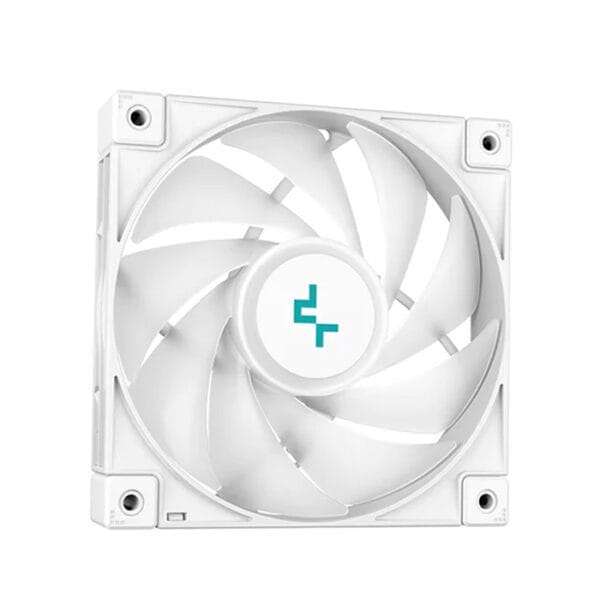

Indulge in superior cooling and exceptional silent operation, courtesy of the accompanying FC120 fans. These fans excel in static pressure, focused airflow, and employ fluid dynamic bearings for a whisper-quiet experience.
Streamlined and Safe
Experience swift and secure installation with our revamped mounting brackets, ensuring a steadfast attachment on both Intel and AMD platforms.
Craft Your Aesthetic
Introducing the new infinity mirror pump face design, emanating twin light loops for an entrancing visual spectacle. This design also allows flexible orientation, featuring an independently rotatable logo plate. For those seeking complete personalization, we offer an extra blank plate for your unique touch.

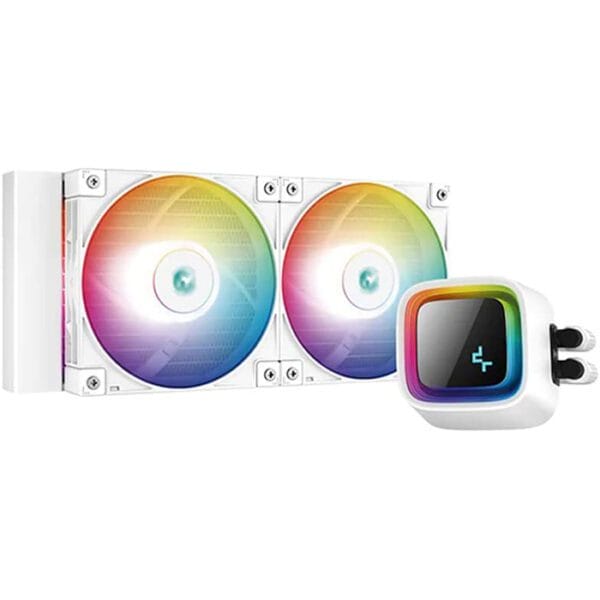

Harmonize Your Setup with RGB Brilliance
Synchronize color schemes through supported RGB software and motherboard coordination, gaining control over diverse lighting effects. A default Auto-RGB rainbow effect activates when no controller is detected, providing limited functionality on motherboards without 5V A-RGB headers.
Specification
| Net Weight | 1305 g |

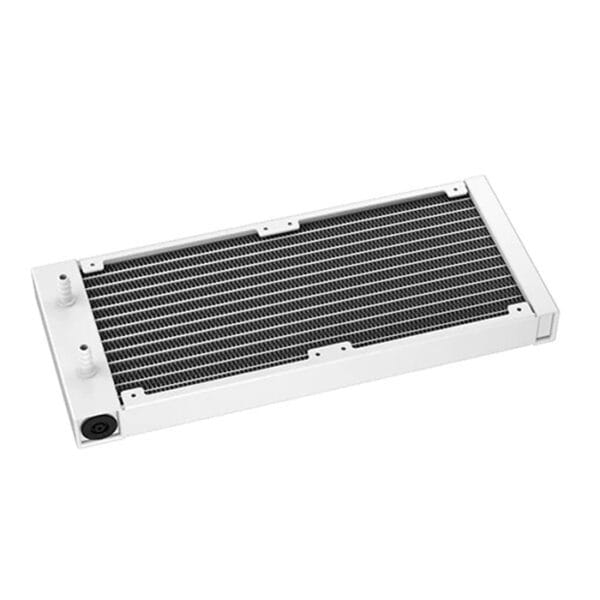

| Radiator Dimensions | 282×120×27 mm |
| Radiator Material | Aluminum |
| Tube length | 410 mm |
| Pump Dimensions | 86×74×57 mm |
| Pump Speed | 3100 RPM±10% |
| Pump Noise | 19 dB(A) |
| Pump Connector | 3-pin |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.47 A |
| Pump Power Consumption | 5.64 W |
| Fan Dimensions | 120×120×25 mm |
| Fan Speed | 500~2250 RPM±10% |
| Fan Airflow | 85.85 CFM |
| Fan Air Pressure | 3.27 mmAq |
| Fan Noise | ≤32.9 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.29 A |
| Fan Power Consumption | 3.48 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 2.2 W（PUMP）/ 3.6 W（FAN×2） |
| EAN | 6933412727651 |
| P/N | R-LS520-WHAMNT-G-1 |
