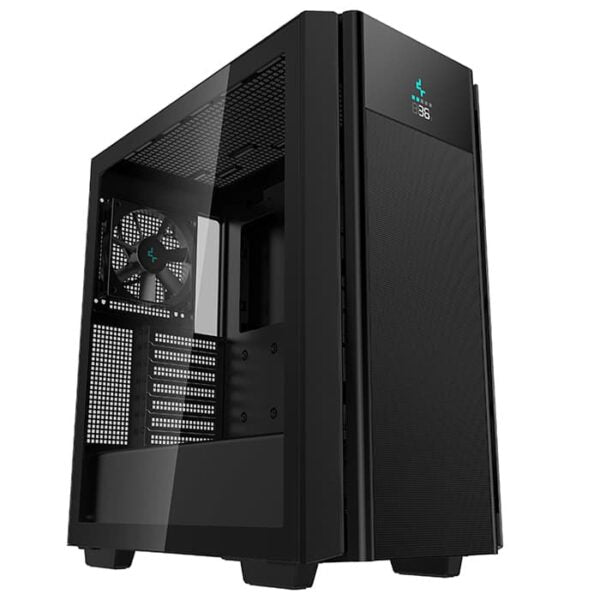

DeepCool CH510 Mesh Digital (E-ATX) Mid Tower Cabinet (Black)
DeepCool CH510 Mesh Digital (E-ATX) Mid Tower Cabinet (Black)
Couldn't load pickup availability
Introducing the DeepCool CH510 MESH DIGITAL, a mid-tower ATX case designed for exceptional airflow, remarkable flexibility, and broad component compatibility to suit any system build. This case is equipped with a programmable display screen upfront, ensuring critical internal system temperature monitoring.
Optimal Airflow The CH510 MESH DIGITAL is the perfect choice for builders at every skill level, offering a spacious interior and robust features tailored for the contemporary PC gamer. Its generously sized metal mesh front panel ensures an abundance of airflow, enhancing system cooling to the fullest.

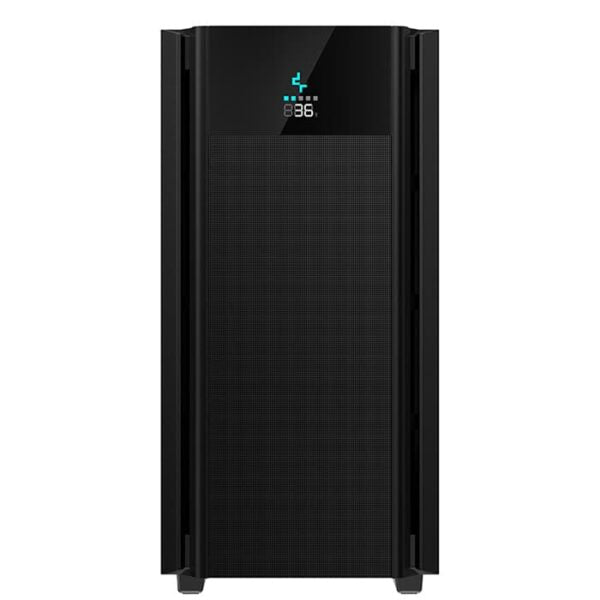

Integrated Information Display Access essential system data up close with the built-in digital display on the front panel. Keep an eye on crucial CPU and GPU temperature statistics for an informed and responsive experience.
Ample Cooling Potential For substantial power demands, the CH510 MESH DIGITAL provides a multitude of mounting options to accommodate extensive cooling solutions. Install large radiators, up to 360mm in size, either at the front or top, or configure your case with up to nine 120mm fans or five 140mm fans to ensure a high-flow airflow solution.

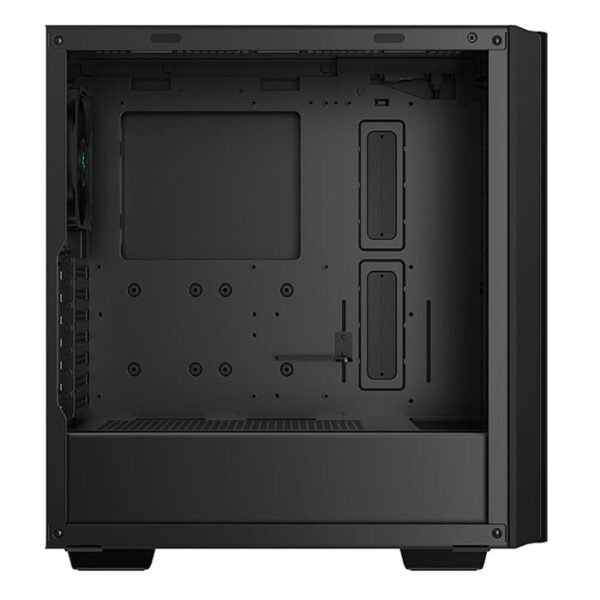

Spacious and Versatile Interior Unlock the potential of your system with adaptable configurations that cater to diverse setup requirements. The CH510 offers room for large GPUs measuring up to 380mm in length and CPU coolers up to 175mm in height, all within a well-balanced form factor.
Specifications,
| Product Dimensions | 455×230×470mm(L×W×H) |
| Net Weight | 7.5Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | Mini-ITX / Micro-ATX / ATX / E-ATX |
| Front I/O Ports | USB3.0×1、Tpye-c×1、Audio×1 |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2+1 |
| Expansion Slots | 7 Slots |
| Pre-Installed Fans | Rear: 1×120mm |
| Fan Support | Front: 3×120 / 2×140mm Top: 3×120 / 2×140mm Rear: 1×120 / 1×140mm PSU Shrouded: 2×120mm |
| Radiator Support | Front: 120/140/240/280/360mm Top: 120/140/240/280/360mm Rear: 120/140mm |
| CPU Cooler Height Limit | 175mm |
| GPU Length Limit | 380mm |
| Power Supply Type | ATX PS2 (maximum length: 170mm) |
| EAN Code | 6933412775072 |
| PN Code | R-CH510-BKNSE1-G-1 |
