CORSAIR VENGEANCE RGB RS 32GB (2x16GB) DDR4-3600 CL18 Black RAM
CORSAIR VENGEANCE RGB RS 32GB (2x16GB) DDR4-3600 CL18 Black RAM
Couldn't load pickup availability

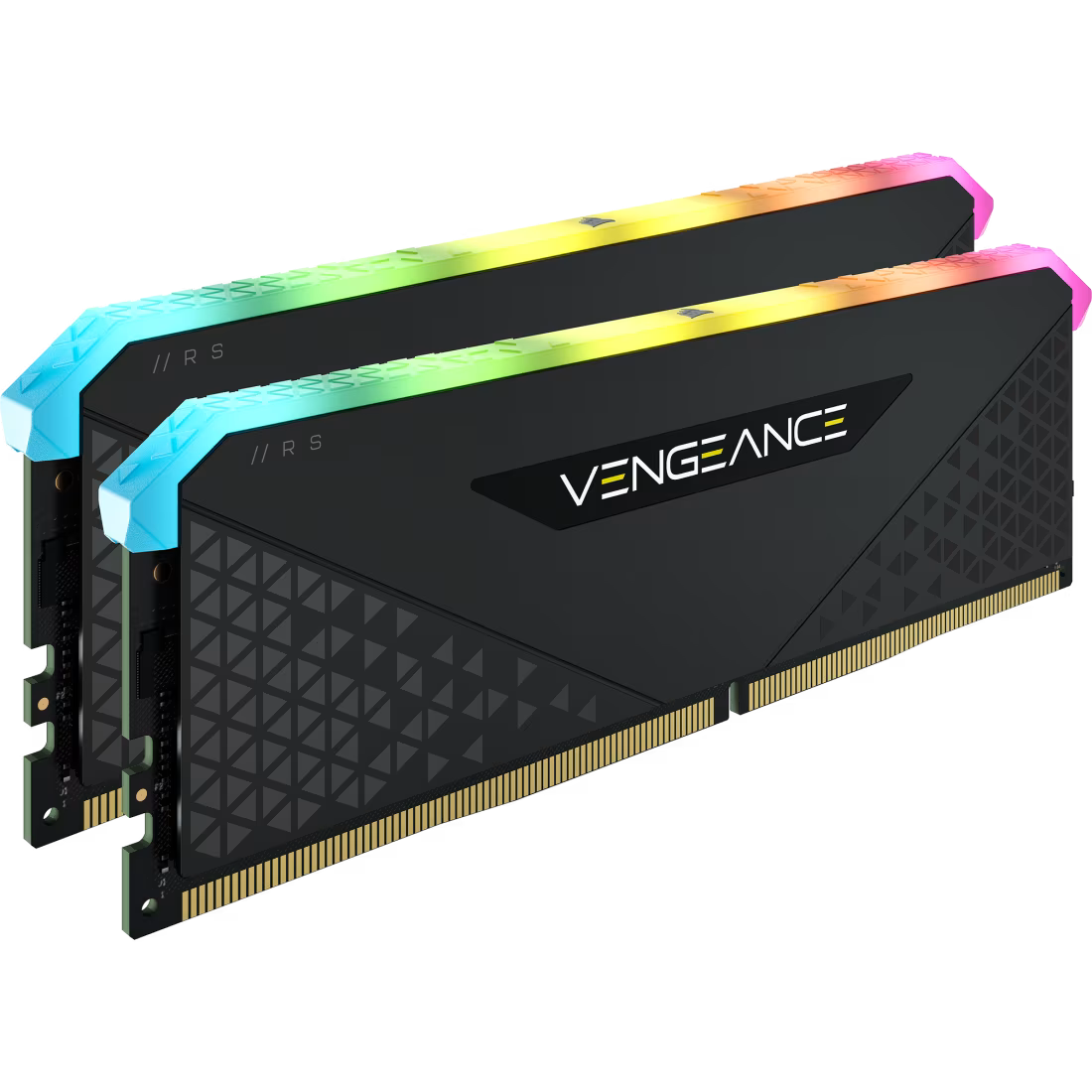

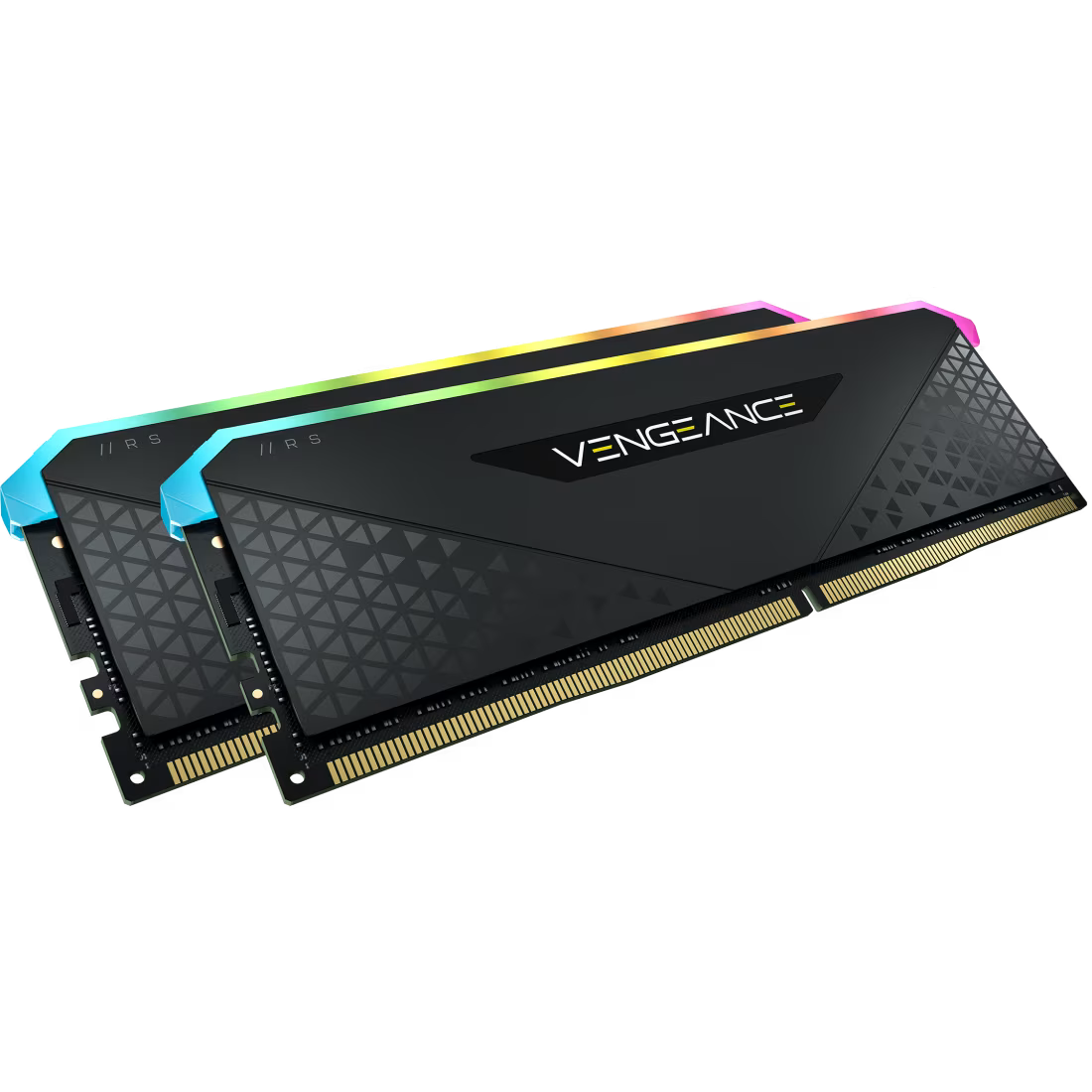

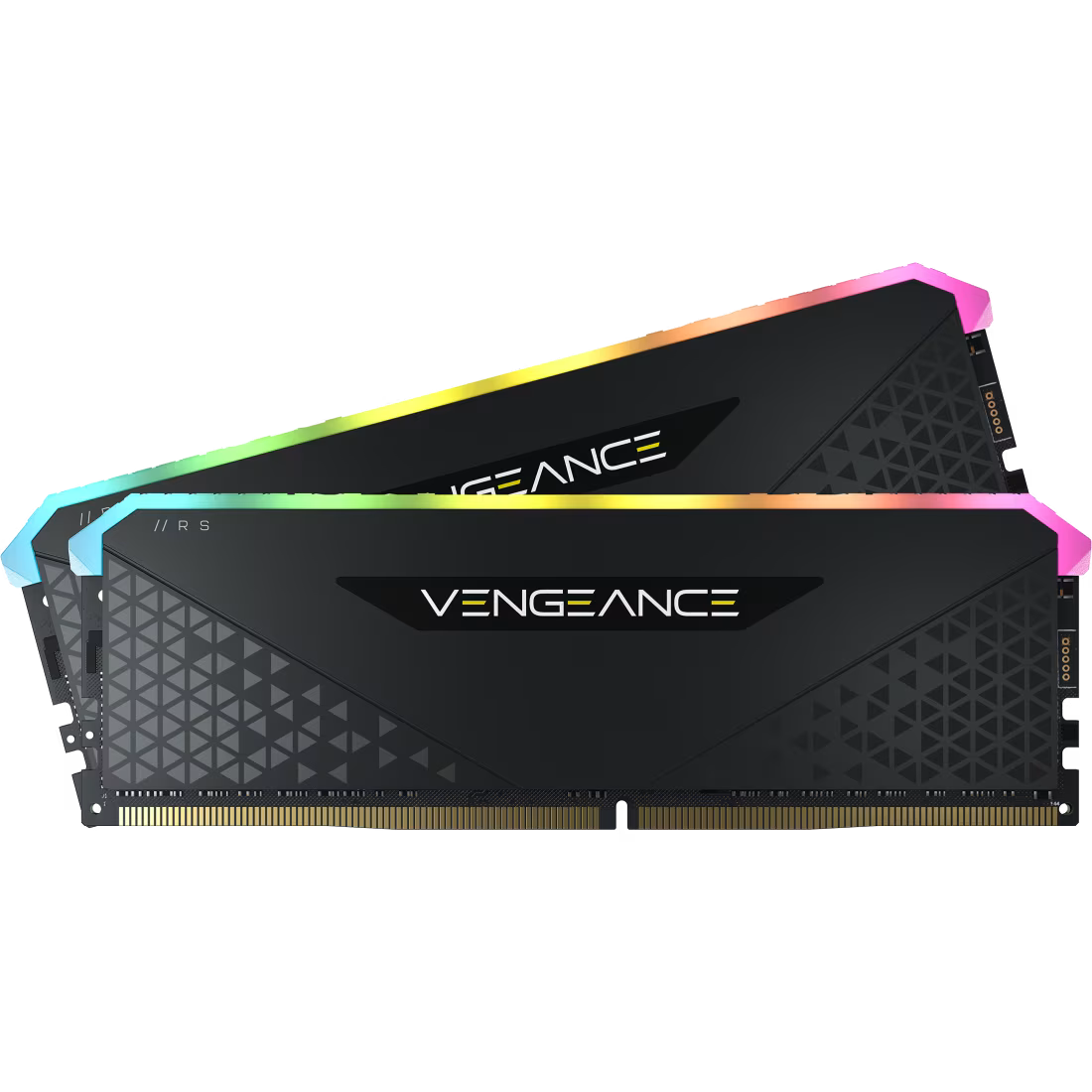

CORSAIR VENGEANCE RGB RS 32GB DDR4 memory delivers high-performance desktop memory in a 2 × 16GB configuration, with tested speeds of up to 3600MHz and tested timings of 18-22-22-42 at 1.35V.
The exact kit features dynamic RGB lighting with six individually addressable RGB LEDs per module, a black anodized aluminum heatspreader, custom high-performance PCB and carefully screened memory chips. It supports Intel XMP 2.0 and CORSAIR iCUE software and is optimized for compatible Intel and AMD platforms.
Key Features
- 32GB total capacity
- 2 × 16GB DDR4 modules
- Up to 3600MHz tested speed
- CL18
- Tested timings: 18-22-22-42
- Tested voltage: 1.35V
- Dynamic multi-zone RGB lighting
- Six individually addressable RGB LEDs
- CORSAIR iCUE support
- Intel XMP 2.0 support
- Black anodized aluminum heatspreader
- Custom high-performance PCB
- Carefully screened memory chips
- 288-pin UDIMM
- Compatible with selected Intel and AMD platforms
- Limited Lifetime Warranty
Complete Technical Specifications
| Specification | Details |
|---|---|
| Brand | CORSAIR |
| Model | VENGEANCE RGB RS 32GB (2 x 16GB) DDR4 DRAM Up To 3600MHz C18 |
| Series | VENGEANCE RGB RS |
| Product Type | Desktop DDR4 RGB RAM |
| Capacity | 32GB (2 × 16GB) |
| Memory Type | DDR4 |
| Memory Speed | Up to 3600MHz |
| Tested Speed | 3600MHz |
| CAS Latency | CL18 |
| Tested Latency | 18-22-22-42 |
| Tested Voltage | 1.35V |
| SPD Voltage | 1.20V |
| Speed Rating | PC4-28800 (3600MHz) |
| SPD Speed | 2133MHz |
| SPD Latency | 15-15-15-36 |
| Performance Profile | XMP 2.0 |
| Package Memory Format | UDIMM |
| Memory Pins | 288-pin |
| Memory Configuration | 2 × 16GB |
| RGB Lighting | Yes |
| RGB Lighting Type | Dynamic MultiZone |
| RGB LEDs | Six individually addressable LEDs per module |
| iCUE Support | Yes |
| Heat Spreader | Anodized Aluminum |
| Cooling | Aluminum heatspreader |
| Fan Included | No |
| Memory Color | Black |
| Memory Compatibility | Intel 300 Series, Intel 400 Series, Intel 500 Series, Intel 600 Series, AMD 400 Series, AMD 500 Series |
| Memory Detail Compatibility | Intel 300 Series, Intel 400 Series, Intel 500 Series, Intel 600 Series, AMD 400 Series, AMD 500 Series |
| PCB | Custom high-performance PCB |
| Memory Chips | Carefully screened |
| Form Factor | UDIMM |
| Weight | 0.15 kg |
| SKU / P/N | CMG32GX4M2D3600C18 |
| Barcode/EAN | Not Available |
| Warranty | Limited Lifetime Warranty |
All technical specifications above are verified against the exact CORSAIR manufacturer page.
Memory Capacity
The exact kit contains 32GB total capacity, supplied as 2 × 16GB DDR4 modules.
Memory Speed
The exact SKU is tested for speeds of up to 3600MHz. CORSAIR notes that achieving the tested maximum speed requires overclocking and/or PC BIOS adjustments and depends on system components, including the motherboard and CPU.
Memory Timing
The exact kit has tested timings of 18-22-22-42 at 1.35V. The SPD profile is 2133MHz with 15-15-15-36 SPD latency at 1.20V.
RGB Lighting
The VENGEANCE RGB RS features dynamic multi-zone RGB lighting with six individually addressable RGB LEDs per module. The lighting is housed in a panoramic light pipe for visibility from multiple angles.
Intel XMP
The exact RAM supports Intel XMP 2.0 for simplified performance configuration on compatible systems.
Cooling
The modules feature a black anodized aluminum heatspreader designed to conduct heat away from the memory during operation and overclocking.
PCB and Memory Chips
CORSAIR specifies a custom high-performance PCB and carefully screened memory chips to deliver high bandwidth and tight response times.
Compatibility
- Intel 300 Series
- Intel 400 Series
- Intel 500 Series
- Intel 600 Series
- AMD 400 Series
- AMD 500 Series
- DDR4-compatible desktop systems
- 288-pin UDIMM slots
- Intel XMP 2.0 supported
Maximum 3600MHz performance depends on the CPU, motherboard, BIOS and other system components.
Package Includes
- 2 × 16GB CORSAIR VENGEANCE RGB RS DDR4 RAM modules
- Total capacity: 32GB
