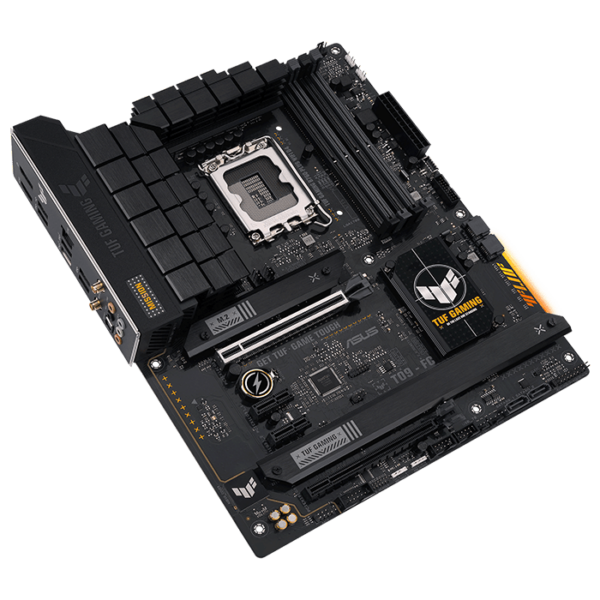

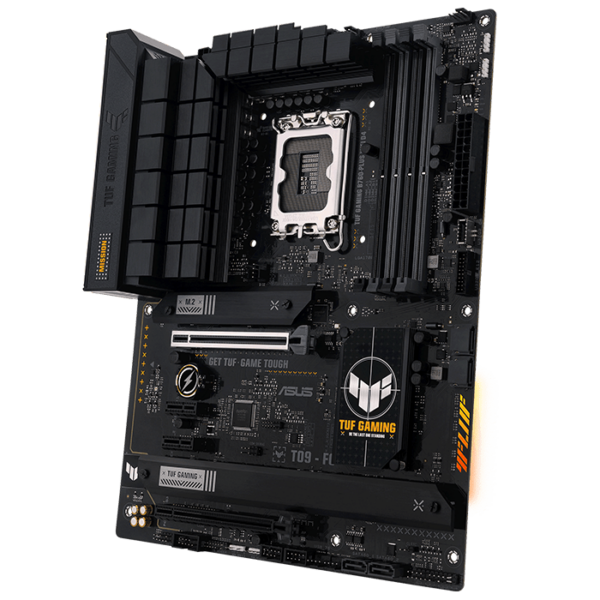

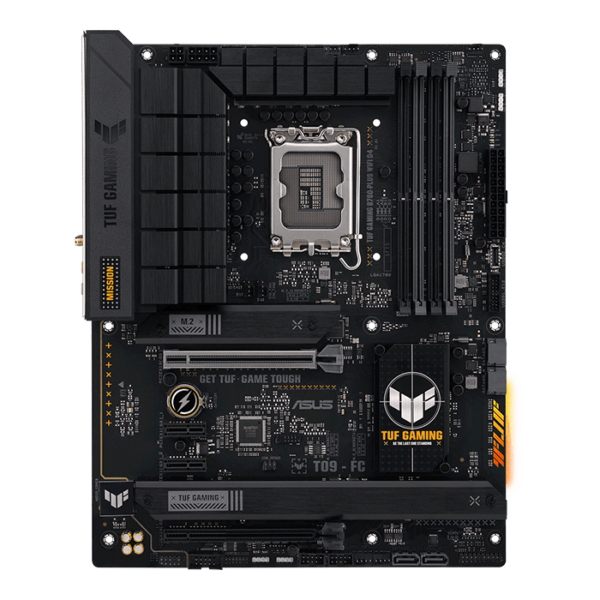

ASUS TUF GAMING B760-PLUS WIFI D4 Intel B760 LGA 1700 ATX Gaming Motherboard
ASUS TUF GAMING B760-PLUS WIFI D4 Intel B760 LGA 1700 ATX Gaming Motherboard
Regular price
Dhs. 841.00 AED
Regular price
Dhs. 1,030.00 AED
Sale price
Dhs. 841.00 AED
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- The ASUS motherboard is designed to support latest Intel Socket LGA 1700 for 13th Gen and 12th Gen Intel Core processors, Pentium Gold and Celeron Processors.
- The motherboard is PCIe 5.0 Ready supporting up to 128GB DDR4 5333+MHz (OC) of memory and Intel Turbo Boost Technology. The DDR4 ASUS motherboard support next gen PCIe 5.0 M.2 slots making it future proof.
- Enjoy extended connectivity with the next-gen technology of PCIe 5.0, WIFI 6, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 2 Type-C and 3x M.2 slots.
- Features the most comprehensive cooling options ever that are configurable via AI Cooling II or the UEFI BIOS. It employs VRM heatsink, M.2 heatsink, PCH heatsink and hybrid fan headers.
- The motherboard comes with DIY Friendly features. The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues. It is also having a handful features like ESD Guards and LANGuard.
Specification,
| Model | ASUS TUF Gaming B760-PLUS WIFI Motherboard |
| Part Number | 90MB1DF0-M0IAY0 |
| CPU Socket | Intel B760 Chipset |
| CPU Support | Intel 13th Gen and 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel Socket LGA 1700 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/ 4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/ 4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC) /3600(OC)/3466(OC)/3400(OC)/3333(OC)/ 3200/3000/2933/2800/2666/2400/2133 ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| On-Board Graphics support | 1 x DisplayPort 1.4 1 x HDMI port 2.1 |
| Expansion Slot |
Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B760 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots |
| Wireless & Bluetooth | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Bluetooth v5.2 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Storage |
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s port |
| Audio |
Realtek 7.1 Surround Sound High-Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio Cover |
| USB Ports |
Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 ports (3 x Type-A) 1 x USB 2.0 port (1 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |

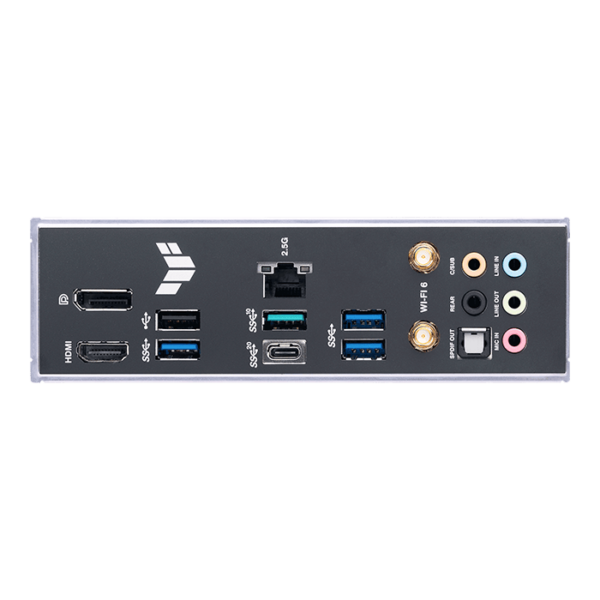

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 ports (3 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
| Internal I/O ports |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connectors 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header |
| Accessories |
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x TUF GAMING sticker 2 x M.2 Rubber Packages 1 x Screw package for M.2 SSD Documentation1 x TUF certification card 1 x User guide |
| Operating System | Windows 11 64-bit Windows 10 64-bit |
| Dimensions | 30.5 cm x 24.4 cm ATX Form Factor |
| Warranty | 3 Years of Brand Warranty |
| Country of Origin | China |
