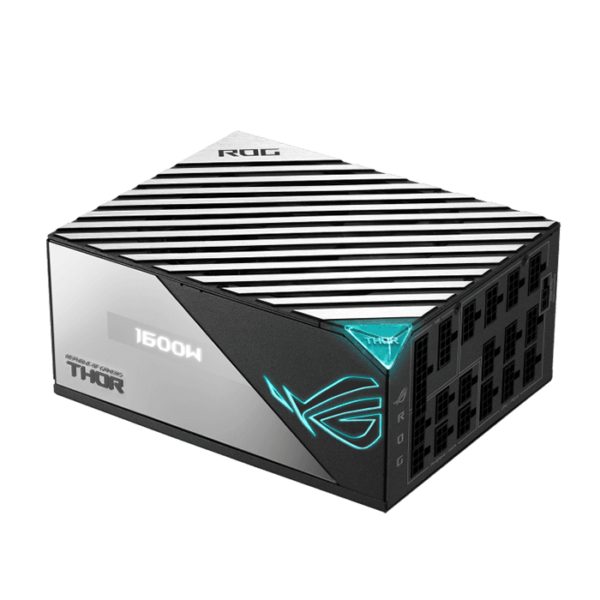

Asus ROG Thor 1600W ATX Power Supply Unit, With Aura Sync & OLED Display, 80 Plus Titanium Certification, Modular
Asus ROG Thor 1600W ATX Power Supply Unit, With Aura Sync & OLED Display, 80 Plus Titanium Certification, Modular
Couldn't load pickup availability
THE PINNACLE OF SILENT 1600W POWER SUPPLY
Representing the zenith of Thor's capabilities, this iteration features a reengineered core that brings forth heightened power efficiency, enhanced cooling, and diminished noise to dominate colossal setups that conquer all in their path.
UNLEASHING GAN MOSFETS
Harnessing the might of Gallium Nitride MOSFETs, Thor derives its formidable power. With significantly reduced switching losses and enhanced efficiency compared to conventional silicon transistors, GaN FETs empower the 1600W Thor to wield substantial currents without unnecessary wastage.
PRECISION THROUGH DIGITAL POWER CONTROL
An integrated digital controller facilitates meticulous management of the GaN power array, enabling instantaneous response to fluctuations in load.
80 PLUS TITANIUM CERTIFICATION
Elevated by low-ESR Japanese capacitors, Thor attains elevated efficiency while curbing heat, affirming its steadfast capability to power your build consistently over the years.
INTEGRATED ROG HEATSINKS
ROG heatsinks are seamlessly integrated, boasting twice the volume of conventional designs. This achievement leads to a remarkable 20% reduction in temperatures within the PSU, ultimately prolonging the lifespan of components.
Specification,
| Dimensions | 190 x 150 x 86 mm |
| Efficiency |
80Plus Titanium
|
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage |
+3.3V +5V +12V -12V +5Vsb
|
| Maximum Load |
20A 20A 133.3A 0.3A 3A
|
| Combined Load | 100W 100W 1600W 3.6W 15W |
| Total Output | 1600W |

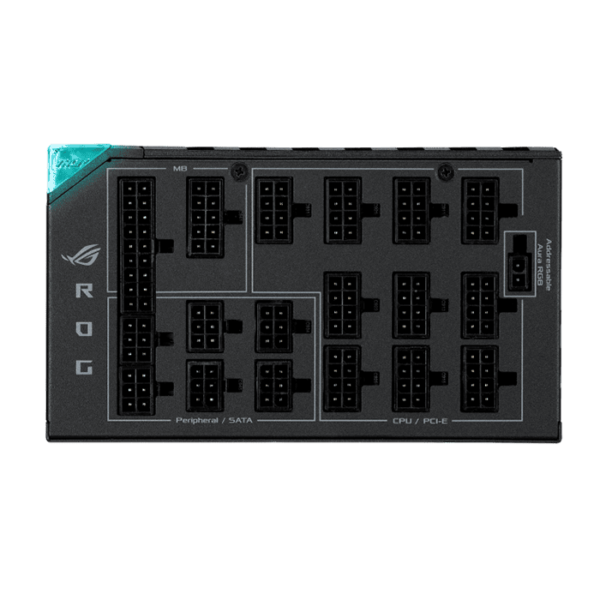

| Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 PCI-E 6+2-pin x 10 SATA x 12 PERIPHERAL x 6 |
| Weight | 2.69kg |
| AURA SYNC | ARGB |
